3 Install the:
a Heat sink
b Heat sink fan
c Hard drive and optical drive module
d HDD assembly
e Front bezel
f Side cover
4 Follow the procedure in After working inside your computer.
Power switch
Removing power switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module
3 To remove the power switch:

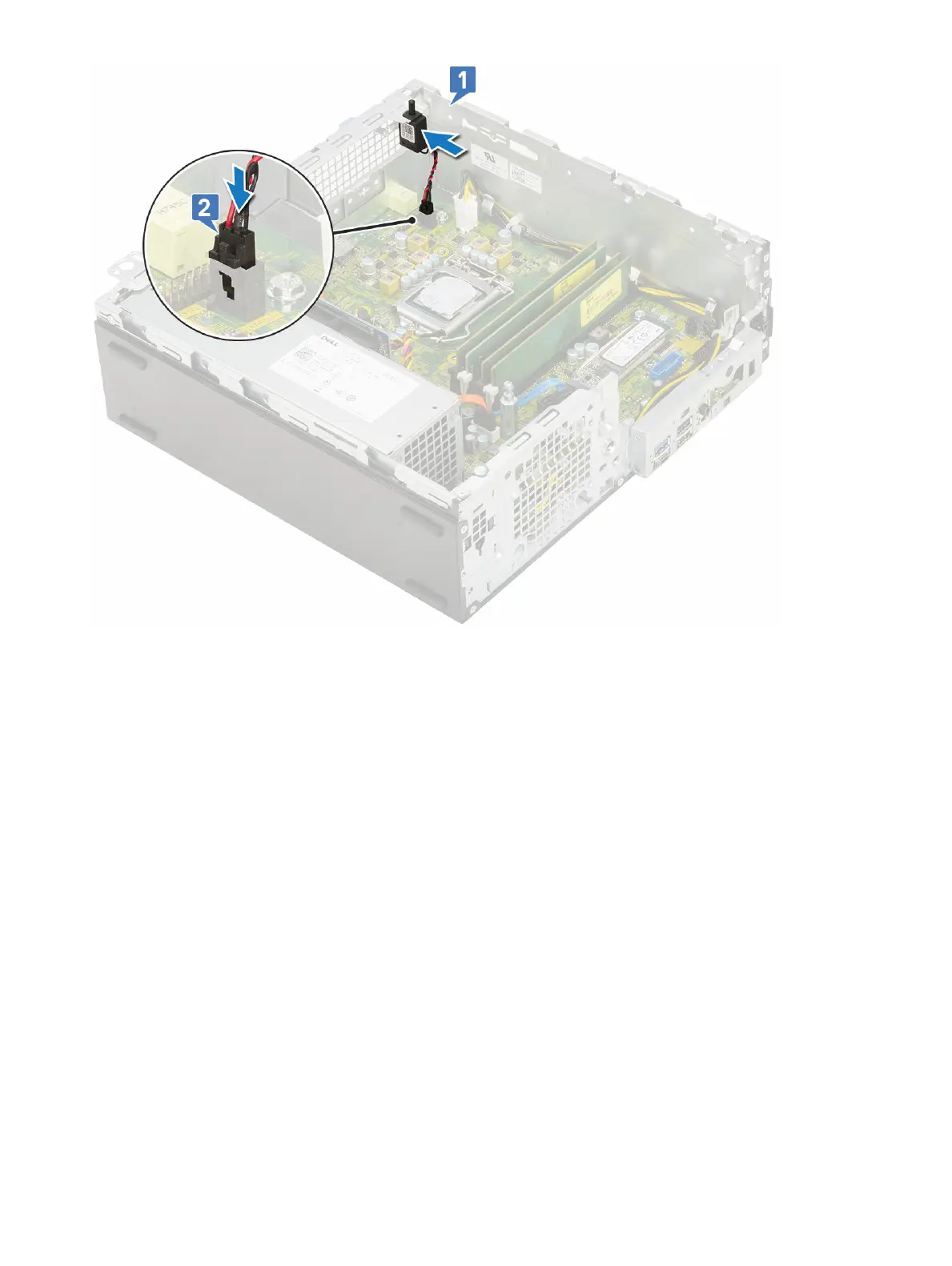

a Disconnect the power switch cable from the system board [1].
b Press the power switch retention tabs and pull the power switch out from the system [2] [3].
