Dell W7M79 - Installing the Speaker

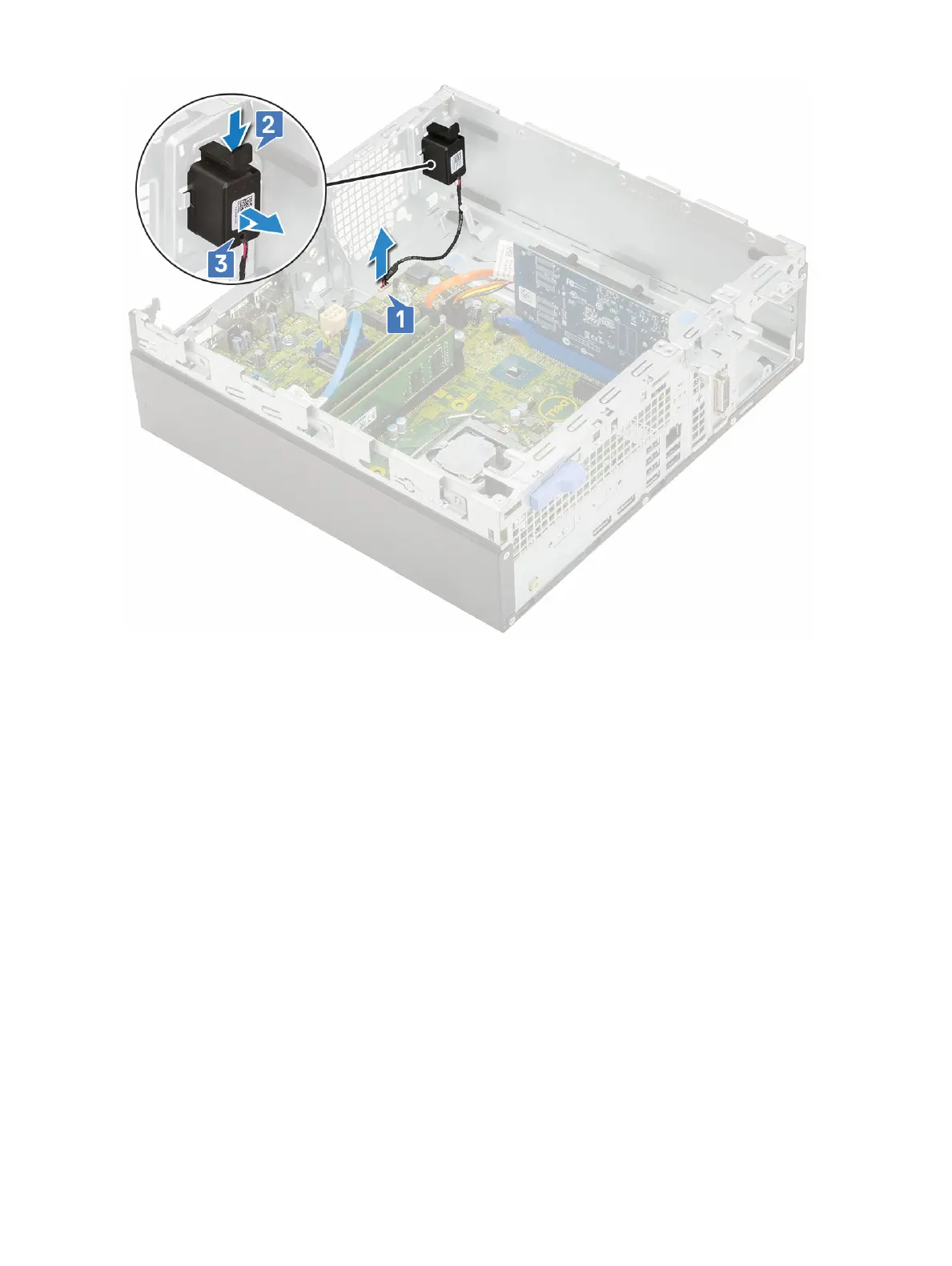

b Press the release tab [2] and pull the speaker out from the system [3].
Installing the speaker
1 Insert the speaker into the slot on the system chassis and press it until it clicks into place [1, 2].
2 Connect the speaker cable to the connector on the system board [3].
Removing and installing components
61
