Dell XPS 410 User Manual

Power Supply DC Connector Pin Assignments

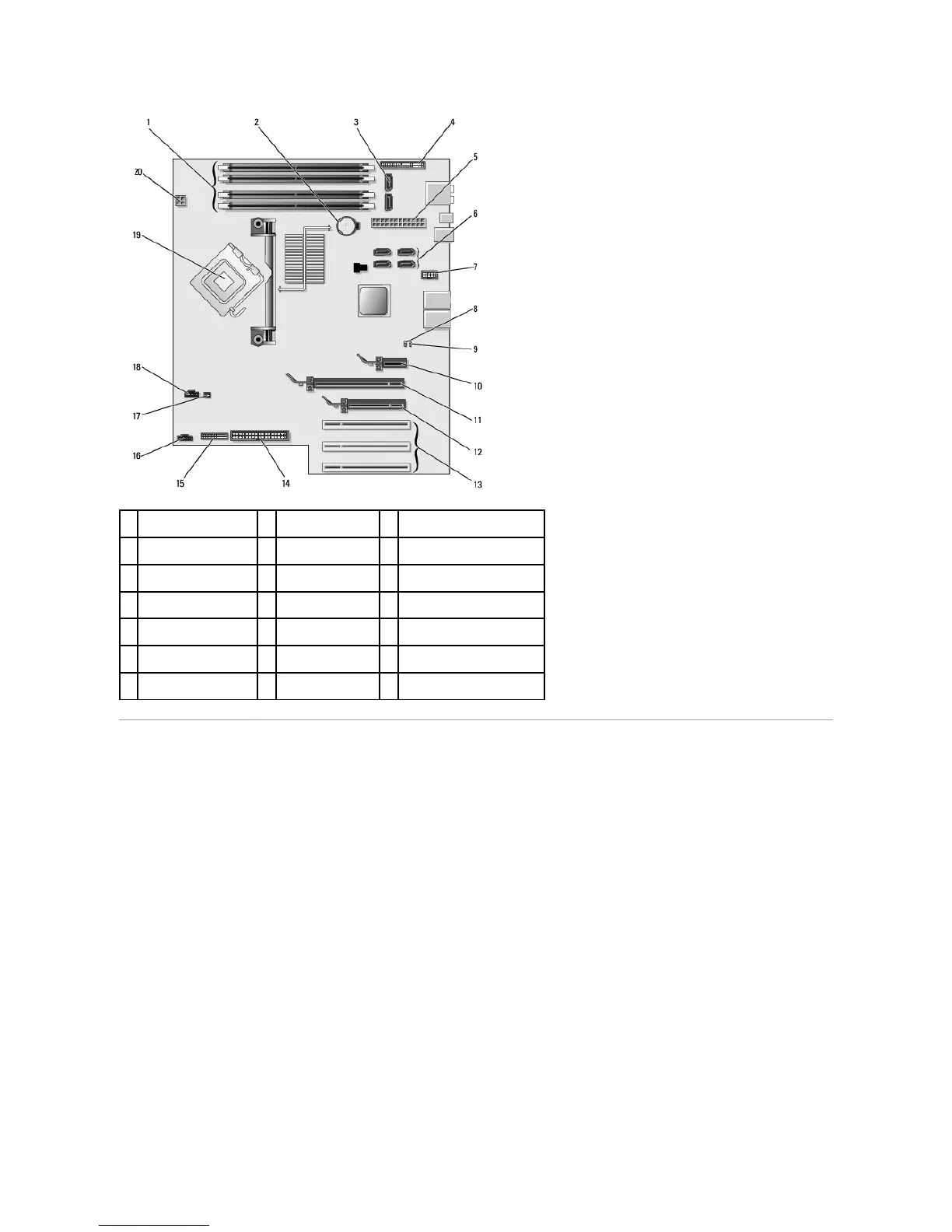

1
memory module
connectors (1, 2, 3, 4)
2
battery socket
(BATTERY)
3
SATA Connectors SATA0,
SATA1
4
front panel I/O
connector
5
main power
connector
6
SATA connectors (4) (SATA2,
SATA3, SATA4, SATA5
7
FlexBay USB connector
8
clear CMOS jumper
(CLRCMOS)
9
password jumper (CLRPSWD)
10
PCI Express x1 card
connector
11
PCI Express x16 card
connector
12
PCI Express x4 card connector
13
PCI card connectors
14
floppy drive
connector (FLOPPY)
15
PS/2 and Serial connector
16
rear fan connector
17
thermal sensor
connector
18
CPU fan connector
19
processorandheatsink
connector
20
processor power
connector


