Removing the LED board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. back cover
b. battery

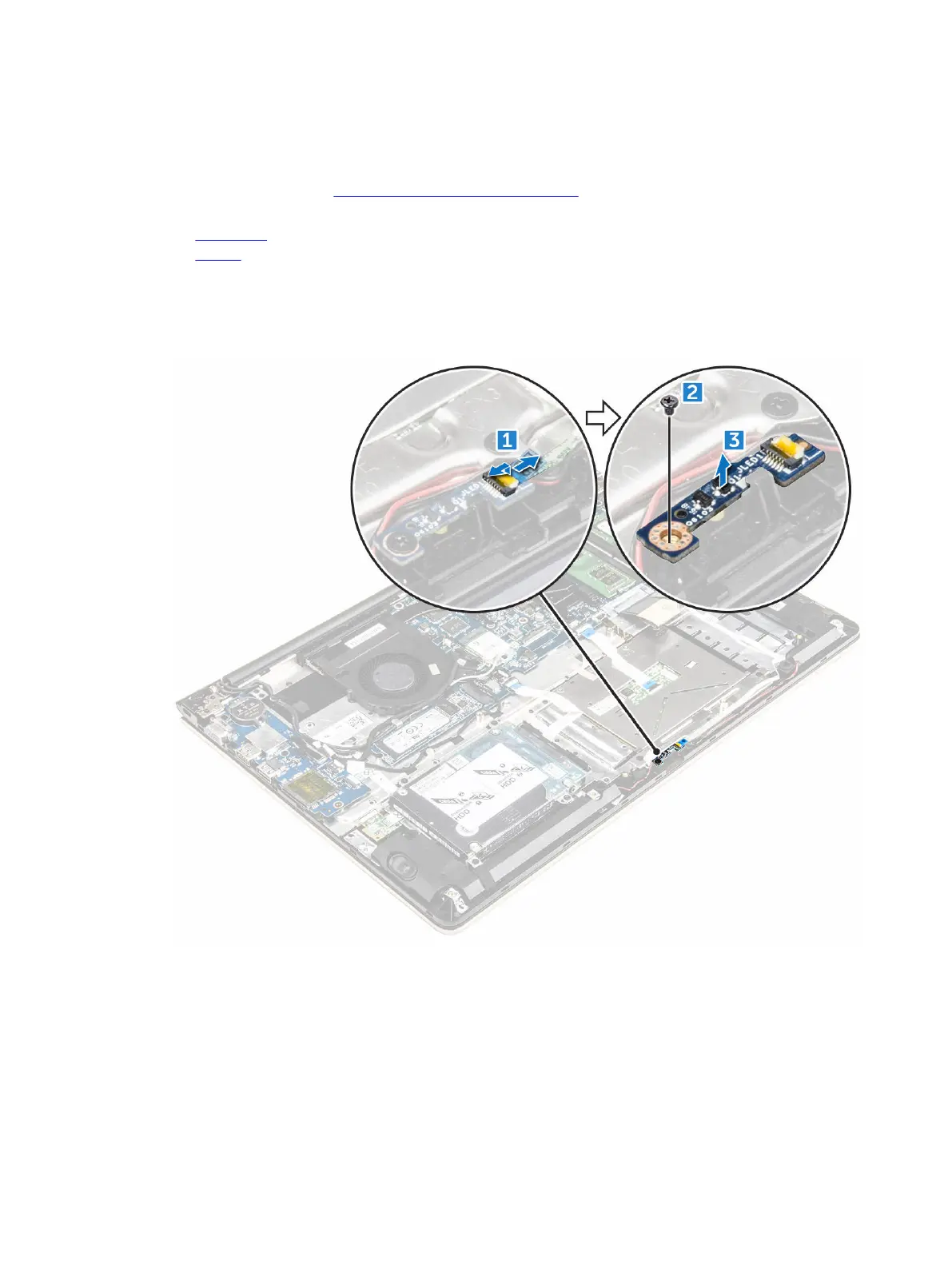

3. To remove the LED board:
a. Lift the tab to disconnect the LED board connector cables from the system board [1].
b. Remove the screw that secures LED board to the computer chassis [2].
c. Remove the LED board from the computer [3].
Installing the LED board
1. Place the LED module into its slot on the computer chassis.
2. Tighten the screw to secure the LED module to the computer chassis.
3. Connect the LED module cables to the computer chassis.
