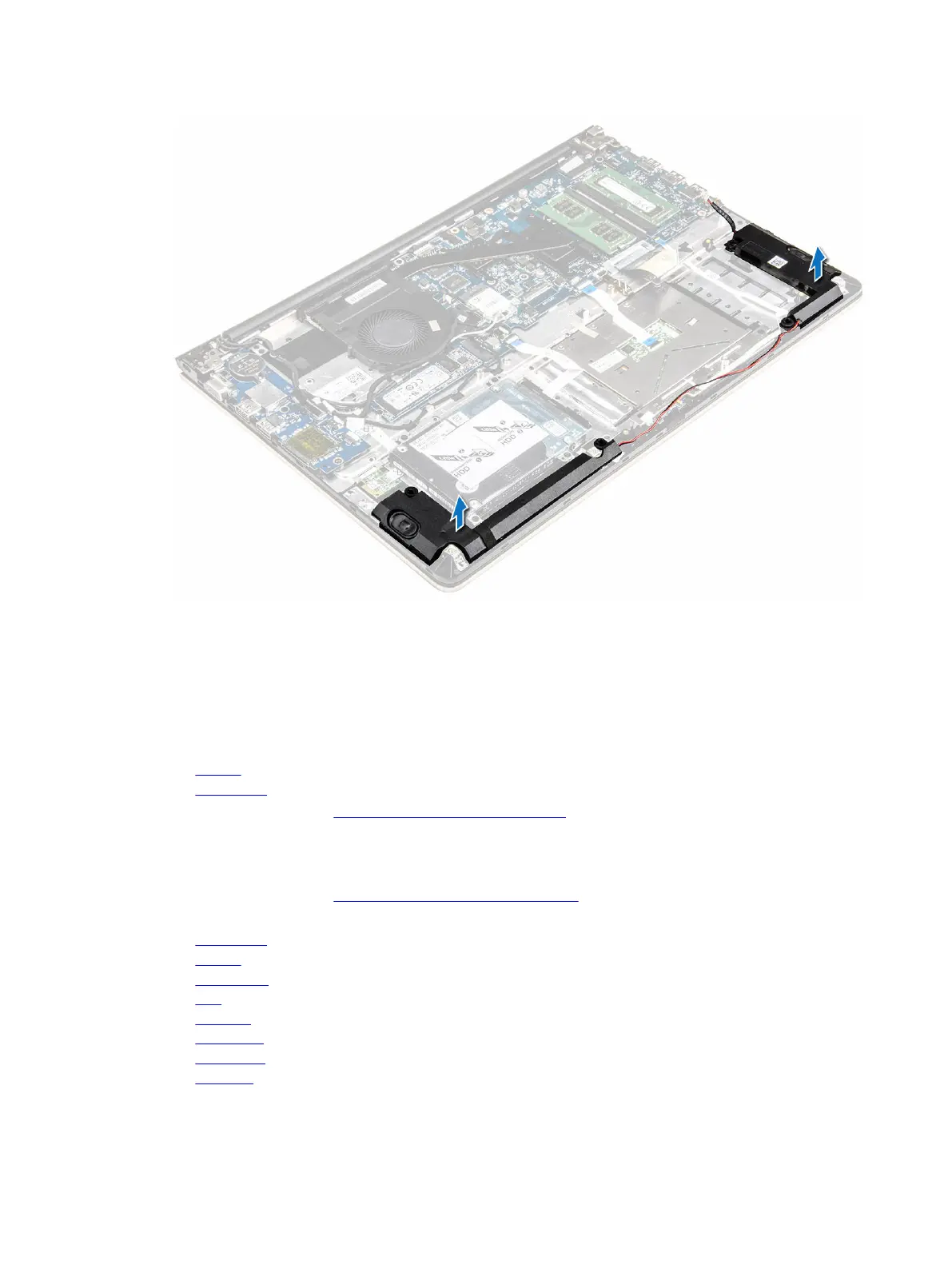

Installing the speakers
1. Insert the speakers into the slot on the computer chassis.
2. Route the speaker cable along the routing channel.
3. Connect the speaker cables to the connectors on the system board and the LED board.
4. Install the:
a. battery
b. back cover
5. Follow the procedure in After working inside your computer
Removing the system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. back cover
b. battery
c. WLAN card
d. SSD
e. memory
f. LED board
g. system fan
h. heat sink
33
