i. display assembly

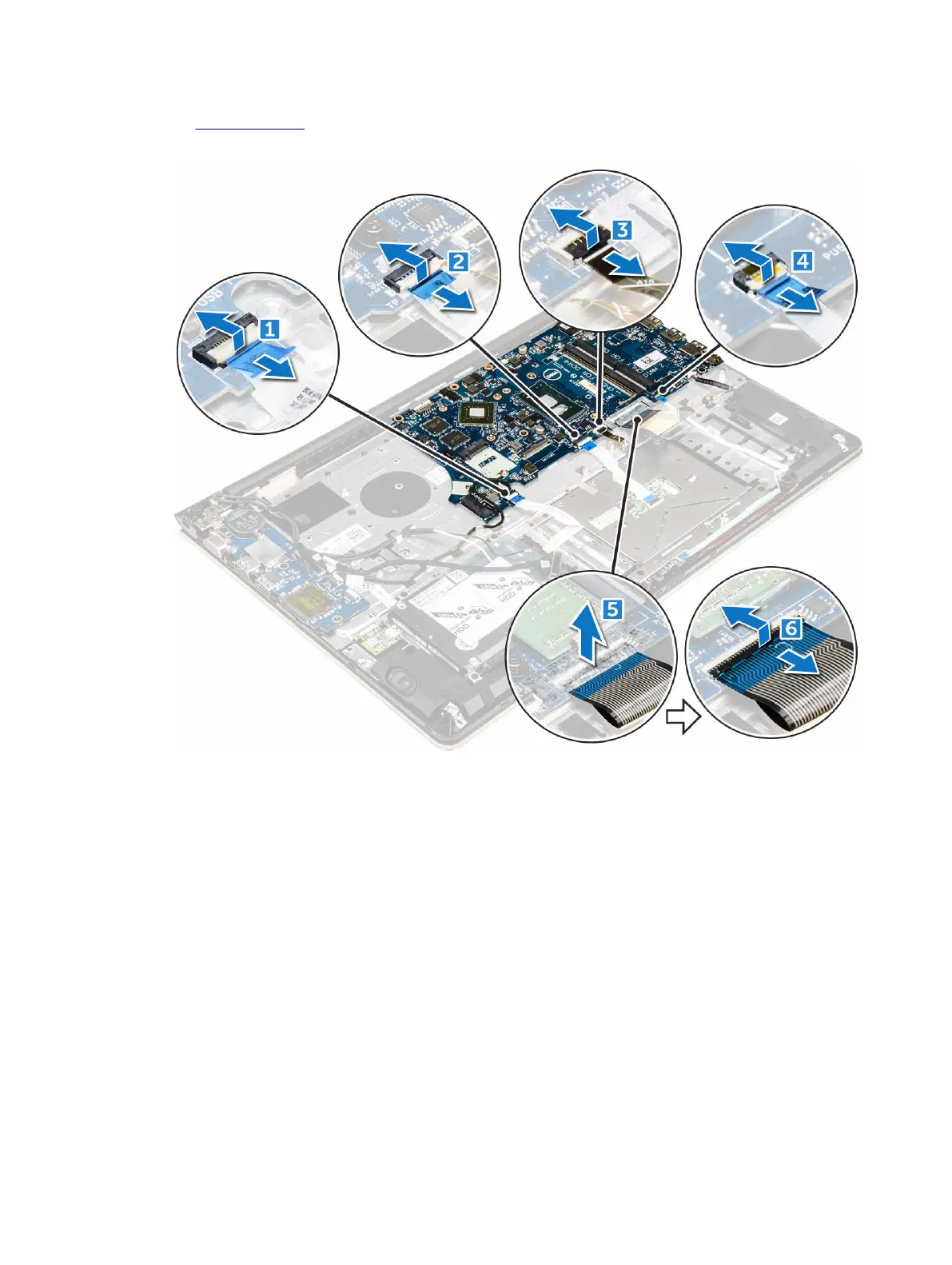

3. Lift the tab [1,2,3,4,6] to disconnect the cables [5] from their connectors on the system board.
4. To remove the system board cables:
a. Disconnect the display power supply cable [1].
b. Lift the tab to disconnect the display connector cable [2].
34
