Chapter 4 Display and Operation|ASDA-B Series
4-28 Revision January 2009

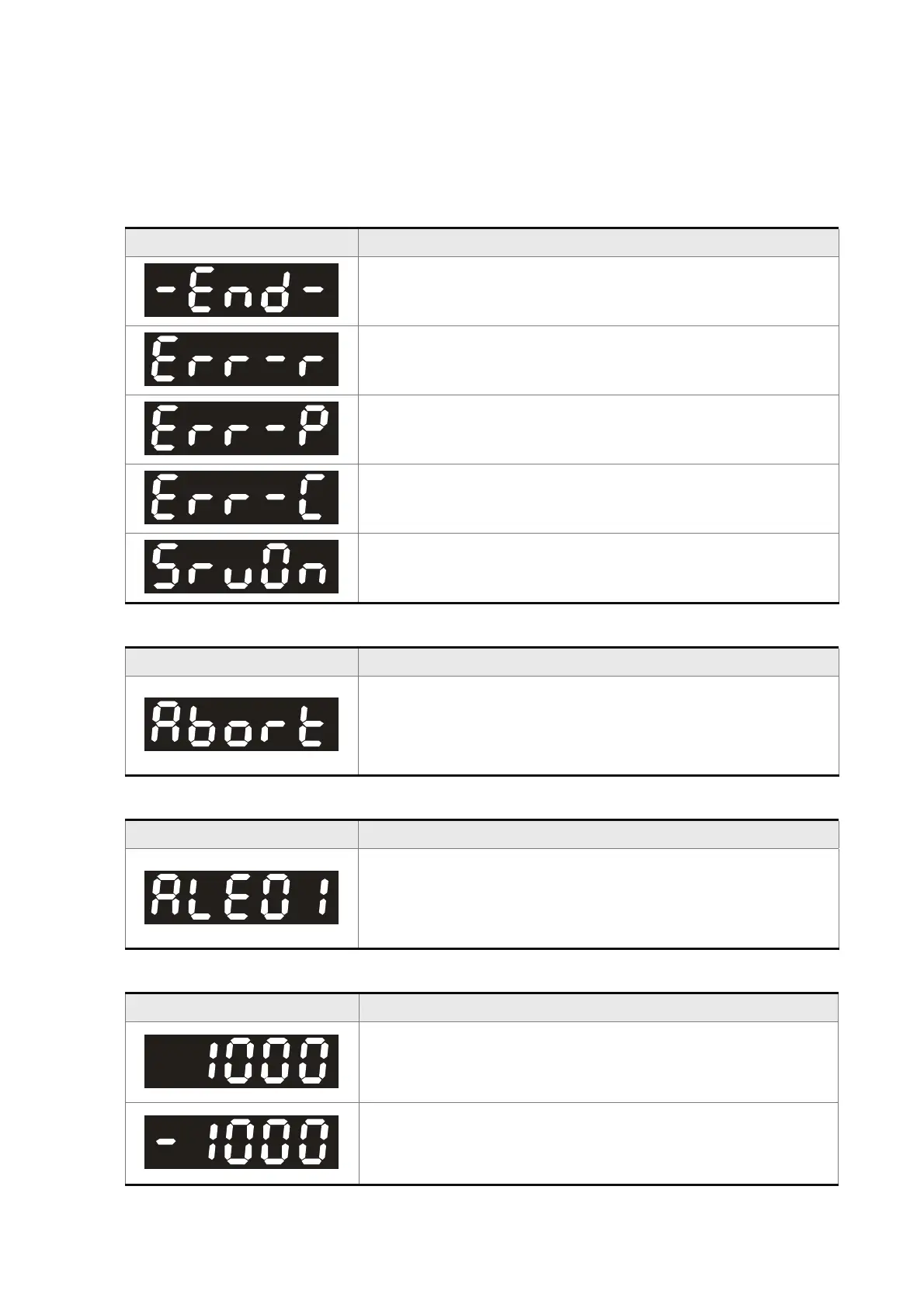

4.2.3 Status Display
Save Setting Display
After the SET key is pressed, LED display will show the following display messages for approx. one
second according to different status.
Display Message Description
The setting value is saved correctly.
This parameter is read only. Write-protected. (cannot be changed)
Invalid password or no password was input.
The setting value is error or input reserve setting value.
The servo module is enabled and this parameter cannot be
changed.
Abort Setting Display
Display Message Description
In parameter mode, pressing MODE key can abort parameter
setting change and return to monitor mode. In parameter setting
mode, pressing MODE key can return back to parameter mode.
After returning back to parameter mode, pressing MODE key
again can abort parameter setting change.
Fault Message Display
Display Message Description
When the AC servo drive has a fault, LED display will display
“ALEnn”. “ALE” indicates the alarm and “nn” indicates the drive
fault code. The display range of alarm code “nn” is 1 to 48. For the
list of drive fault code, please refer to parameter P0-01 or refer to
Chapter 10 (Troubleshooting).
Polarity Setting Display
Display Message Description
Positive value display. When entering into parameter setting
mode, pressing UP or DOWN arrow key can increase or decrease
the display value. SHIFT key is used to change the selected digit
(The selected digit will blink).
Negative value display. When the parameter setting is greater
than five digits, after the display value is set, continuously press
SHIFT key for six times and then the negative sign will show up to
indicate a negative value.
