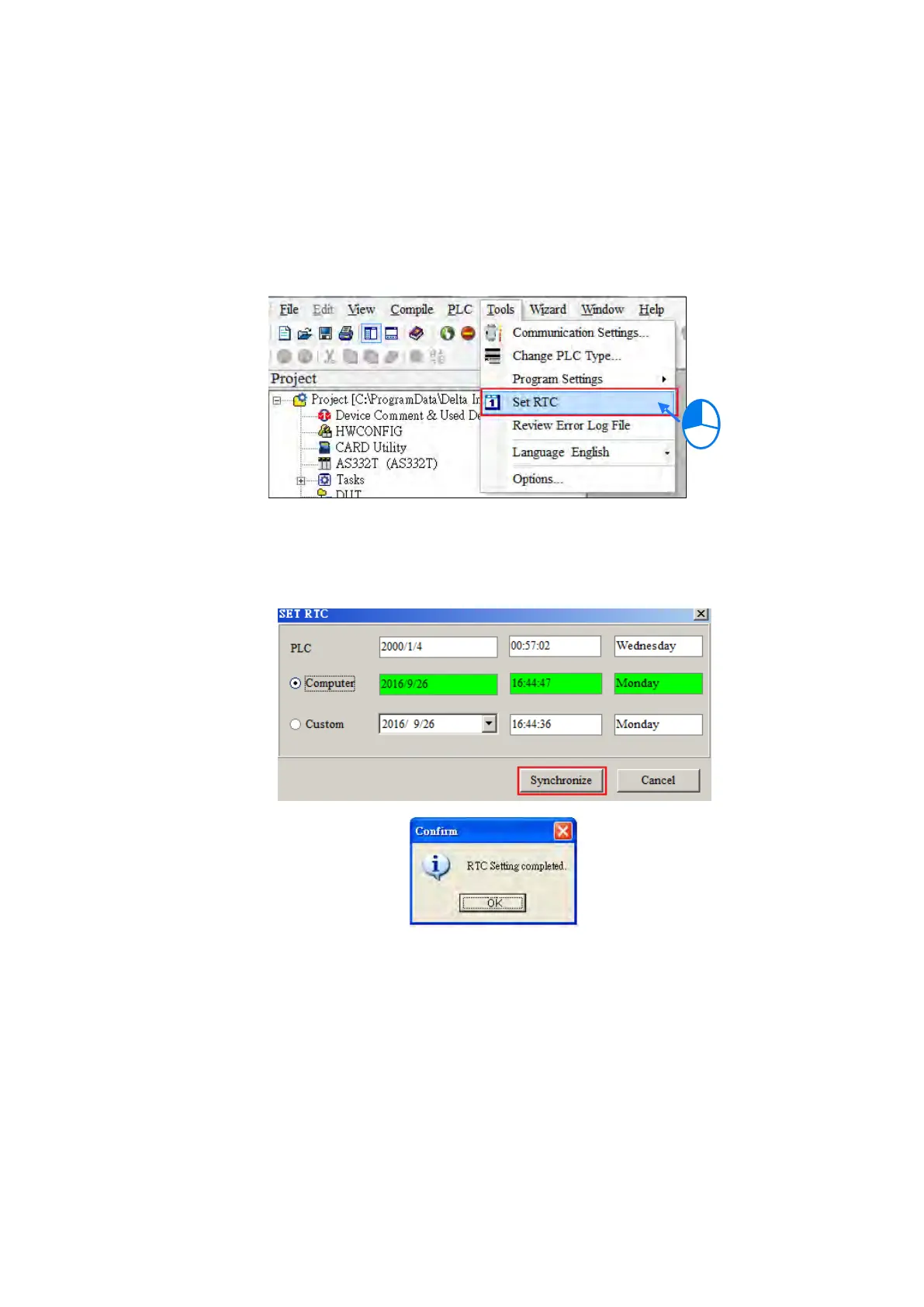

6.7
Setting a Re
al
-
time
C
lock
After you conn
ect an
AS Series CPU module t
o a computer, y
ou can set the r
eal
-
time cl
ock in the CPU
module throug
h ISPSoft
.
(1)
On the
To
o
l
s
menu, click
Set RTC
.
(2)
Select
Computer
, and then cli
ck
Synchr
onize
to complete s
etting the real
time clock.
