Provides an interface for an SD card
VR0/VR1
VR0: use the flag SM166 to activate the values in SR166
VR1: use the flag SM167 to activate the values in SR167
4
Input/Output LED
If there is an input signal, the input LED indicator is ON.
If there is an output signal, the output LED indicator is ON.
Provides an interface for a n Ethernet communication
Provides an interface for RS-485 communication
Provides an interface for an extension card
9
Connects the module and the wiring module
AS300N-A does not come with inputs/outputs; no MIL connector for it.
14
Removable terminal
blocks
For wiring the input and output;
Note: Since AS300N-A does not come with inputs/outputs, no terminal

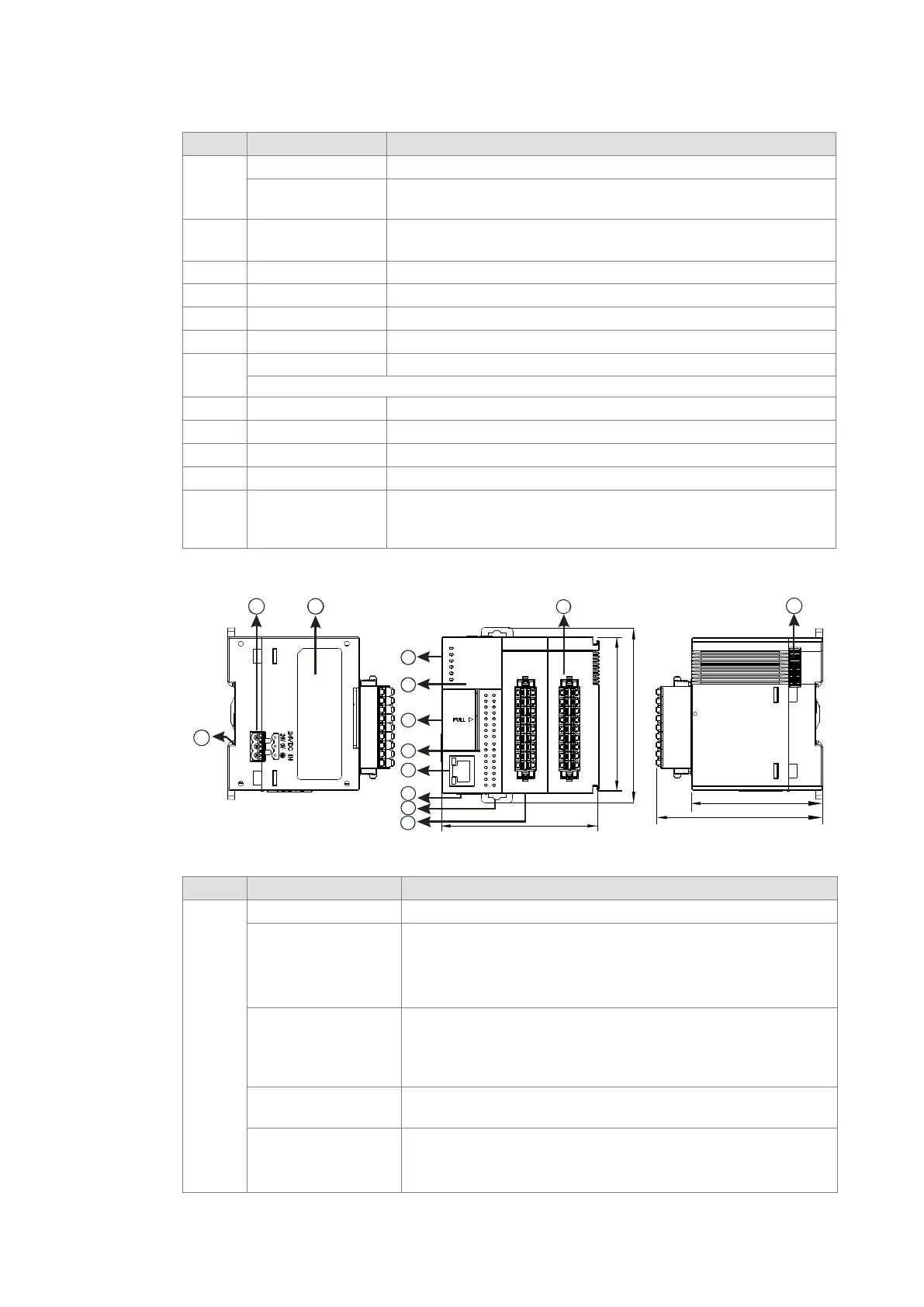

AS200 Series (AS218PX-A/AS218RX-A/AS218TX-A/AS228R-A/AS228T-A/AS228P-A)
10
11 12
88
75
95.5
13
98.3
88
8
9
1
2
4
3
5
7
6
Unit: mm
1
Indicates the power status of the CPU module
Run LED indicator
Operating status of the module
ON: the module is running.
OFF: the module is stopped.
Blinking: the module is detecting an error.
Error LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
BAT.LOW LED
Indicates the battery status of the CPU module.
(Enable/Disable this display in HWCONFIG in ISPSoft)
COM1 LED
COM2 LED
CAN LED
Indicates the communication status of the COM/CAN port.
OFF: no communication over the COM/CAN port
Blinking: communication over the COM/CAN port
