Delta H2.5 User Manual

6.9 Function Port of H5A_222

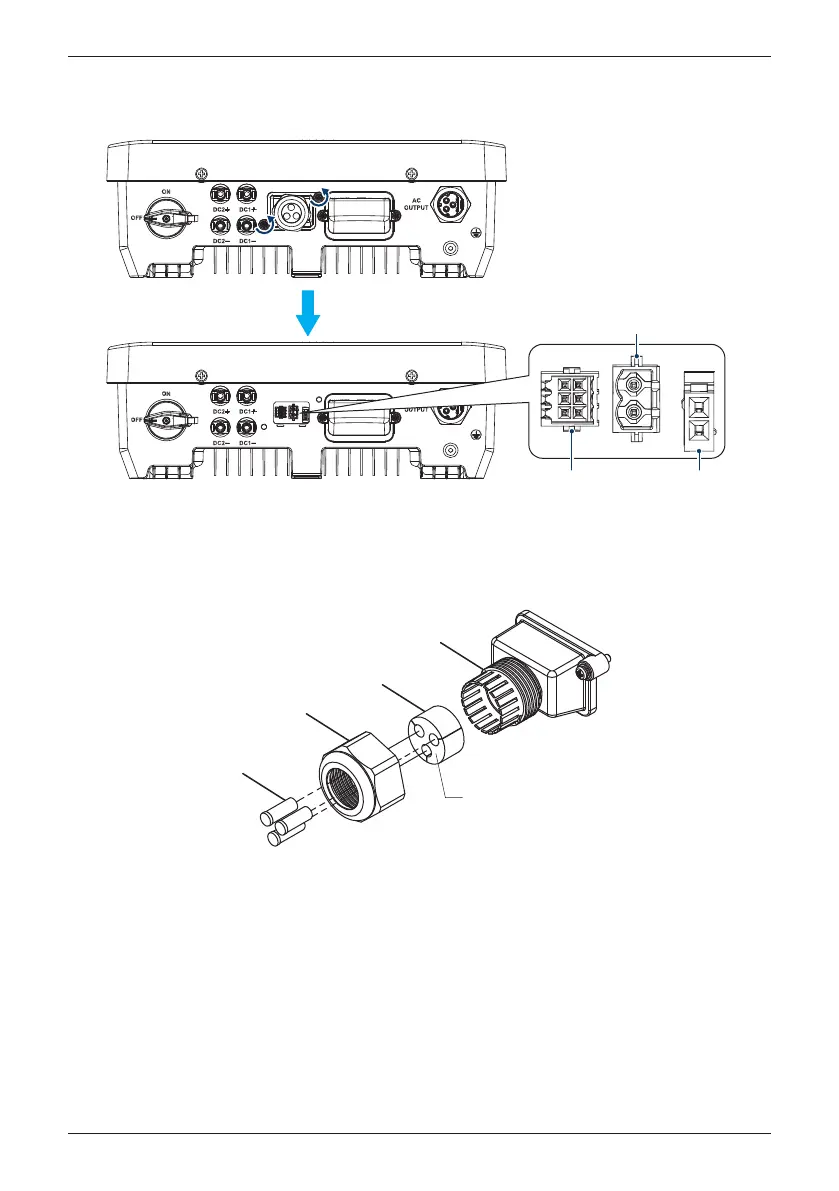

6.9.1 Installation of the Rubber Washer
Digital input Power meter
Dry contact
* Screw torque required for
assembling: 8±2 kgf-cm
(1) Loosen the front cover ① counterclockwise.
(2) Remove the rubber washer ② from the fastening ring ③.
(3) Remove the washer plugs ④ and insert the cable from the cut out of rubber
washer ②.
(4) Connect the cable with the terminal.
(5) Install the rubber washer ② to the fastening ring ③.
(6) Surely tighten the front cover ①.
* To ensure contactment, please make sure cables are not twisted.
①
②
④
③
Φ6.0mm x3
Active/Reactive Power Control and LVRT (Optional)
37
