24
seconds (for the first time start up, select proper country and language, see
“7.3.2 Country Selection & 7.3.3 Language Selection”).
7.2 Inverter Setting
7.2.1 Country Setting
Upon first start-up of the device, Country selection is required.
1. In the country setting page, press “SEL” button (NEXT) to select your
country, press “ENT” button to confirm this page.
2. Press “Enter” button to confirm your country setting.
NOTE:

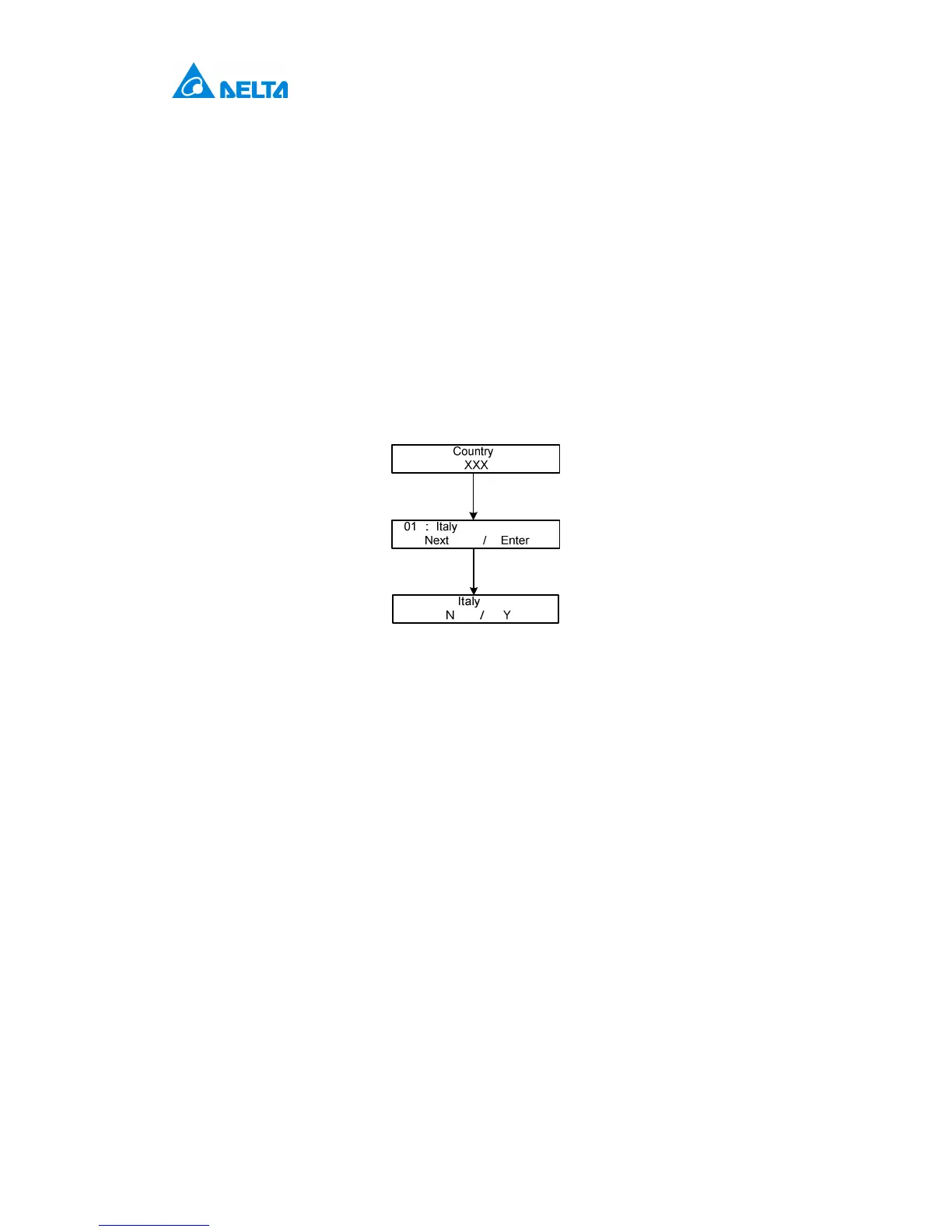

Figure 7-1: Country Setting
7.2.2 Connecting the Communication Wiring
Multiple inverters can be monitored via the inverter’s RS-485 connection
(Figure 5-6), but each inverter’s ID must be assigned a unique value.
NOTE:
Make sure the inverter ID is different from each other in the same RS485
chain.
