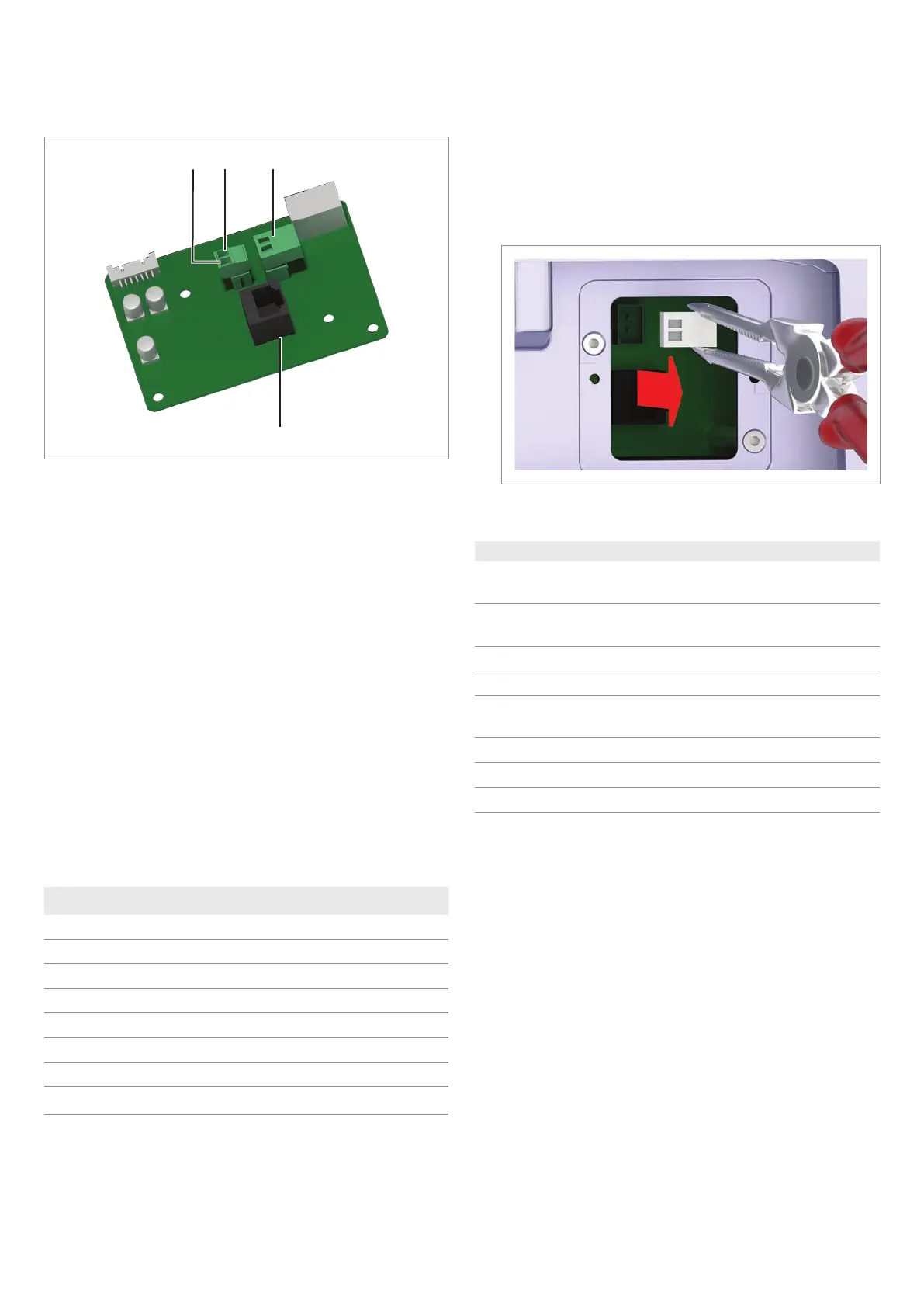

Connecting the digital inputs, dry con-
tacts and external power-o (optional)
1 2 3
4
1 12 V
DC
power supply - GND (plug with screw termi-
nals)
2
12 V
DC
power supply - VCC (plug with screw termi-
nals)
3 Dry contacts (plug with screw terminals)
4 Digital inputs and external power-o (EPO) (RJ45)
Cable and wiring requirements
● Shielded twisted-pair cable with solid conductors
(CAT 5 or CAT 6).
● Cable diameter: 5 mm
● Wire cross-section: 0.25 to 1.5 mm
2
► Lay the cable with a suitable clearance to the AC and
DC cables to prevent interference in the data connec-
tion.
Digital inputs and external power-o (EPO)
To control the active power, an external ripple control
receiver can be connected to the digital inputs.
Pin Short circuit Assigned action
V1 - -
K0 V1 + K0 External power-o (EPO)
K1 V1 + K1 Max. Active power 0%
K2 V1 + K2 Max. Active power 30%
K3 V1 + K3
Max. Active power 60 %
K4 V1 + K4 Max. Active power 100%
K5 V1 + K5 Reserved
K6 V1 + K6 Reserved
After commissioning, the relays can be dened as
make-contact or break-contact for the external shutdown
on the display.
Floating contacts
Both contacts are closed when the inverter feeds electricity
into the grid.
► Carefully pull out the plug for the dry contacts using
long-nose pliers.
After commissioning, an event can be assigned to the dry
contacts on the display of the inverter.
Event Description
Disabled
The functions for the dry contacts are
switched o.
On Grid
Inverter is connected to the mains
grid.
Fans failure
The fans are defective.
Insulation
Insulation test failed.
Alarm
An error, failure or warning message
is present.
Error
An error message is present.
Fault
A failure message is present.
Warning
A warning message is present.
The default setting is Disabled.
