4.2 Method for Transporting Standard Models, and the Weight
of the Whole Machine
The body has an accompanying lifting ring to facilitate customers to transfer and handle the servo
press. In addition, before taking out the lifting ring and putting it into the corresponding keyhole,
please remember to remove the upper cover of the "AM-ESP-S030-XXXX, AM-ESP-S050-XXXX"
model (the details are shown in the quick manual) before it can be installed on the device, please be
sure to lock the lifting eye. Finally, when handling the servo press, it may tilt, so please be careful.
Model
Type of
hanging strap
Quantity
Weight (kg)
AM-ESP-S005-XXXX, AM-ESP-S010-XXXX
M16
1
230
AM-ESP-S030-XXXX, AM-ESP-S050-XXXX
M20
4
1100

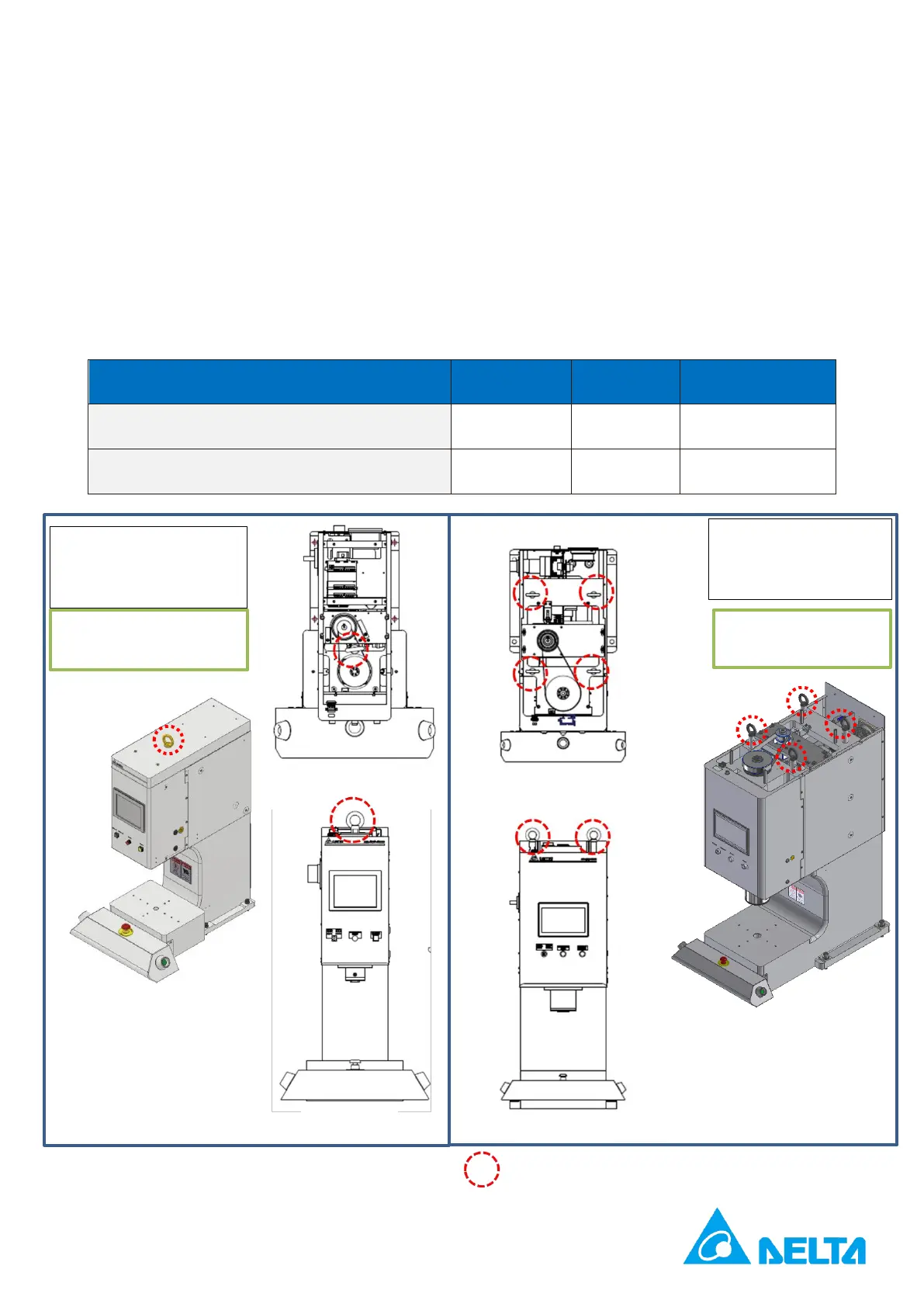

Model：
AM-ESP-S005-XXXX
AM-ESP-S010-XXXX
Top view
Top view
Front view
Front view
"Need" to remove
the top cover
"No need" to remove
the top cover
Model：
AM-ESP-S030-XXXX
AM-ESP-S050-XXXX
: Locking and fastening
site for the hanging strap
