Delta S Series User Manual

Delta Electric Servo Press - S Series
Installation and Maintenance Instructions
19
4.5.2 AM-ESP-S030-XXXX / AM-ESP-S050-XXXX Standard
Type

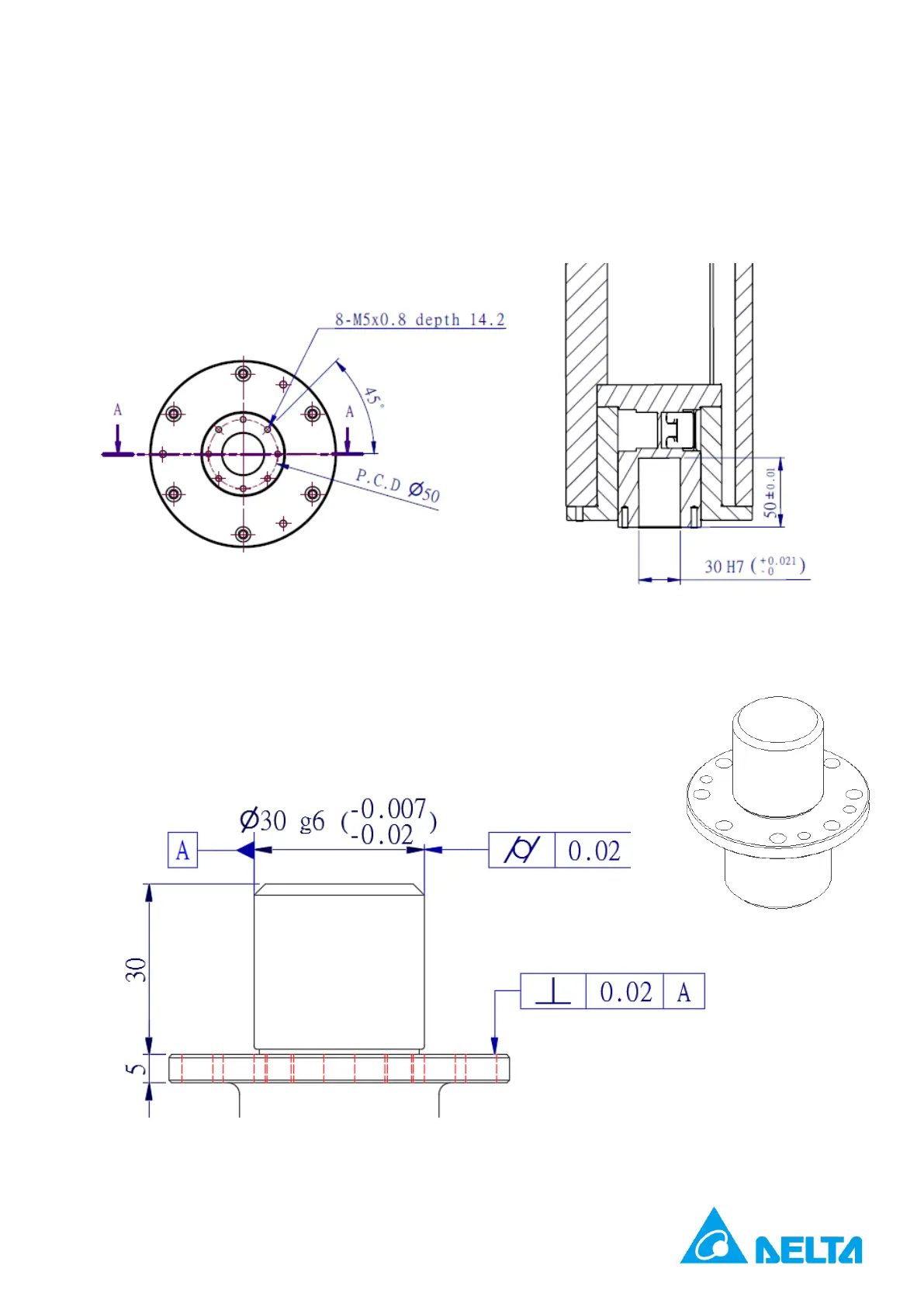

The cross-section of the spindle is shown below. For the punch jig, please use M5 x 0.8 length 12mm
hex screws.
Caution: The top of the spindle punch is installed with the load cell. Do not assemble tools in a way
that could result in deviations or impacts.
※ The recommended jig spindle size is shown in the figure below.
