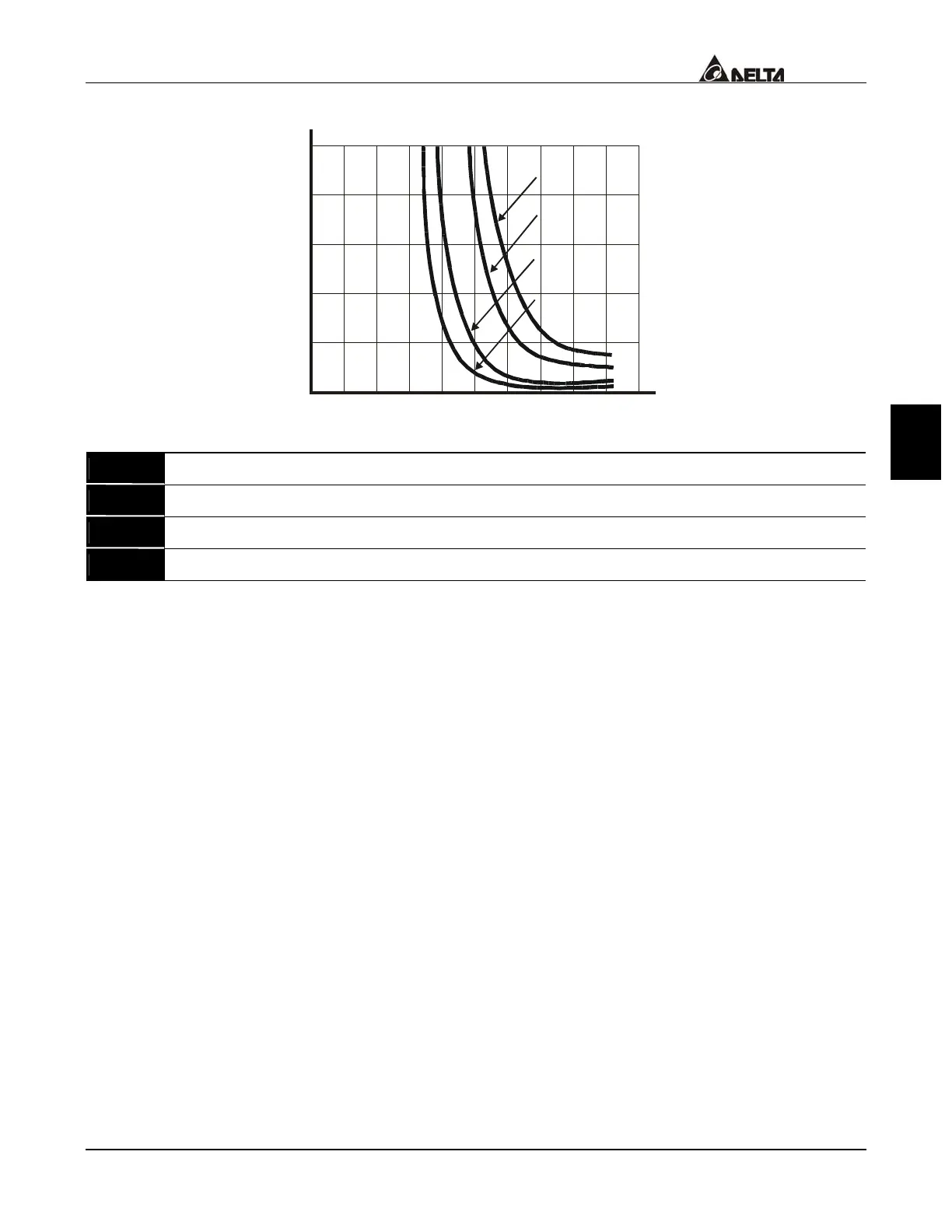

Delta VFD022B43A User Manual

5
VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-41
1
2
3
4
5
60Hz or more
50Hz
10Hz
5Hz
0
20
40
60
80
100
120
140
160
180 200
Operation
time(min)
Load
factor
(%)
06 – 08
Present Fault Record Factory Setting: 00
06 - 09
Second Most Recent Fault Record
Factory Setting: 00
06 - 10
Third Most Recent Fault Record Factory Setting: 00
06 - 11
Fourth Recent Fault Record Factory Setting: 00
Settings 00 No fault occurred
01 Over-current (oc)
02 Over-voltage (ov)
03 Overheat (oH)
04 Overload (oL)
05 Overload1 (oL1)
06 External fault (EF)
07 IGBT protection (occ)
08 CPU failure (CF3)
09 Hardware protection failure (HPF)
10 Current exceeds 2 times rated current during accel.(ocA)
11 Current exceeds 2 times rated current during decel.(ocd)
12 Current exceeds 2 times rated current during steady state
operation (ocn)
13 Ground fault (GFF)
14 Low voltage (Lv)
15 CPU READ failure (CF1)
16 CPU WRITE failure (CF2)
