7-7 Panel Mounting (MKC-KPPK)
For MKC-KPPK model, user can choose wall mounting or embedded mounting, protection level is IP66.
Applicable to the digital keypads (KPC-CC01).
Wall Mounting Embedded Mounting
Accessories*1
Screw *4–M4*p 0.7 *L8mm
Torque: 10–12 kg-cm / [8.7–10.4 lb-in.] /
[1.0–1.2 Nm]
Accessories*2
Screw *4–M4*p 0.7 *L8mm
Torque: 10-12 kg–cm / [8.7–10.4 lb-in.] /
[1.0–1.2 Nm]

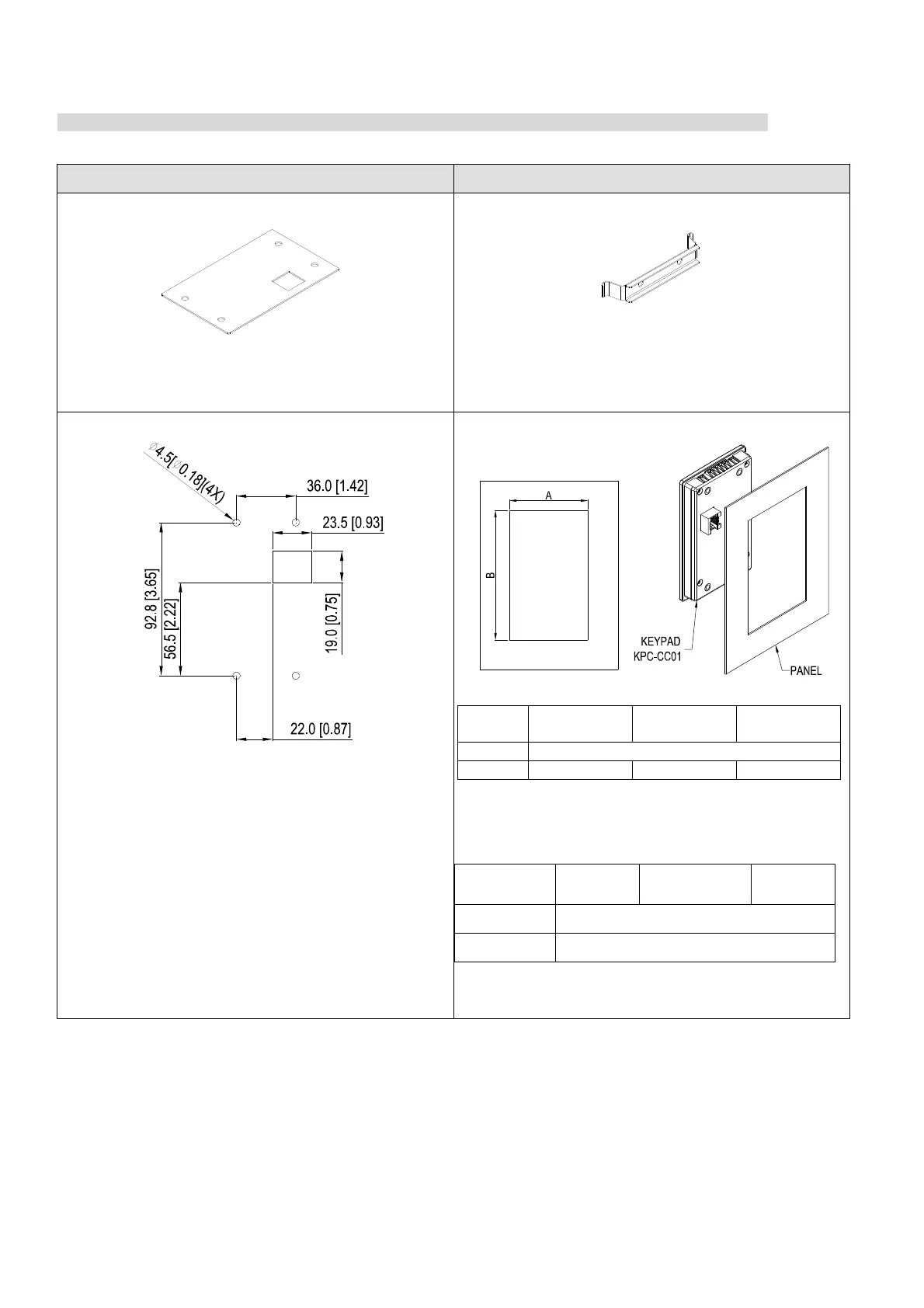

Panel cutout dimension Unit: mm [inch] Panel cutout dimension Unit: mm [inch]
Normal cutout dimension
Panel
thickness
1.2mm 1.6mm 2.0mm
A 66.4 [2.614]
B 110.2 [4.339] 111.3 [4.382] 112.5 [4.429]
*Deviation: ±0.15 mm /±0.0059 inch
Cutout dimension (Waterproof level: IP66)
Panel
thickness
1.2mm
1.6mm 2.0mm
A 66.4 [2.614]
B 110.8 [4.362]
*Deviation: ±0.15 mm /±0.0059 inch
Table 7-76
Table 7-77
