Chapter 8 Option CardsCP2000
8-22
8-10 CMC-PN01 – Communication card, PROFINET
8-10-1 Features
CMC-PN01 connects CP2000 to PROFINET, so the drive is able to exchange data with the upper unit. It
is a simple NET solution, which can reduce the cost and time of connection/ installing factory automation,
also provide compatibility of similar components from multiple suppliers.
Connect CMC-PN01 to CP2000 via PROFINET device:
1. Control the AC motor drive via PROFINET
2. Change the drive parameters via PROFINET
3. Monitor the drive status via PROFINET

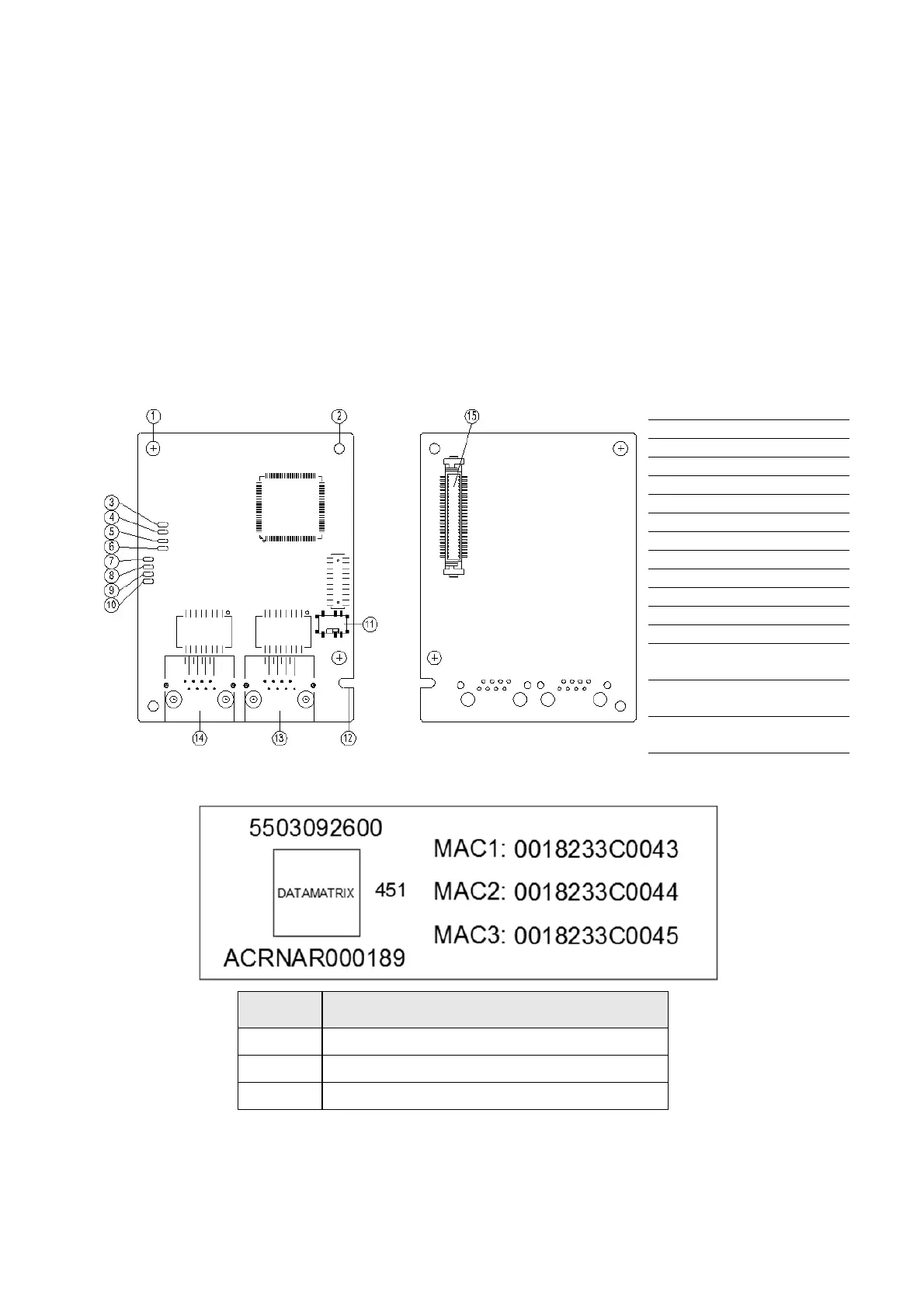

8-10-2 Product Profile
1. Screw fixing hole
2. Positioning hole
3. Ready out indicator
4. MT out indicator
5. SD indicator
6. BF out indicator
7. ACT PHY2 indicator
8. Link PHY2 indicator
9. ACT PHY1 indicator
10. Link PHY1 indicator
11. Switch
12.Fool-proof groove
13. RJ45 connection port
(Port 2)
14. RJ45 connection port
(Port 1)
15. Connection port of
control board
MAC Address label definition
Def. Explanation
MAC1 Port 1 MAC Address
MAC2 Port 2 MAC Address
MAC3 Interface MAC Address
