Chapter 2 InstallationCP2000
2-2
2-1 Mounting Clearance
Prevent fiber particles, scraps of paper, shredded wood saw dust, metal particles, etc. from adhering
to the heat sink.
Install the AC motor drive in a metal cabinet. When installing one drive below another one, use a
metal separation between the AC motor drives to prevent mutual heating and to prevent the risk of
fire accident.
Install the AC motor drive in Pollution Degree 2 environments only:
Normally only nonconductive pollution occurs and temporary conductivity caused by condensation is
expected.
The appearances shown in the following figures are for reference only.

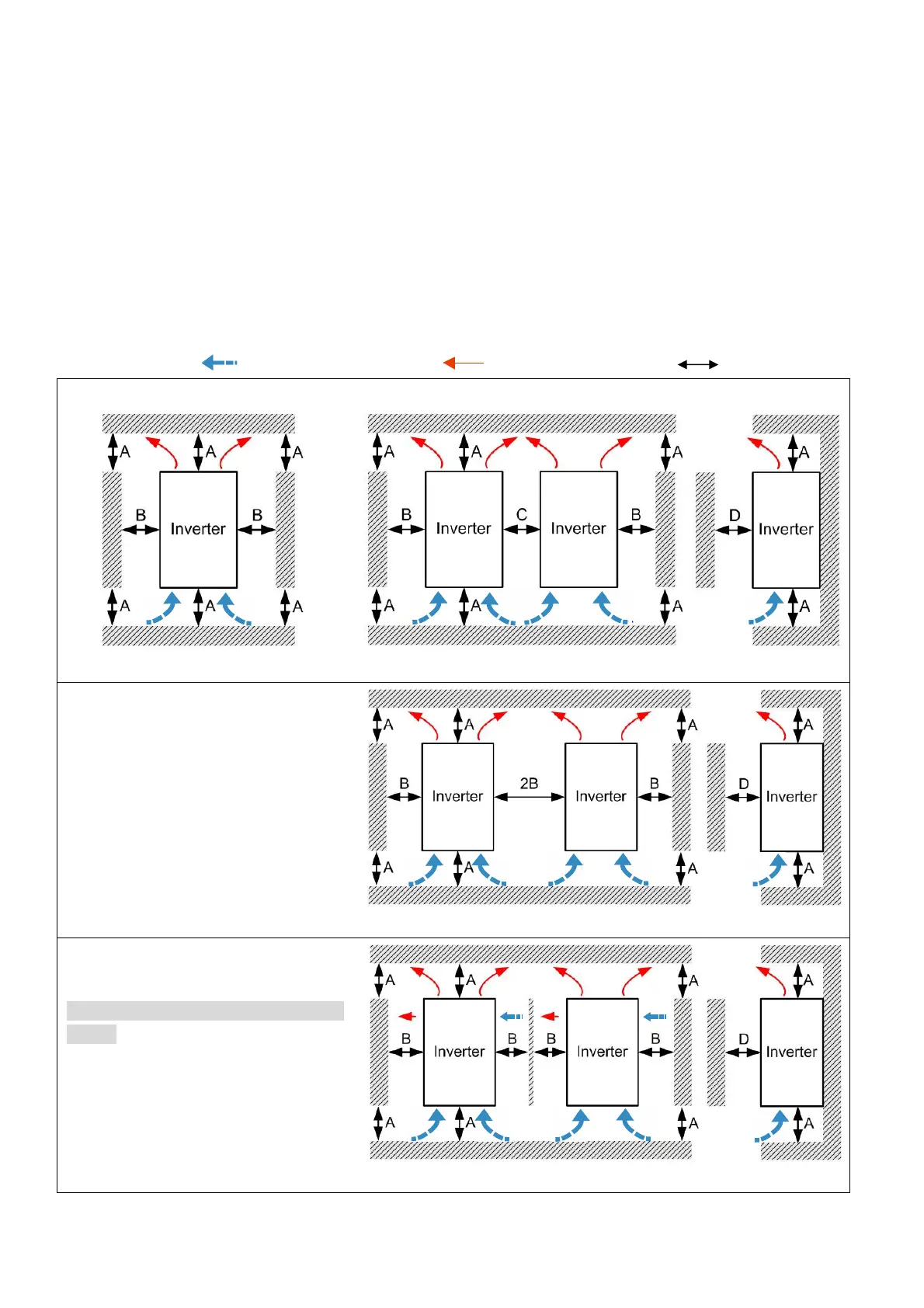

Airflow direction: (Blue arrow) Inflow (Red arrow) Outflow Distance
Single drive installation (Frame A–H)
Figure 2-1
Side-by-side horizontal installation (Frame A–C)
Figure 2-2
Multiple drives, single side-by-side
horizontal installation (Frame G, H)
Figure 2-3
Multiple drives, side-by-side
installation (Frame D0, D, E, F)
Install metal separation between the
drives.
Figure 2-4
To Next Page
