Delta VFD2A7ME43ANSAA User Manual

Chapter 7 Optional AccessoriesME300
7-14

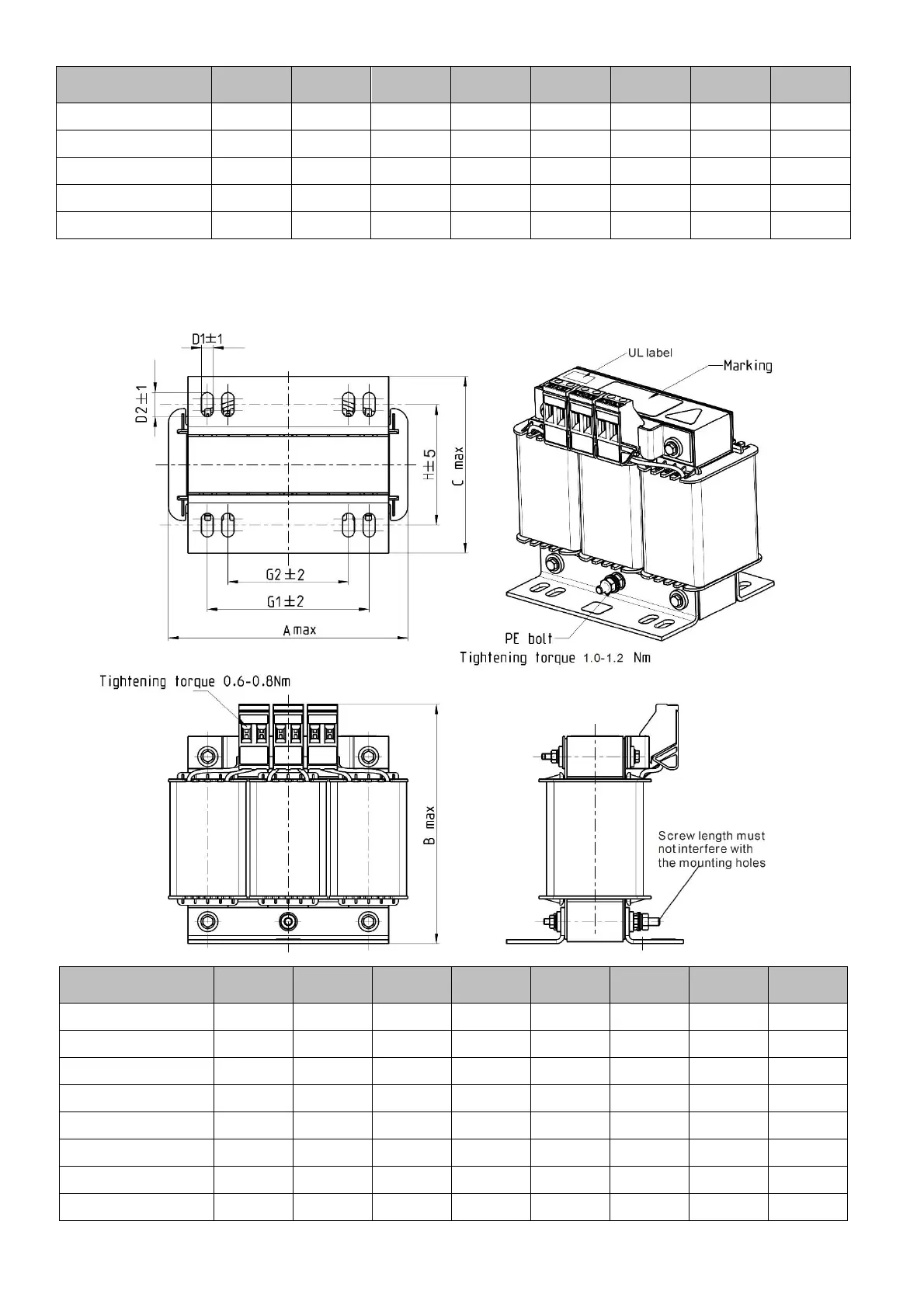

Output AC reactor
Delta part #
A B C D1*D2 E G1 G2 PE D
DR005L0254 96 110 70 6*9 42 60 40 M4
DR008L0159 120 135 96 6*12 60 80.5 60 M4
DR011L0115 120 135 96 6*12 60 80.5 60 M4
DR017LP746 120 135 105 6*12 65 80.5 60 M4
DR025LP507 150 160 120 6*12 88 107 75 M4
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE D
DR003L0810 96 115 65 6*9 42 60 40 M4
DR004L0607 120 135 95 6*12 60 80.5 60 M4
DR006L0405 120 135 95 6*12 60 80.5 60 M4
DR009L0270 150 160 100 6*12 74 107 75 M4
DR010L0231 150 160 115 6*12 88 107 75 M4
DR012L0202 150 160 115 6*12 88 107 75 M4
DR018L0117 150 160 115 6*12 88 107 75 M4
DR024LP881 150 160 115 6*12 88 107 75 M4
Unit: mm
