Chapter 12 Description of Parameter SettingsME300
12.1-02-14
Settings Functions Descriptions
45

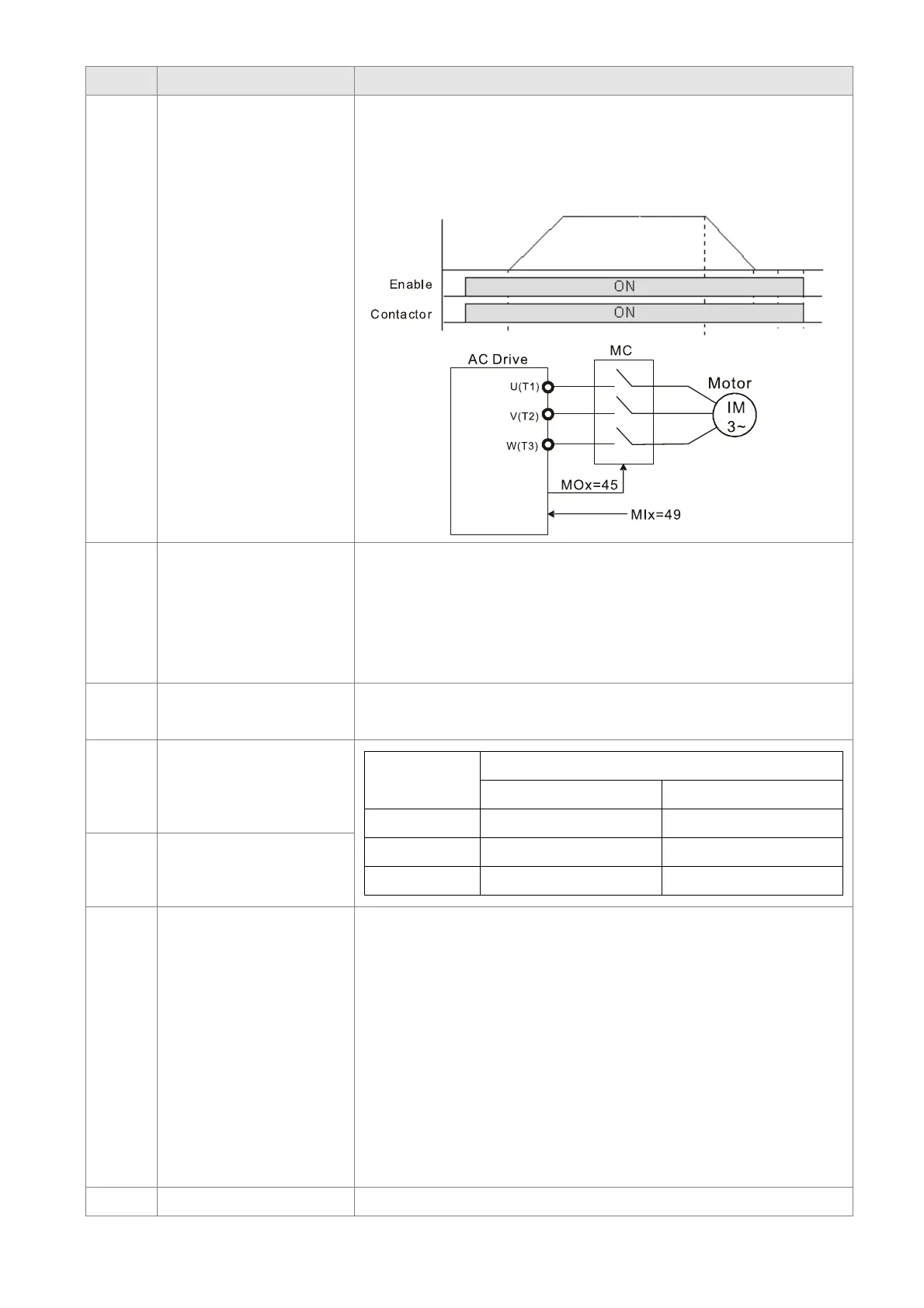

UVW output
electromagnetic valve
ON / OFF switch
Use this function with external terminal input = 49 (drive enabled)
and external terminal output = 45 (electromagnetic valve
enabled), and then the electromagnetic valve is ON or OFF
according to the status of the drive.
46 Master dEb output
When dEb rises at the master, MO sends a dEb signal to the
slave. Output the message when the master triggers dEb. This
ensures that the slave also triggers dEb. Then slave follows the
deceleration time of the master to stop simultaneously with the
master.
51
Output control for
RS-485
For RS-485 communication control output.
66
SO output logic A
(Use with STO card)
Status of
the drive
Status of the safety output
Status A (MO = 66) Status B (MO = 68)
Normal Broken circuit (open) Short circuit (closed)
STO Short circuit (closed)
Broken circuit (open)
STL1–STL3 Short circuit (closed) Broken circuit (open)
68
SO output logic B
(Use with STO card)
67
Analog input level
reached output
The multi-function output terminals operate when the analog
input level is between the high level and the low level.
Pr.03-44: Select one of the analog input channels (AVI, ACI)
to be compared.
Pr.03-45: The high level for the analog input, default is 50%.
Pr.03-46: The low level for the analog input, default is 10%.
If analog input > Pr.03-45, the multi-function output terminal
operates.
If analog input < 03-46, the multi-function output terminal
stops output.
69 Indication of Preheating Active when preheating function is enabled.
