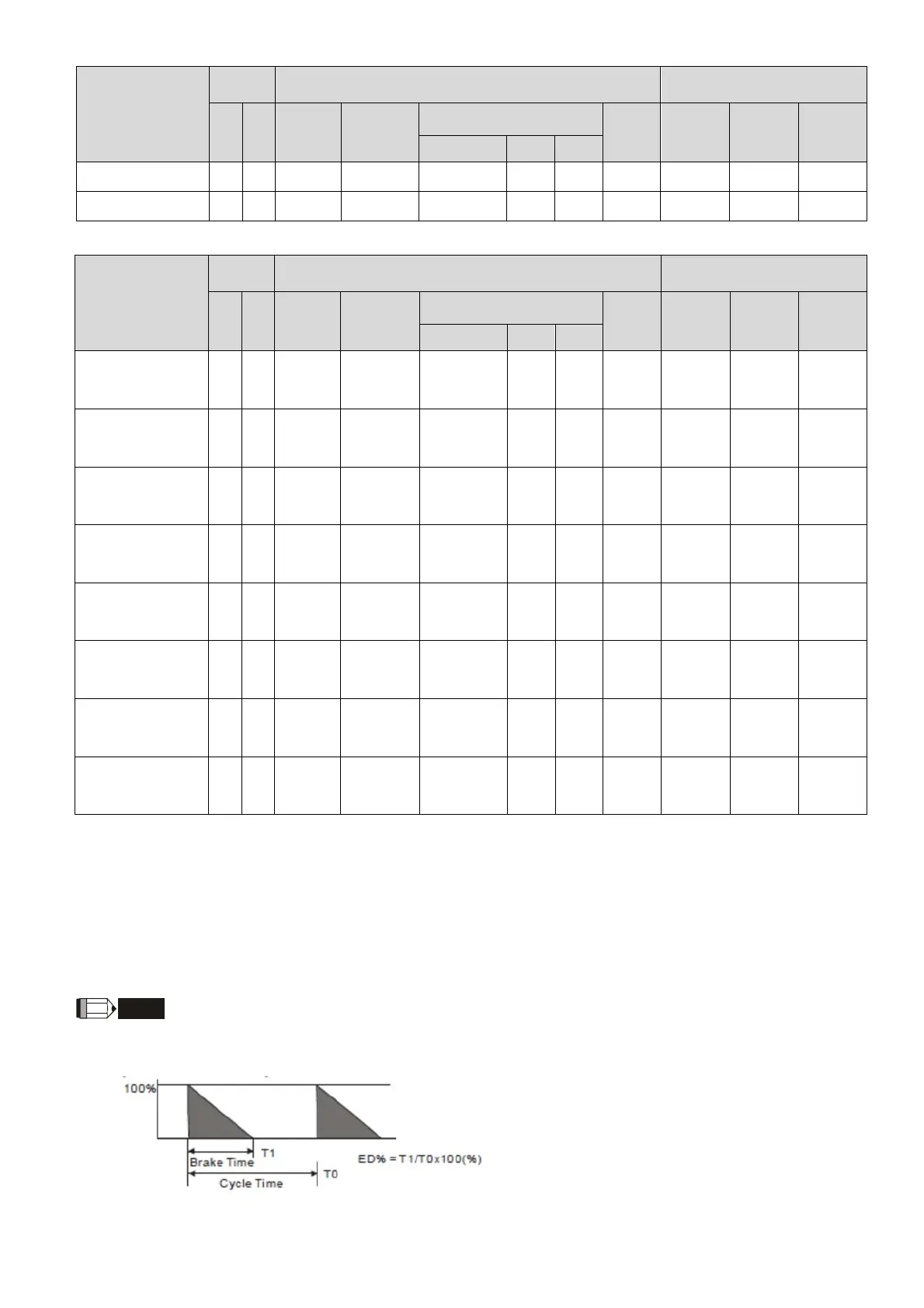

Delta VFD4A8ME21ANSAA User Manual

Chapter 7 Optional AccessoriesME300
7-3
Model
Applicable
Motor
*
1
125% Braking Torque 10% ED
Max. Braking Torque
HP kW
*
2
Braking
Torq ue
[kg-m]
Resistor
value spec.
for each AC
motor Drive
Braking Resistor for
each Brake Unit
Braking
Current
[A]
Min.
Resistor
Value
[Ω]
Max. Total
Braking
Current
[A]
Peak
Power
[kW]
*
3
Part No.
Amount Usage
VFD17AME23ANNAA
VFD17AME23ANSAA
5 3.7 2.5 400W 40Ω BR400W040 1 - 9.5 19.0 20 7.6
VFD25AME23ANNAA
VFD25AME23ANSAA
7.5 5.5 3.7 1000W 20Ω BR1K0W020 1 19 16.5 23 8.7
460V three-phase
Model
Applicable
Motor
*
1
125% Braking Torque 10% ED
Max. Braking Torque
HP kW
*
2
Braking
Torq ue
[kg-m]
Resistor
value spec.
for each AC
motor Drive
Braking Resistor for
each Brake Unit
Braking
Current
[A]
Min.
Resistor
Value
[Ω]
Max. Total
Braking
Current
[A]
Peak
Power
[kW]
*
3
Part No.
Amount Usage
VFD1A5ME43ANNAA
VFD1A5ME43AFNAA
VFD1A5ME43ANSAA
VFD1A5ME43AFSAA
0.5 0.4 0.3 80W 750Ω BR080W750 1 - 1 380.0 2 1.5
VFD2A7ME43ANNAA
VFD2A7ME43AFNAA
VFD2A7ME43ANSAA
VFD2A7ME43AFSAA
1 0.75 0.5 80W 750Ω BR080W750 1 - 1 190.0 4 3.0
VFD4A2ME43ANNAA
VFD4A2ME43AFNAA
VFD4A2ME43ANSAA
VFD4A2ME43AFSAA
2 1.5 1 200W 360Ω BR200W360 1 - 2.1 126.7 6 4.6
VFD5A5ME43ANNAA
VFD5A5ME43AFNAA
VFD5A5ME43ANSAA
VFD5A5ME43AFSAA
3 2.2 1.5 300W 250Ω BR300W250 1 - 3 108.6 7 5.3
VFD7A3ME43ANNAA
VFD7A3ME43ANSAA
VFD7A3ME43AFNAA
VFD7A3ME43AFSAA
4 3 2 400W 150Ω BR400W150 1
-
5.1 95.0 8 6.1
VFD09AME43ANNAA
VFD09AME43AFNAA
VFD09AME43ANSAA
VFD09AME43AFSAA
5 3.7 2.5 400W 150Ω BR400W150 1 - 5.1 84.4 9 6.8
VFD13AME43ANNAA
VFD13AME43AFNAA
VFD13AME43ANSAA
VFD13AME43AFSAA
7.5 5.5 3.7 1000W 75Ω BR1K0W075 1 - 10.2 50.7 15 11.4
VFD17AME43ANNAA
VFD17AME43AFNAA
VFD17AME43ANSAA
VFD17AME43AFSAA
10 7.5 5.1 1000W 75Ω BR1K0W075 1 - 10.2 40.0 19 14.4
* 1.
Standard braking torque is 125%. Because of the limited resistor power, the longest operation time for 10% ED is 10 seconds
(on: 10 seconds / off: 90 seconds).
* 2.
Calculation for braking torque is for a four-pole motor 1800 rpm.
* 3.
Resistors of 400 W or lower should be fixed to the frame and at a surface temperature below 250°C.
Resistors of 1000 W and above should be fixed on a surface with temperature below 600°C.
NOTE
1.
Select the resistance value, power and brake usage (ED %) according to Delta rules.
Definition for Brake Usage ED%
Explanation: ED (%) is defined to allow enough time for the
brake unit and brake resistor to dissipate the
heat generated by braking. Recommended
cycle time T0 is one minute.
