Chapter 7 Optional AccessoriesME300
7-51

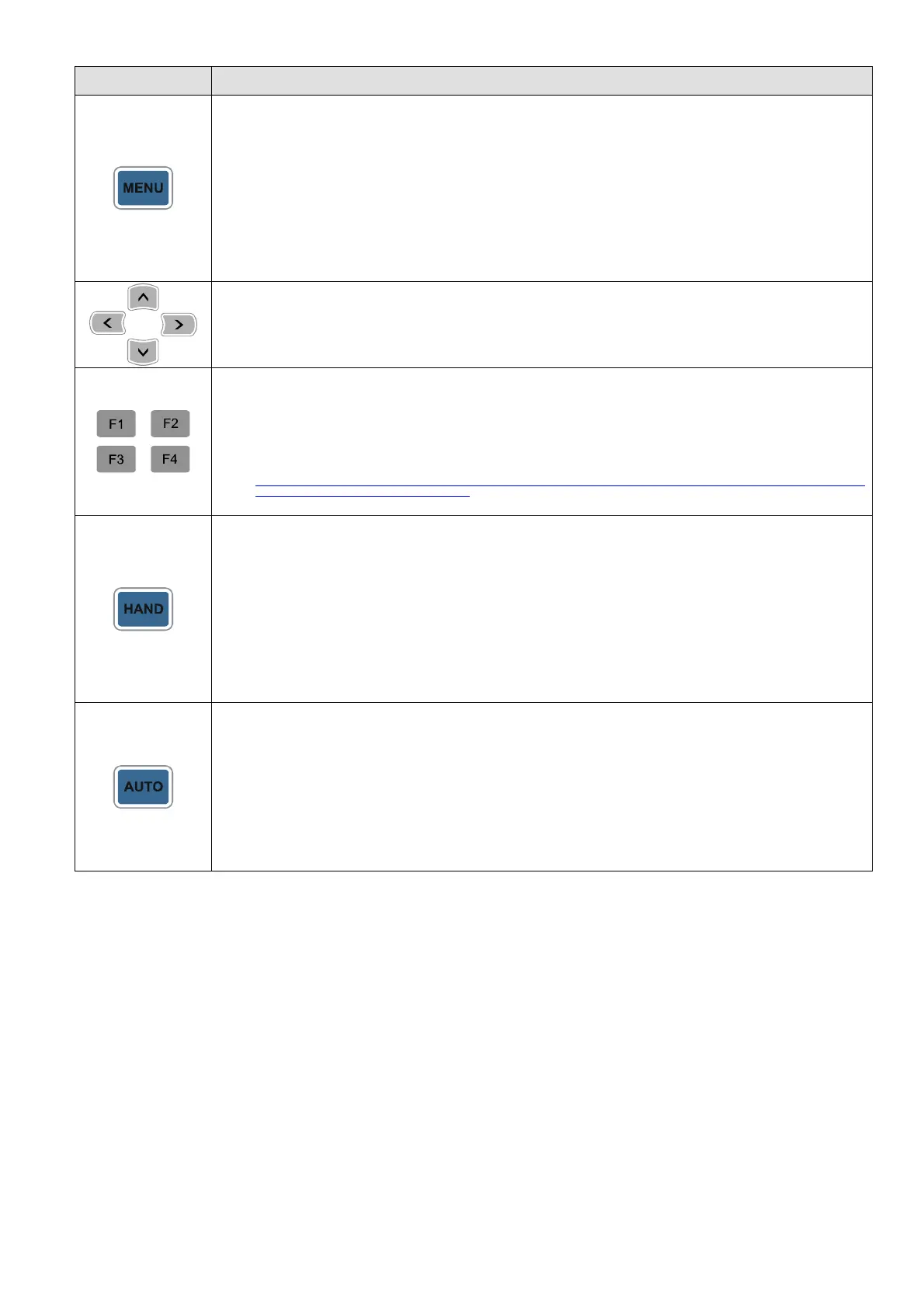

Key
Descriptions
Returns to the main menu.
Menu content:
KPC-CE01 only supports function 1, 5, 9 and 10.
1. Parameter Setup
2. Quick Start
3. Application Selection List
4. Changed List
5. Copy Parameter
6. Fault Record
7. Language Setup
8. Time Setup
9. Keypad Locked
10. PLC Function
11. Copy PLC
12. Display Setup
13. Start-up Menu
14. Main Page
15. PC Link
16. Start Wizard
ME300 models do not support function 2, 8, 10, 11 and 16.
Direction: Left / Right / Up / Down
1. In the numeric value setting mode, it is used to move the cursor and change the numeric
value.
2. In the menu/text selection mode, it is used for item selection.
Function Key
1. The functions keys have defaults and can also be user-defined. The defaults for F1 and
F4 work with the function list below. For example, F1 is JOG function, F4 is a speed
setting key for adding/deleting user-defined parameters.
2. Other functions must be defined using TPEditor (Use version 1.40 or later versions). You
can download TPEditor software at:
http://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060302&typeID=1&downloadID=,&title=-- Select
Product Series --&dataType=8;&check=1&hl=en-US
Refer to installation instruction for TPEditor in Section 7-13-3.
HAND Key
1. The parameter settings for the source of the Hand frequency and hand operation define
this key. The defaults for both source of Hand frequency and hand operation are the
digital keypad.
2. Press the HAND key at stop status, and the setting switches to hand frequency source
and hand operation source. Press HAND key at operation status, and it stops the AC
motor drive first (displays AHSP warning), and switches to hand frequency source and
hand operation source.
3. Successful mode switching for KPC-CE01, “HAND” LED will be on; for KPC-CC01, it
displays HAND mode on the screen.
AUTO Key
1. The parameter settings for the source of the AUTO frequency and auto operation define
this key. The default is the external terminal (source of operation is 4–20mA).
2. Press the AUTO key at stop status, and the setting switches to the auto frequency source
and auto operation source. Press the AUTO key at operation status, and it stops the AC
motor drive first (displays AHSP warning), and switches to auto frequency source and
auto operation source.
3. Successful mode switching for KPC-CE01, “AUTO” LED will be on; for KPC-CC01, it
displays AUTO mode on the screen
