6. PCB SMPS/PCB SPK

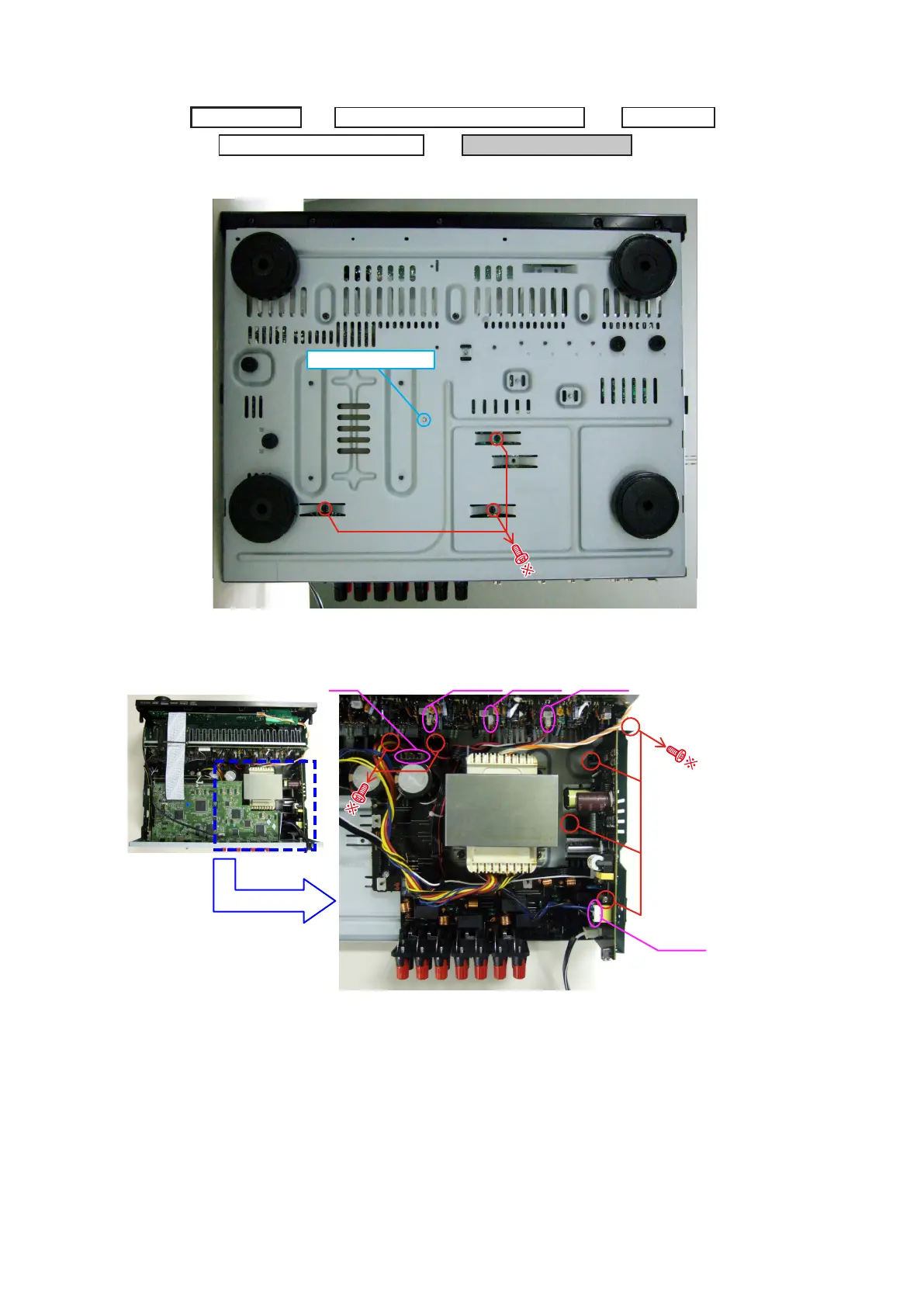

(1) Remove the screws and CARD SPACER.
(2) Disconnect the connector wires, then remove the screws.
PCB SMPS/PCB SPK
→
PCB AUDIO_VIDEO ASSY
→
TOP
COVER
PCB RS232C (AVR-2112CI only)
→
PCB HDMI
→
Proceeding :
View from the bottom
CARD SPACER
CP1
CP405
CX102
CP403CP402
