Denon AVR-2802 Service Manual

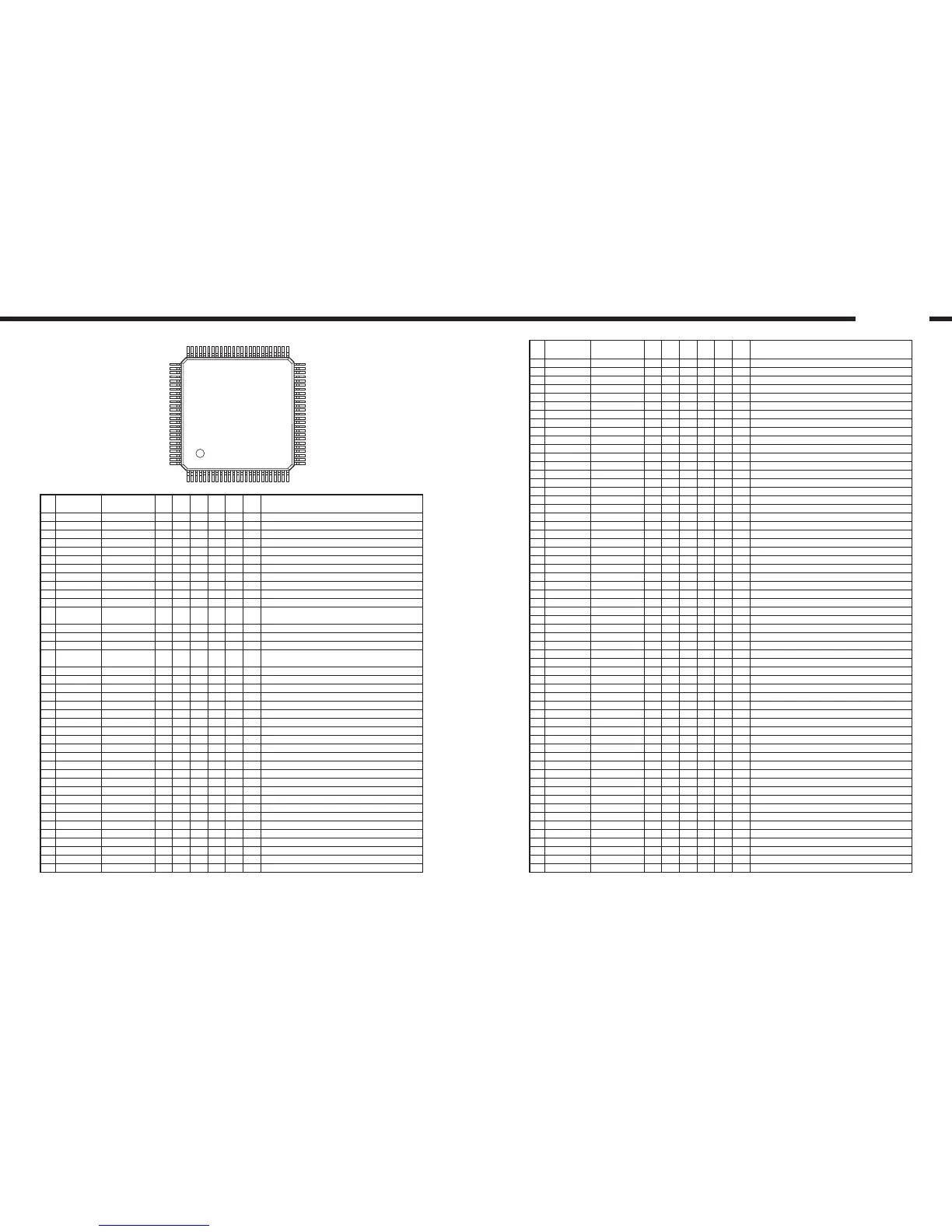

TMP93CS40F (AU: IC301)
Name
Function
TMP93CS40F Terminal Function
Pin
No.
1 V REFL       A/D ref. GND
2 A Vss ←       A/D GND
3 A Vcc ←       AD +5V
4 _NMI I      Not used (fixed to H)
5 P70/TI0 C15 O C Ed  L L Fixed to L (DSP ROM address cont. out bit 15, not used)
6 P71/TO1 C16 O C Ed  L L DSP program ROM address cont. out bit 16
7 P72/TO2 C17 O C Ed  L L DSP program ROM address cont. out bit 17
8 P73/TO3 ROM/RAM O C Ed  L L ROM/RAM switching control terminal (L:ROM)
9 P80/INT4/TI4 _INTREQ OUT I/O C Eu E↓&L Z  DSP request input and cont. output (L:Rq & cont.)
10 P81/INT5/TI5 B.DOWN I  Eu E↑&L Z  Power down detect (H: Detected)
11 P82/TO4 O C   L L
12 P83/TO5 _REQ O C Eu  H L
MAIN-SUB CPU comm. control output (L: Comm. request from
sub)
13 P84/INT6/TI6 _ACK I  Eu E↓&L   MAIN-SUB CPU comm. control input (L: Ack. return from main)
14 P85/INT7/TI7 ERR I   E↑&L   DIR control input terminal (LC89055Q)( H: ERR)
15 P86/TO6 I   Lv Z  (GND)
16 P97/INT0 _CS I  Ed E↑&L  
DIR control input terminal (LC89055Q), when CH status change
L
→
H
17 P90/TXD0 SI O C MAIN-SUB CPU comm. control terminal (data output)
18 P91/RXD0 SO I  MAIN-SUB CPU comm. control terminal (data input)
19 P92/_CTS0/SCLK0 CLK I/O C MAIN-SUB CPU comm. control terminal (I2C clock in/output)
20 P93/TXD1 O C   Z L
21 P94/RXD1 O C   Z L
22 P95/SCLK1 O C   Z L
23 AM8/_16 ←       Fixed to +5V
24 CLK O C Eu   
25 Vcc ←       +5V
26 Vss I/O1       GND
27 X1 Xin I      X′tal connection
28 X2 Xout O      X′tal connection
29 _EA ←       Fixed to +5V
30 _RESET RESET2_ I  Eu Lv L  Reset input (controlled by main CPU)
31 P96/XT1 A/D RESET O N Eu  H H A/D control terminal (L: Reset)
32 P97/XT2 O C Ed  L L
33 TEST1 ← I      Connected to TEST2
34 TEST2 ← I      Connected to TEST1
35 PA0 DINA O C Ed  L L Digital input switching control output
36 PA1 DINB O C Ed  L L Digital input switching control output
37 PA2 O C   L L
38 PA3 DINC O C Ed  L L Digital input switching control output
39 PA4 DOUTA O C Ed  L L Digital output switching control output
40 PA5 DOUTB O C Ed  L L Digital output switching control output
Symbol
I/O Type Op Det Res Init
Name
Function
Pin
No.
41 PA6 DEEMP O C Ed  L L DAC de-emphasis filter cont. out terminal (H:ON)
42 PA7/SCOUT 96k-DAC O C   L L DAC control terminal (H: Sample frequency 96kHz)
43 ALE O C   L L (Address latch enable)
44 Vcc       +5V
45 P00/AD0 (AD0) I/O C   Z L (EPROM data in D0 / address out A0)
46 P01/AD1 (AD1)) I/O C   Z L (EPROM data in D1 / address out A1)
47 P02/AD2 (AD2) I/O C   Z L (EPROM data in D2 / address out A2)
48 P03/AD3 (AD3) I/O C   Z L (EPROM data in D3 / address out A3)
49 P04/AD4 (AD4) I/O C   Z L (EPROM data in D4 / address out A4)
50 P05/AD5 (AD5) I/O C   Z L (EPROM data in D5 / address out A5)
51 P06/AD6 (AD6) I/O C   Z L (EPROM data in D6 / address out A6)
52 P07/AD7 (AD7) I/O C   Z L (EPROM data in D7 / address out A7)
53 P10/AD8/A8 (A8) O C   Z L (EPROM address out A8)
54 P11/AD9/A9 (A9) O C   Z L (EPROM address out A9)
55 P12/AD10/A10 (A10) O C   Z L (EPROM address out A10)
56 P13/AD11/A11 (A11) O C   Z L (EPROM address out A11)
57 P14/AD12/A12 (A12) O C   Z L (EPROM address out A12)
58 P15/AD13/A13 (A13) O C   Z L (EPROM address out A13)
59 P16/AD14/A14 (A14) O C   Z L (EPROM address out A14)
60 P17/AD15/A15 (A15) O C   Z L (EPROM address out A15)
61 _WDTOUT ← O C   Z H Watch dog output
62 Vss ←       GND
63 Vcc ←       +5V
64 P20/A0/A16 (A16) O C   Z L (EPROM address out A16)
65 P21/A1/A17 DIR CLK O C   Z L DIR control terminal (LC89055Q) control clock output
66 P22/A2/A18 DIR CE O C   Z L DIR control terminal (LC89055Q) control chip enable output
67 P23/A3/A19 DIR MOSI O C   Z L DIR control terminal (LC89055Q) control data output
68 P24/A4/A20 DIR MOSO I   Lv   DIR control terminal (LC89055Q) control data input
69 P25/A5/A21 FGAIN O C Ed  L L FRONT ch GAIN switching control output (H: SW=NO)
70 P26/A6/A22 DAC-RESET O C Ed  L H DAC control terminal (L: Power down mode,
↑
(rising edge) Reset)
71 P27/A7/A23 SEL CK O C   Z L ADC/DIR data clock switching control terminal (L: ADC)
72 P30/_RD (_RD) O C   Z L (Flash memory control terminal)
73 P31/_WR (_WR) O C   Z L (Flash memory control terminal)
74 P32/_HWR CSI I   Lv   DIR control input terminal (L: PCM)
75 P33/_WAIT ERR MUTE_ O C Ed  L L Pop noise preventive mute control output (L: Mute)
76 P34/_BUSRQ I   Lv Z  GND
77 P35/_BUSRQ DIG.(AC3) MUTE O C Ed  Z L Digital mute control output (L: AC-3 or DTS decode enable)
78 P36/_R/W I   Lv Z  GND
79 P37/_RAS DIR RESET O C   Z L DIR control output (LC89055Q) (L: Reset)
80 P40/_CS0/_CAS0 O C   Z L
81 P41/_CS1/_CAS1 O C   Z L
82 P42/_CS2/_CAS2 (_CS0) O C   Z L (Flash memory control terminal)
83 P60/PG00 DSP. RESET O C   Z L DSP reset output terminal (L:Reset)
84 P61/PG01 I/02 SCD OUT I C  Lv Z  DSP status data input terminal
85 P62/PG02 I/03 DSP. CS O    Z L DSP chip select cont.output (L:Data out)
86 P63/PG03 I/04 DSP. CLK O C   Z L DSP data clock output terminal
87 P64/PG10 I/05 SCD IN O C   Z L DSP data output terminal
88 P65/PG11 I/06 4527_CE O C   Z L AD control terminal (AK4527), Chip enable output
89 P66/PG12 I/07 4527_CLK O C   Z L AD control terminal (AK4527), Data clock output
90 P67/PG13 I/08 4527_DIN O C   Z L AD control terminal (AK4527), Data output
91 Vss ←       GND
92 P50/AN0 INTTREQ IN I  Eu Lv Z 
93 P51/AN1 I  Eu Lv Z 
94 P52/AN2 EMP I   Lv   H: EMP on
95 P53/AN3 96K DET I   Lv   96k signal detect input, H: 96k
96 P54/AN4 I  Eu Lv  Z
97 P55/AN5 I  Eu Lv  Z
98 P56/AN6 ACC ON/OFF I  Eu Lv  Z
99 P57/AN7 I  Eu Lv  Z
100 V REFH ←       AD ref. +5V
Symbol
I/O Type Op Det Res Init
7 5
7 6
1 0 0
1
2 5
2 6
5 0
5 1
16
AVR-2802/982
