Stereo Receiver

AVR-2803

Denon AVR-2803 Service Manual

113 pages

To Previous Page

To Previous Page

Page #113 background image

Loading...

Page #113 background image

1 2 3 4 5 6 7 8 9 10 11

A

B

C

D

E

F

G

H

1

2

3

4 5

6

7

8

A

B

C

D

E

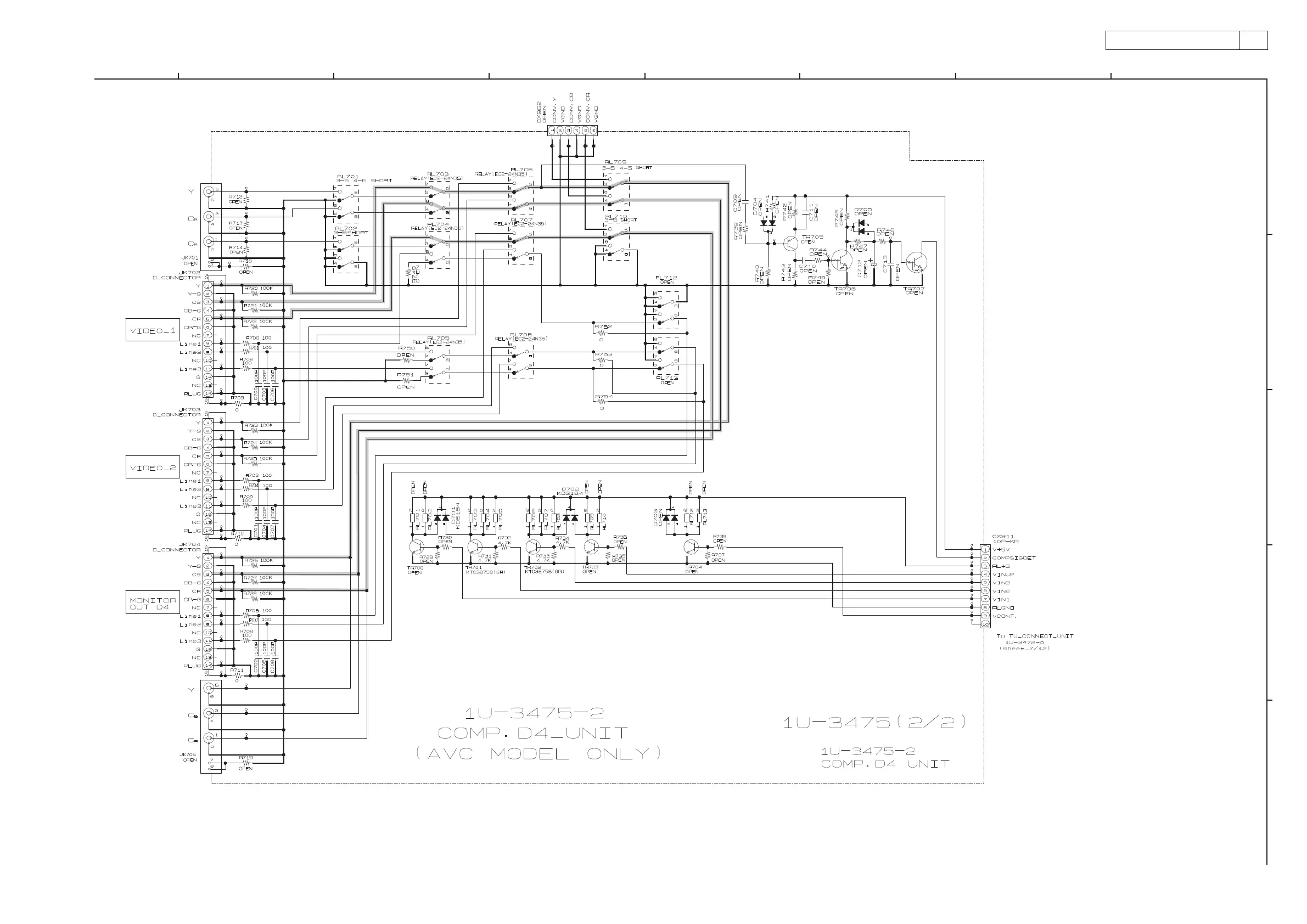

SCHEMATIC DIAGRAMS (12A/12)

1U-3475-2

(For Japan model)

XX

SCHEMATIC DIAGRAMS (12A/12)

113

AVR-2803/983/AVC-2870

113

Table of Contents

AVR-2803/983 /AVC-28701
COVER1
SAFETY PRECAUTIONS2
DISASSEMBLY3
CAUTION IN SERVICING6
ADJUSTMENT7
BLOCK DIAGRAMS9
LEVEL DIAGRAMS11
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK15
CHECK WITH TEST MODE16
SEMICONDUCTORS17
- IC's17
- TRANSISTORS/DIODES30
- FL DISPLAY31
PRINTED WIRING BOARD32
- 1U-3469 POWER UNIT Ass'y32
  - FOIL SIDE33
- 1U-3470 CONNECT/ VIDEO UNIT Ass'y34
  - FOIL SIDE35
- 1U-3471 CONTROL UNIT Ass'y36
  - FOIL SIDE37
- 1U-3472 AMP CONNECT UNIT Ass'y38
- 1U-3474 DSP UNIT Ass'y39
- 1U-3475Z-2 COMP.D4 UNIT (For Japan model)40
- 1U-3486 AUDIO/ DIGITAL UNIT Ass'y41
  - FOIL SIDE42
NOTE FOR PARTS LIST43
PARTS LIST OF P.W.B UNIT ASS'Y(Except Japan model)44
- 1U-3469 POWER UNIT ASS'Y(Except Japan model)44
- 1U-3470 CONNECT/VIDEO UNIT ASS'Y(Except Japan model)47
- 1U-3471 CONTROL UNIT ASS'Y(Except Japan model)51
- 1U-3472 AMP CONNECT UNIT ASS'Y(Except Japan model)54
- 1U-3474 DSP UNIT (For All Model)58
- 1U-3486 AUDIO/DIGITAL UNIT ASS'Y(Except Japan model)59
PARTS LIST OF P.W.B UNIT ASS'Y(For Japan model)64
- 1U-3469J POWER UNIT ASS'Y(For Japan model)64
- 1U-3470J CONNECT/VIDEO UNIT ASS'Y(For Japan model)67
- 1U-3471J CONTROL UNIT ASS'Y(For Japan mode)71
- 1U-3472J AMP CONNECT UNIT ASS'Y(For Japan model)74
- 1U-3474 DSP UNIT (For All model)78
- 1U-3475Z-2 COMP. D4 UNIT (For Japan model)79
- 1U-3486D AUDIO/DIGITAL UNIT ASS'Y(For Japan model)80
EXPLODED VIEW84
PARTS LIST OF EXPLODED VIEW85
PACKING VIEW88
WIRING DIAGRAM89
NOTE FOR SCHEMATIC DIAGRAM90
SCHEMATIC DIAGRAMS(Except Japan Model)91
- (1/12)1U-3486-2 AUDIO IN UNIT91
- (2/12)1U-3486-1(1/2) DIGITAL UNIT92
- (3/12)1U-3486-1(2/2) DIGITAL UNIT93
- (4/12)1U-3474 DSP UNIT(For All model)94
- (5/12)1U-3486-3 EXT IN VR UNIT95
- (6/12)1U-3470-1 CONNECT UNIT 1U-3470-2 FRONT UNIT96
- (7/12)(9/12)1U-3469-6 PRE_OUT_UNIT97
- (8/12)1U-3469-1 POWER UNIT98
- (10/12)1U-3471-1 CONTROL UNIT99
- (11/12)1U-3471-2 DISPLAY UNIT100
  - 1U-3471-3 VOL UNIT100
- (12/12)1U-3470-3 S-VIDEO_UNIT101
SCHEMATIC DIAGRAMS(For Japan Model)102
- (1/12)1U-3486-2 AUDIO IN UNIT102
- (2/12)1U-3486-1(1/2) DIGITAL UNIT103
- (3/12)1U-3486-1(2/2) DIGITAL UNIT104
- (4/12)1U-3474 DSP UNIT(For ALL model)105
- (5/12)1U-3486-3 EXT IN VR UNIT106
- (6/12)1U-3470-1 CONNECT UNIT107
  - 1U-3470-2 FRONT UNIT107
- (7/12)(9/12)1U-3469-6 PRE_OUT_UNIT108
- (8/12)1U-3469-1 POWER UNIT109
  - 1U-3469-2 H/P UNIT109
  - 1U-3469-3 P.SW-1 UNIT(U.S.A.,Canada & Japan model only)109
- (10/12)1U-3471-1 CONTROL UNIT110
- (11/12)1U-3471-2 DISPLAY UNIT111
  - 1U-3471-3 VOL UNIT111
- (12/12)1U-3470-3 S-VIDEO_UNIT112
- (12A/12)1U-3475-2 COMP.D4 UNIT(AVC model only)113
