Denon AVR-3300 User Manual

23
ENGLISH
7
ENTER
Enter the setting.
The System Setup Menu reappears.
The AVR-3300 automatically sets the optimum surround delay time for the listening room.
NOTE:
• If the distance unit is changed after the delay time is set, the settings are reset to the factory default values (see page 17).

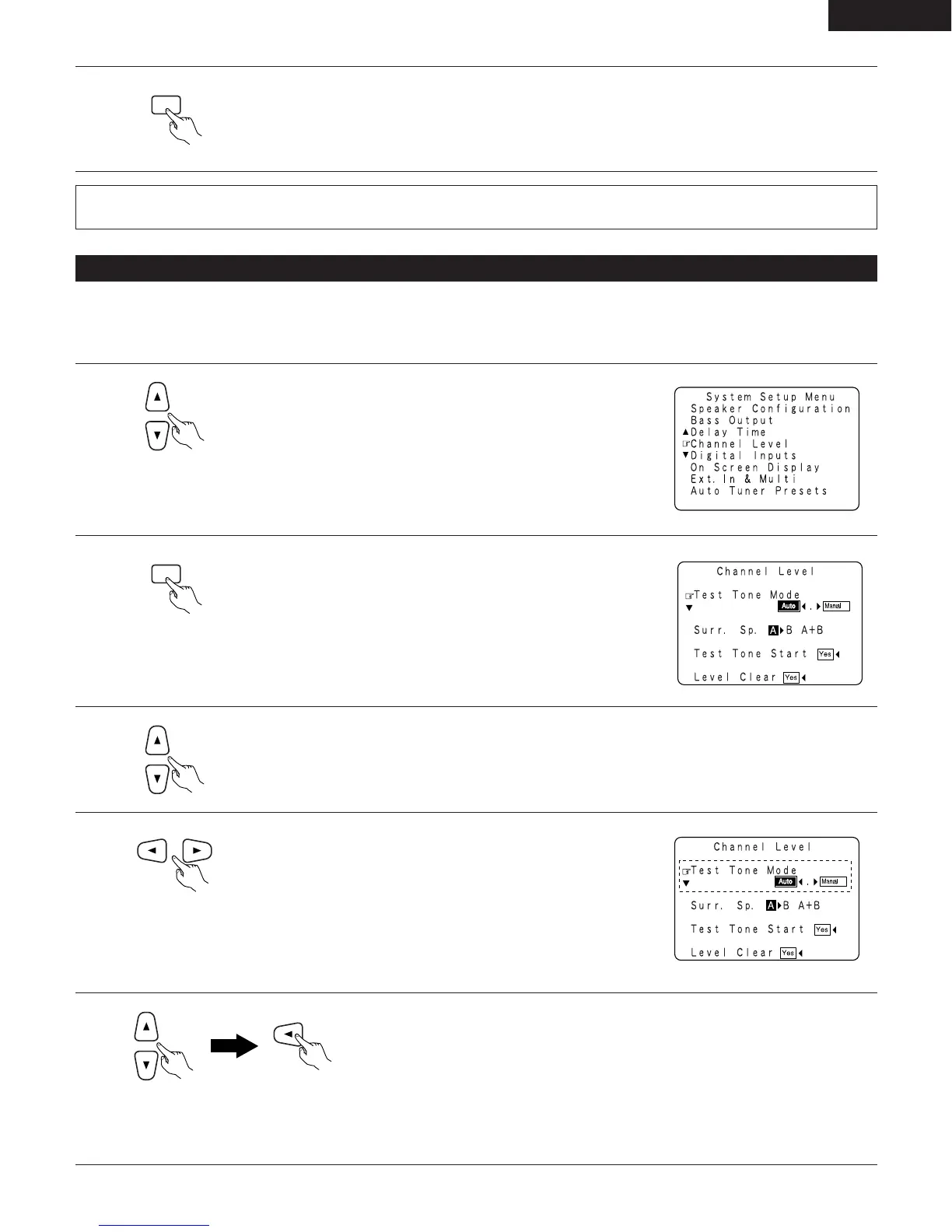

Setting the channel level
• Use this setting to adjust so that the playback level between the different channels is equal.
• From the listening position, listen to the test tones produced from the speakers to adjust the level.
• The level can also be adjusted directly from the remote control unit. (For details, see page 44.)
• When using both surround speakers A and B, their playback levels can be adjusted separately.
1
2
3
4
5
ENTER
At the System Setup Menu select “Channel Level”.
Switch to the Channel Level screen.
Select “Test Tone Mode”.
Select the mode.
Select “Auto” or “Manual”.
• Auto:
Adjust the level while listening to the test tones produced automatically
from the different speakers.
• Manual:
Select the speaker from which you want to produce the test tone to
adjust the level.
Select “Surr. Sp.”, then select the surround speaker(s) from which you want to produce the test tone (A, B or
A+B).
• Surr. Sp.: A
Adjusts the balance of the playback level between the channels when using surround speaker A.
• Surr. Sp.: B
Adjusts the balance of the playback level between the channels when using surround speaker B.
• Surr. Sp.: A+B
Adjusts the balance of the playback level between the channels when using surround speakers A and B at
the same time.
*
The “Surr. Sp.” can only be selected when both surround speakers A and B have been selected at the
System Setup Menu (when both A and B have been set to “Large” or “Small”).
Example: When the “Auto” mode is selected

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
