Denon AVR-3300 User Manual

IN
IN
OUT
IN IN OUT
SIGNAL
GND
DVD
EXT. INFREQ. STEP
VDP
TV
/
DBS
VCR
-
2/
V.AUX
COAXIAL
VCR
-
2/
V.AUX
MD/
TAPE
MD/
TAPE
VCR
-
1
VCR
-
1OPT.-1
OPT.-2
OPT.-3
FR
LOOP
ANT.
AM
SW
SR
ER
CD
PHONO
FL
C
SL
EL
DVD TV/DBS MONITOR
YYC
BCB CRCRYCB CR
COMPONENT VIDEO
SPEAKER SYSTEMS
AUDIO
DIGITAL
C-VIDEO
MONITOR
S-VIDEO
PRE OUT
L L
R
R L
R L
R L
R L
R L
R
FM
COAX.
75
B
R L
A
FRONT
FRONT CENTER SURROUND SURROUND
SUB
WOOFER
CENTER
SURROUNDEFFECT
MULTI/
ANTENNA
9kHz
10kHz
IN
VIDEO
R
L
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
R
L
R
L
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
R
L
R
L
R OUT
VIDEO
OUT
L
AUDIO
L
R
R OUT
VIDEO
OUT
L
AUDIO
L
R
R
L
R
L
R
L
R
L
R
L
8
ENGLISH

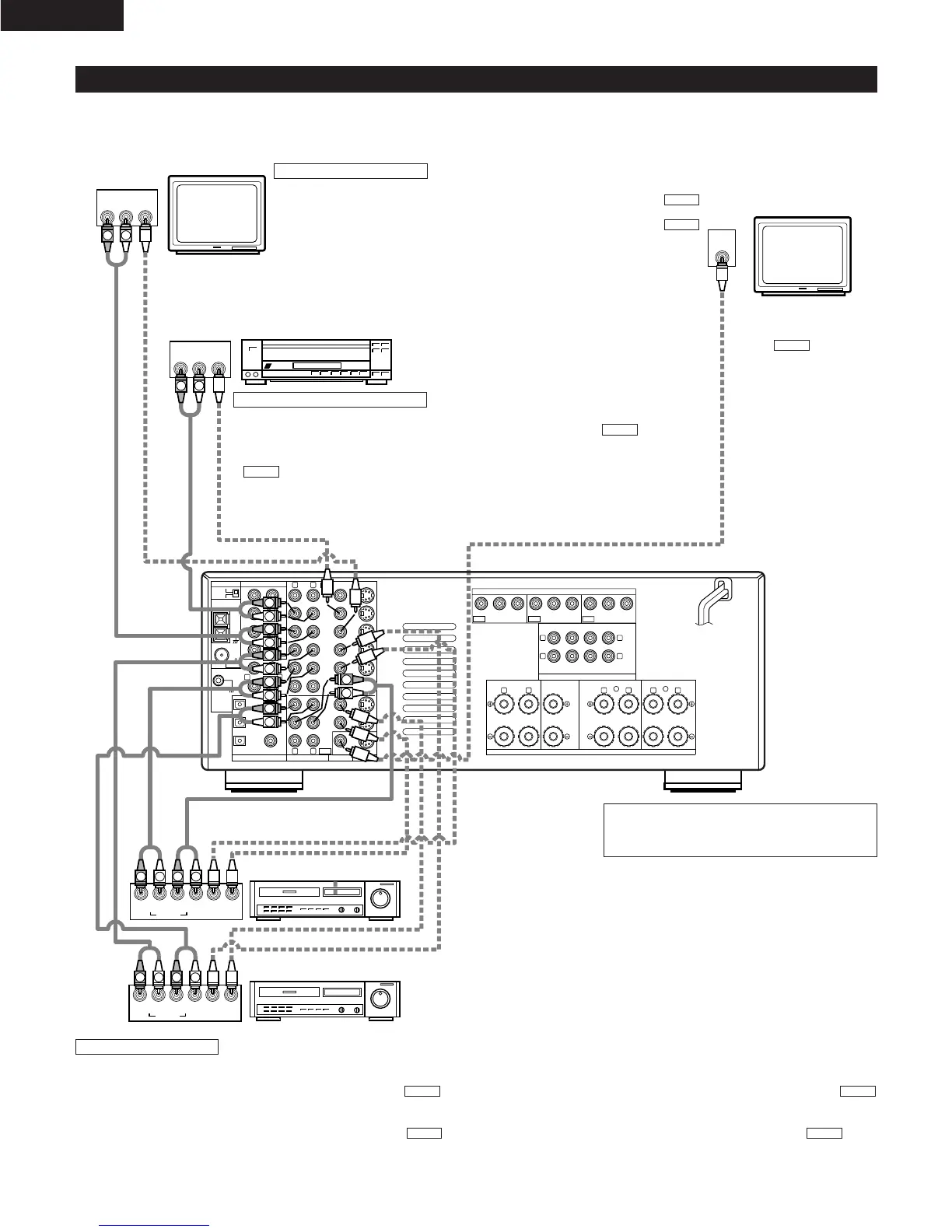

Connecting video components
• To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can result in a drop in video quality.
• When making connections, also refer to the operating instructions of the other components.
TV or DBS tuner
Connecting a TV/DBS tuner
TV/DBS
• Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) TV/DBS IN jack using a 75 Ω/ohms video coaxial pin plug cord.
• Connect the TV’s or DBS tuner’s audio output jacks (AUDIO OUTPUT) to the
TV/DBS IN jacks using pin plug cords.
AUDIO
VIDEO
LD player, CDV player, etc.
Connecting a video disc player VDP
VDP
• Connect the video disc player’s video output jack (VIDEO OUTPUT) to the (yellow) VDP IN
jack using a 75 Ω/ohms video coaxial pin plug cord.
• Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the
VDP IN jacks using pin plug cords.
• A DVD player can be connected to the DVD jacks in the same way.
• It is also possible to connect a video disc player, DVD player, video camcorder, game machine, etc.,
to the VCR-2/V.AUX jacks.
AUDIO
VIDEO
Monitor TV
MONITOR OUT
• Connect the TV’s video
input jack (VIDEO INPUT) to
the MONITOR
OUT jack using a 75
Ω/ohms video coaxial pin
plug cord.
VIDEO
Note on connecting the digital input jacks
• Only audio signals are input to the digital input jacks.
For details, see page 7.
Video deck 2
Video deck 1
Connecting a video decks
• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.
Video input/output connections:
• Connect the video deck’s video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack, and the video deck’s video input jack (VIDEO IN) to the
(yellow) VCR-1 OUT jack using 75 Ω/ohms video coaxial pin plug cords.
Connecting the audio output jacks
• Connect the video deck’s audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the video deck’s audio input jacks (AUDIO IN) to the VCR-1
OUT jacks using pin plug cords.
*
Connect the second video deck to the VCR-2/V.AUX jacks in the same way.
AUDIOAUDIO
VIDEOVIDEO

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
