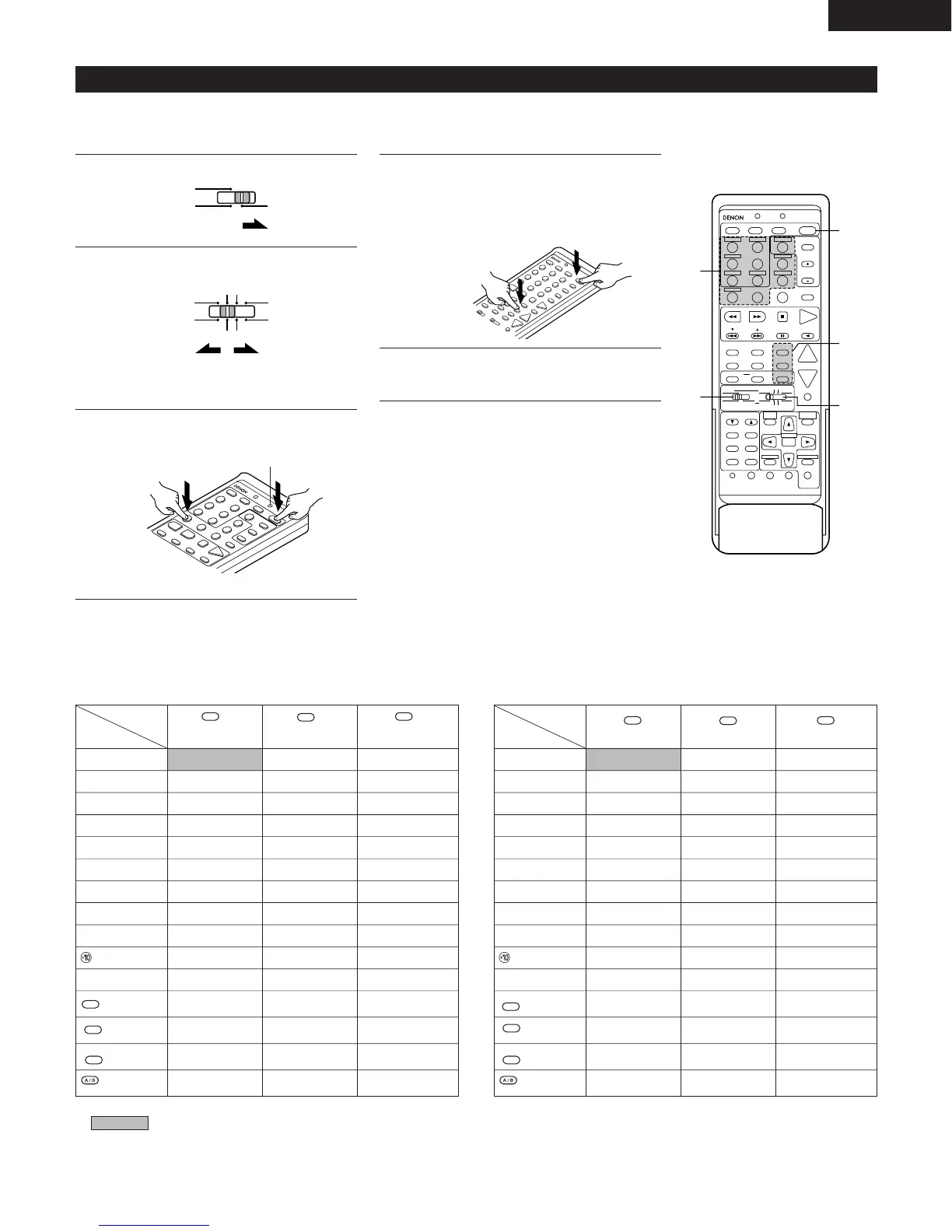

Preset memory
• DENON and other makes of components can be operated by setting the preset memory for your make of video component. Operation is not
possible for some models, however. In this case use the learning function (see page 34) to store the remote control signals.
• For instructions on clearing the presettings stored in the preset memory, see page 37.
1
2
3
Set the slide switch to “VIDEO”.
Set the slide switch to the component to
be registered (VDP, VCR or TV).
Holding in the POWER button, press the
button for the corresponding manufacturer
in block A.
(Refer to Table 1.)
The LEARNED/TX LED flashes.
Keep the POWER button pressed in
when performing steps 3 and 4
()
AVR/AVC VIDEO
AUDIO
DVD TV
VDP VCR
CD
MD
MULTI
DECK
Flashes
4
5
Next, while holding the POWER button,
press the button for the code in block B.
(Refer to Table 1.) The operation is
completed when the button is released and
the LEARNED/TX LED lights.
To continue registering other components,
repeat steps 2 to 4.
DVD
START LEARNED/TX
SPEAKER
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI OUTPUT DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS PHONO
VCR-1 CD
MD / TAPE CHANNEL
VCR-2/V.AUX
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
RC-860
123
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
56
789
+10
0
3
3,4
4
2
1
• This remote control unit can be used to operate components of other manufacturers without using the learning function by registering the
manufacturer of the component as shown on Table 1.
Table 1: Combinations of Personal System Codes for Different Manufacturers
“DVD”
(DIRECT)
—
—
PANASONIC
—
SONY
PIONEER
TOSHIBA
—
—
—
—
—
—
—
(STEREO)
DENON B
—
—
—
—
—
—
—
—
—
—
—
—
—
—
(EXT. IN)
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
B
A
q (DVD)
w (VDP)
e (TUNER)
r (TV/DBS)
t
y (PHONO)
u (VCR-1)
i (CD)
o (MD/TAPE)
p
(SHIFT)
(CHANNEL +)
(CHANNEL –)
(A/B)
(VCR-2/V.AUX)
DIRECT
STEREO
EXT.IN
SHIFT
CHANNEL
+
CHANNEL
–
*
Preset codes set upon shipment from the factory and when reset
“VDP”
(DIRECT)
DENON A
—
MITSUBISHI
PANASONIC
—
SONY A
PIONEER
—
—
—
—
PHILIPS
RCA
—
NAGNAVOX
(STEREO)
DENON B
—
—
—
—
SONY B
—
—
—
—
—
—
—
—
—
(EXT. IN)
DENON C
—
—
—
—
SONY C
—
—
—
—
—
—
—
—
—
B
A
q (DVD)
w (VDP)
e (TUNER)
r (TV/DBS)
t
y (PHONO)
u (VCR-1)
i (CD)
o (MD/TAPE)
p
(SHIFT)
(CHANNEL +)
(CHANNEL –)
(A/B)
(VCR-2/V.AUX)
DIRECT
STEREO
EXT.IN
SHIFT
CHANNEL
+
CHANNEL
–

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
