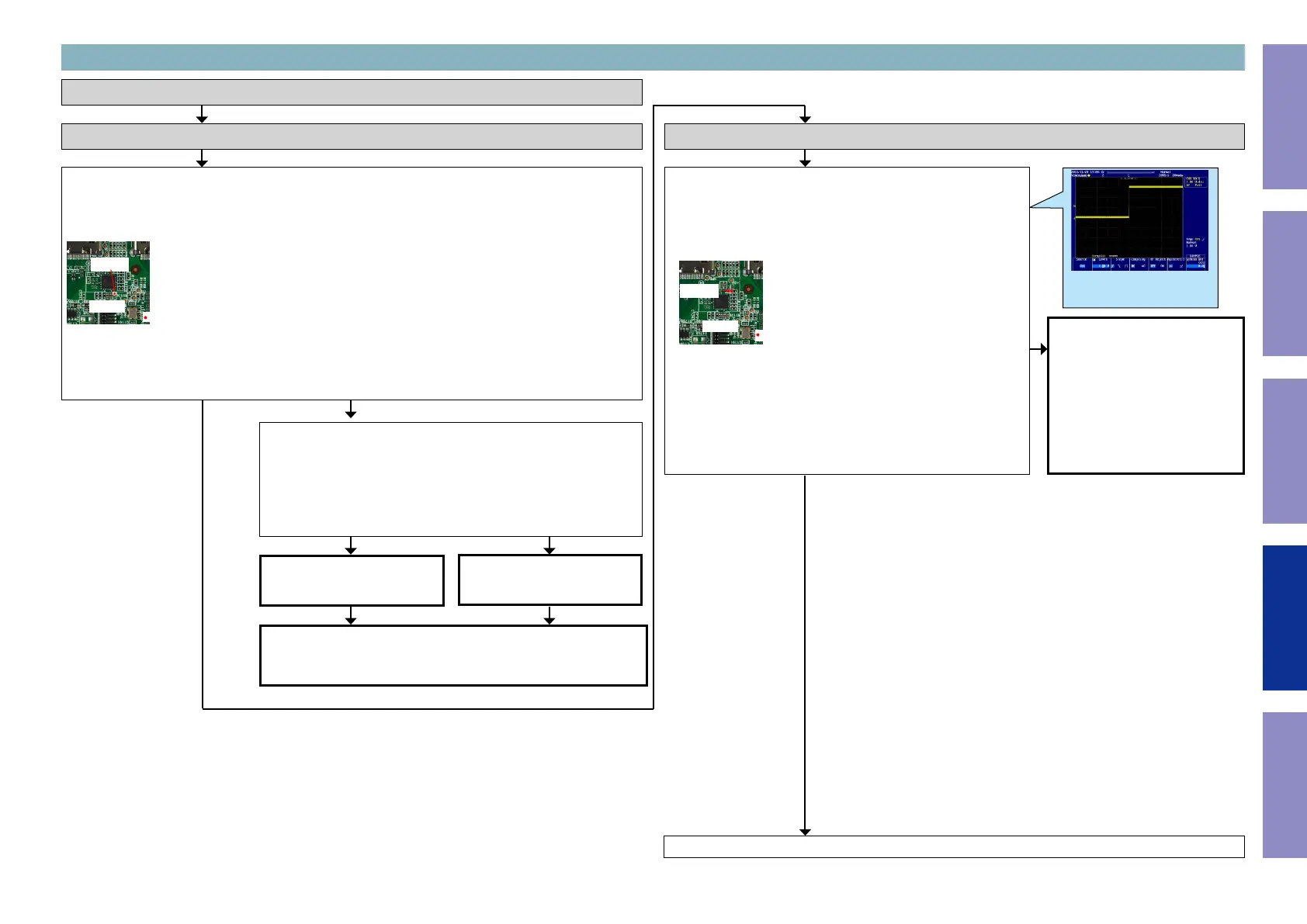

3-10. Error Code H1-16 failure detection procedure
Check the power supply voltage. (ARC IC)
Check item(3-10.1.). Check the power supply voltage. :
Does the power supply voltage of the ARC IC [U1009] indicate the correct voltage (1.2V)?
The test points are as follows.
U1009
C2244
1.2V
Check item(3-10.2.). Check the power supply voltage. :
Check the power components [U1032] and the pattern on the sub-
strate.
If there is no problem, remove the ARC IC [U1009] from the sub-
strate and measure the voltage at the test point of check item (3-
10.1.).
Is the power supply voltage correct (1.2V)?
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
Checking device. [U1009 : Sil9437]
NOYES
NOYES
Go to next page.
YES
Checking the reset waveform. (ARC IC)
Check item(3-10.3.). Checking the reset waveform :
Check the waveform.
Is the "RESET" waveform of the ARC IC [U1009] correct (like the
one shown in the diagram) when the power is turned on?
HDMI Rx2
U1009
1.2V
R2155
Check the reset circuit between
CPU [U1018] and ARC IC [U1009].
If there is no problem, the ARC IC
[U1009] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
Before Servicing
This Unit
