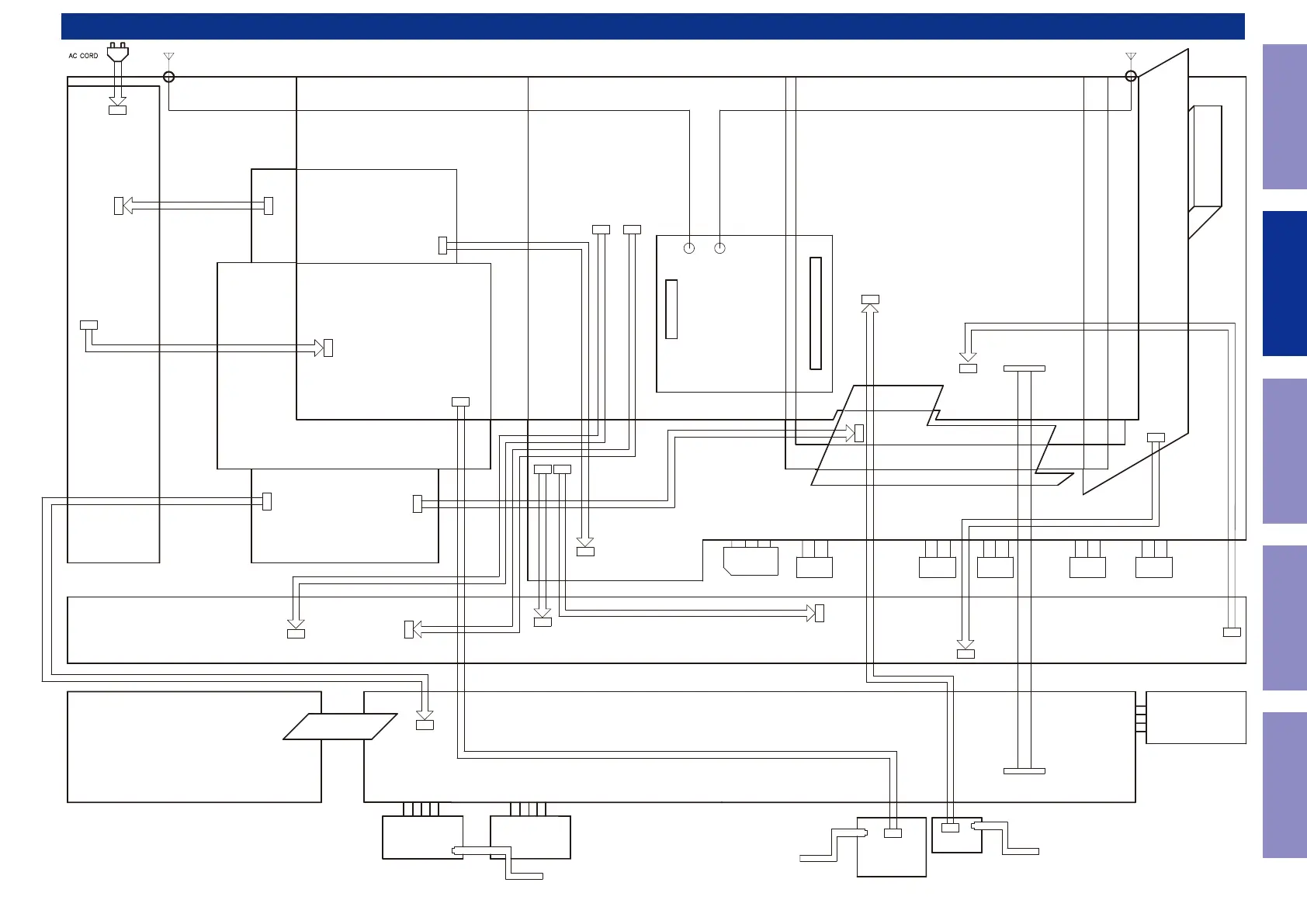

WIRING DIAGRAM
6P FFC CABLE(P/T)
VIDEO VIDEO
AUDIO
HDMI JACK
7805 7905
Shield Plate
40P
7807
SMPS PCB
7P TAP (SPK)
3P WIRE (SBL/R)
5P WIRE (AUDIO OUT)
Shield Plate
5P SHIELD WIRE
INPUT PCB
7P TAP (FL)
WI-FI_ANT
Shield Plate
8P TAP (A/V)
FRONT HDMI PCB
AUDIO IN PCB
VIDEO PCB
AUDIO
CODEC
78D05
40P FFC CABLE
SELECT PCB
2P TAP (SMPS)
FRONT PCB
SPK PCB
6P WIRE (+/- B)
FRONT CNT PCB
7907
WI-FI/BT_ANT
H/P PCB
DIGITAL PCB
HDMI CABLE
13P WIRE (AUDIO IN)
TUNER PACK
7CH AMP PCB
10P WIRE (+/- B)
MAIN TRANS
6P WIRE (HDMI POWER)
USB PCB
MIC PCB
GBJ2506
LEGO 4.0V
MODULE
VOLUME PCB
AVR_S950H / X2600H WIRE DIAGRAM
