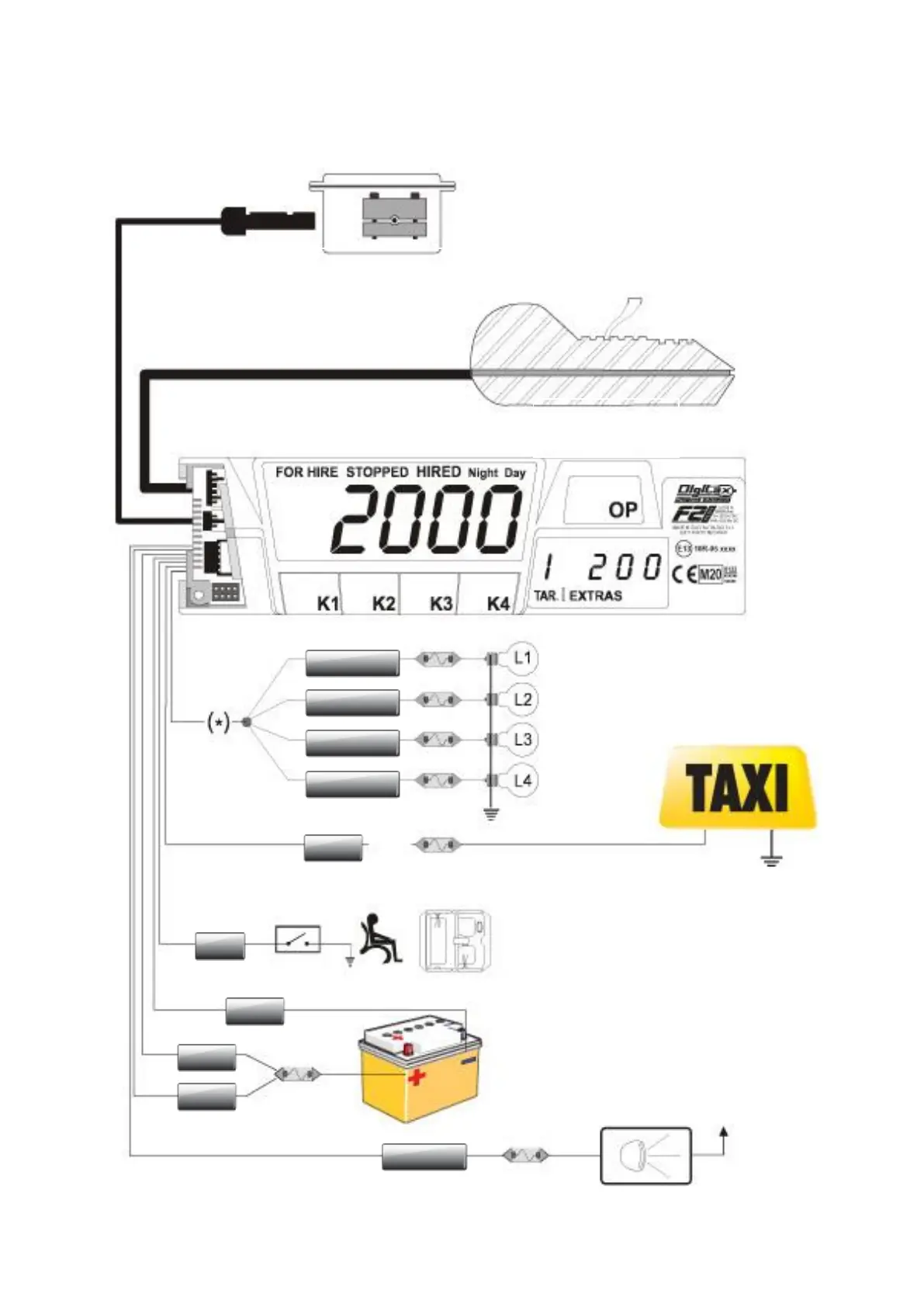

Electrical Connections Table
PRINTER
TRANSDUCER
GREY (F)
VIOLET (G)
GREEN (H)
YELLOW (J)
Max. 3 watts
Max. 25 watts
WHITE
Fuse 2 A
PASSENGER TOOL
Warning!
The taximeter is not provided with his own set of
fuses. You must install them by yourself following
the scheme. You will be responsible for every
damage that you can cause for the omission of
these fuses.
Digitax rejects every legal responsibility.
Fuse 2 A
RED
RED
Fuse 2 A
Car Lights Switch
+ 12 V
BROWN
BLACK
Fuse 2 A
PINK
