UNIVERSAL MECCANICAL TRANDUCER:

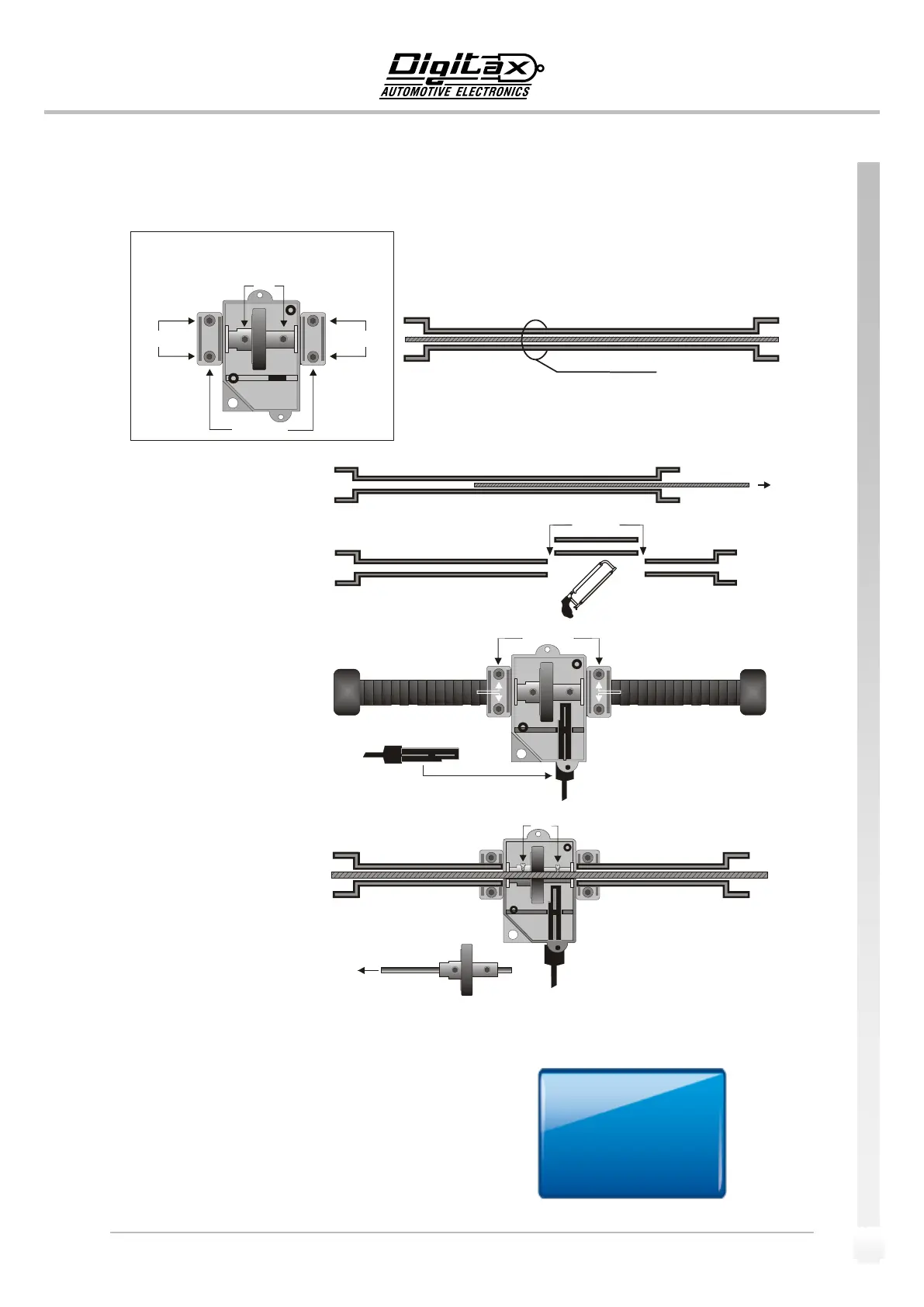

How to Assemble
1) Take out the internal wire
from the shielding.
2) Shorten the shielding by 36
mm
3) Insert both ends of the
shielding in the clamps and
tight the 4 screws B
4) Loosen the 4 screws (A)
and insert the internal wire.
Do not tight the 4 screws A*.
* Attention: when you insert the
internal wire, the dummy shaft must
come out and be disposed off.
A) Re-assemble the transmission cable in the car, connecting
it to both the gear box and the odometer.
B) Drive about 100 m to allow the internal wire to find its
original position.
C) Tight the 4 screws A.
D) Insert the sensor’s probe.
E) Fix the sensor’s cap to end the sensor’s assembling
operation and to have the sensor fully operative.
Electrical Connections
Red Cable = Power Supply
(5 Vcc to 24)
White Cable = Output Signal
(open collector)
Shield = Ground
