FX20 Operator
’
s Manual
Service - 71
200 Hour
CMW
200 Hour

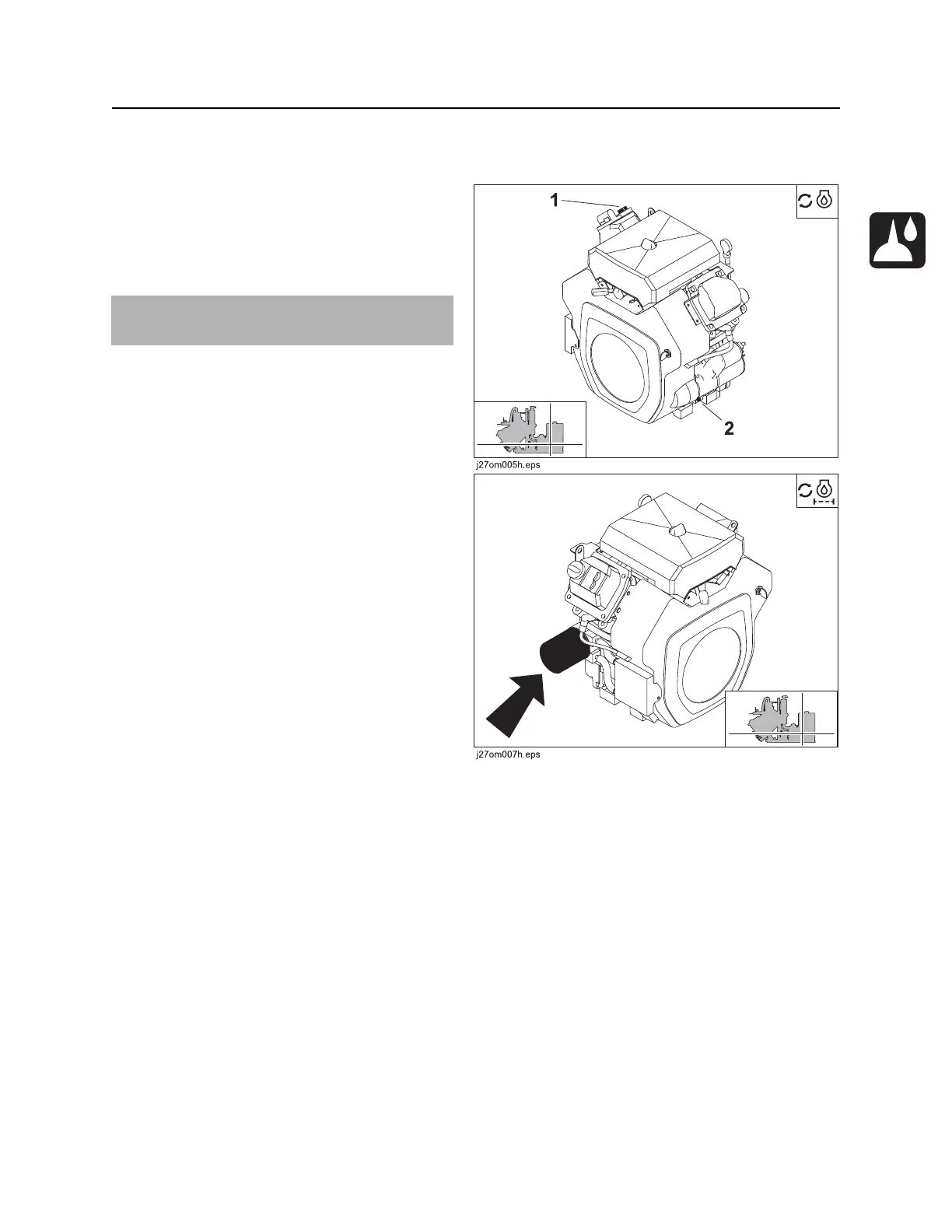

Change Engine Oil and Filter
Change engine oil every 200 hours. Drain oil (2)
and replace filter (sho
wn below). Add 1.7-1.9 qt
(1.6-1.8 L) of GEO at fill (1).
IMPORT
ANT
:
Use oil specified in
“Engine Oil
T
emperature Chart” on pa
ge
57.
70
72
Table of Contents
Table of Contents
7
Overview
1
Foreword
5
Table of Contents
7
Safety
9
Guidelines
10
Safety Alert Classifications
11
Safety Alerts
12
Emergency Procedures
15
Electric Strike Description
15
If an Electric Line Is Damaged
16
If a Gas Line Is Damaged
17
If a Fiber Optic Cable Is Damaged
18
If Machine Catches on Fire
18
Controls
19
Operation Overview
27
Planning
28
Setting up at Jobsite
28
Vacuuming
28
Leaving Jobsite
29
Potholing
29
Storing Equipment
29
Prepare
31
Gather Information
32
Arrange for Traffic Control
32
Plan for Emergency Services
32
Prepare for Working Near Existing Utilities
32
Inspect Jobsite
33
Prepare Jobsite
34
Prepare Excavation Point
34
Check Supplies and Prepare Equipment
35
Assemble Accessories
35
Check Supplies
35
Prepare Equipment
36
Transport
37
Lift
38
Points
38
Procedure
38
Attach Skid to Trailer
39
Attach Skid to Truck Bed
39
Haul
40
Inspect Trailer
40
Hitch Trailer
40
Unhitch Trailer
41
Vacuum and Pothole
43
Connect Hoses
44
Start Unit
44
Remove Debris
45
Procedure
45
Pothole
46
Drain Tank
48
Complete the Job
51
Antifreeze Vacuum Excavation Unit
52
Add Antifreeze
52
Reclaim Antifreeze
52
Disconnect
53
Rinse Equipment
53
Stow Tools
53
Service
55
Default Chapter
56
Precautions
56
Recommended Lubricants/Service Key
56
Each Use
58
10 Hour
59
25 Hour
65
50 Hour
66
100 Hour
71
Hour
71
Hour
72
1000 Hour
73
2000 Hour
73
Mile
74
3000 Mile
75
Mile
76
As Needed
77
Specifications
81
