Operation Elite Control

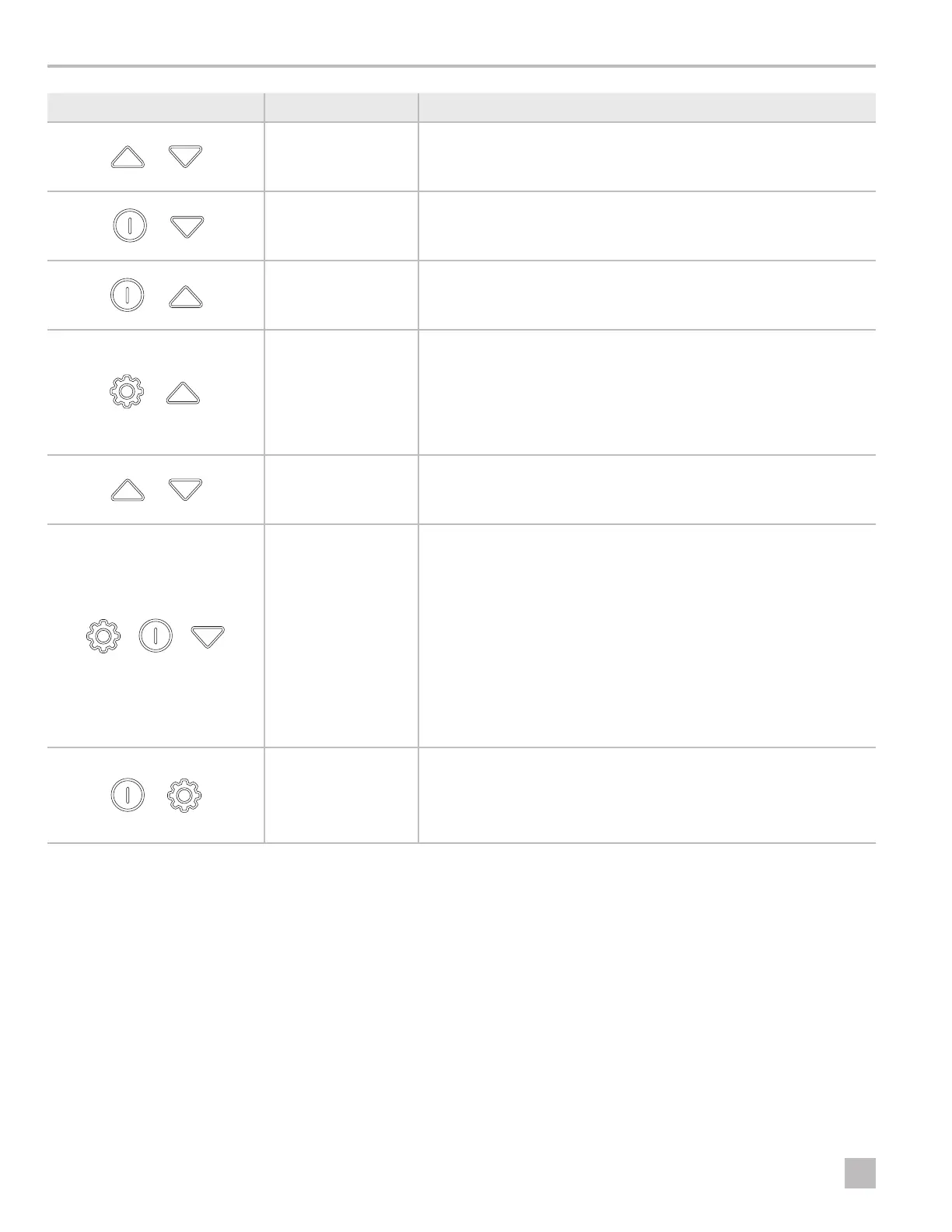

Button Combinations Button Names Function
&
Up & Down
Display the outdoor temperature: Press simultaneously and hold.
The display shows the outdoor temperature reading while this combination is
held.
&
Power & Down
(CW only)
Display the chilled-water-inlet temperature: Press simultaneously and hold.
&
Power & Up
(DX only)
Display the pump sentry water temperature: Press simultaneously and hold.
&
Mode & Up
Enter the programming menu:
• With the control in OFF mode, press the following buttons in this order:
Mode, Up, Down, and Mode. P1 appears on the display. The display will
alternate between the parameter number and the current setting.
• Navigate using the Mode and Fan buttons and adjust a parameter setting
using the Up and Down buttons.
• Press the Power button once to save changes and return to OFF mode.
&
Up & Down
Set new default parameters:
While in PROGRAM mode, press simultaneously and hold for three seconds.
, ,
AC Power set to Off &
then Mode, Power, or
Down
Disconnect the AC power, then press the specified button immediately aer
reconnecting the AC power and while all LEDs are illuminated during power-on
reset for the following information.
• View the fault history log: press the MODE button.
• Exit the fault history log: press the POWER or MODE button once, and wait
30 seconds.
• Clear the fault history log: press simultaneously the POWER and DOWN
buttons while viewing the fault history log.
• Display the compressor run-time hour meter: press the DOWN button. This
meter displays hours of compressor usage, with a maximum capture time of
65,536 hours.
• Enter the self-test program: press the POWER button. Use the self-test
program to diagnose problems and test the air conditioning system.
& ,
Power & Mode
Restore factory default settings:
• Turn off the air conditioning unit.
• Press simultaneously and hold the POWER and MODE buttons.
• Turn the air conditioning unit on, and then release the buttons when the
display reads IP.
7.4 Programming the Control
I
If your AC has a Shaded-Pole (SP) fan motor
instead of a Split-Capacitor (SC) High-Velocity
(HV) fan motor, you must change the parameter
P-14 setting to shaded-pole (SP) before operating
the equipment. SP units are recognizable by an
overhanging blower motor. Only reprogram the
fan motor type parameter if you do not have an HV
blower.
I
For CW Only: Standard air handlers come
equipped with chilled-water bypass valves.
However, for no-valve air handlers, the fan must be
set to cycle on demand (CYC).
I
For DX Only: If your air conditioning unit is cool-
only (if it does not have a reversing valve), you
must change the parameter P-33 setting from heat
pump (HP) to cool only (CL). Refer to “Selecting a
Parameter” on page 16.
– You must change the parameter before setting the
Automatic mode for a cool-only unit.
