Dometic RM2354 Installation Manual

23
EN
Refrigerator

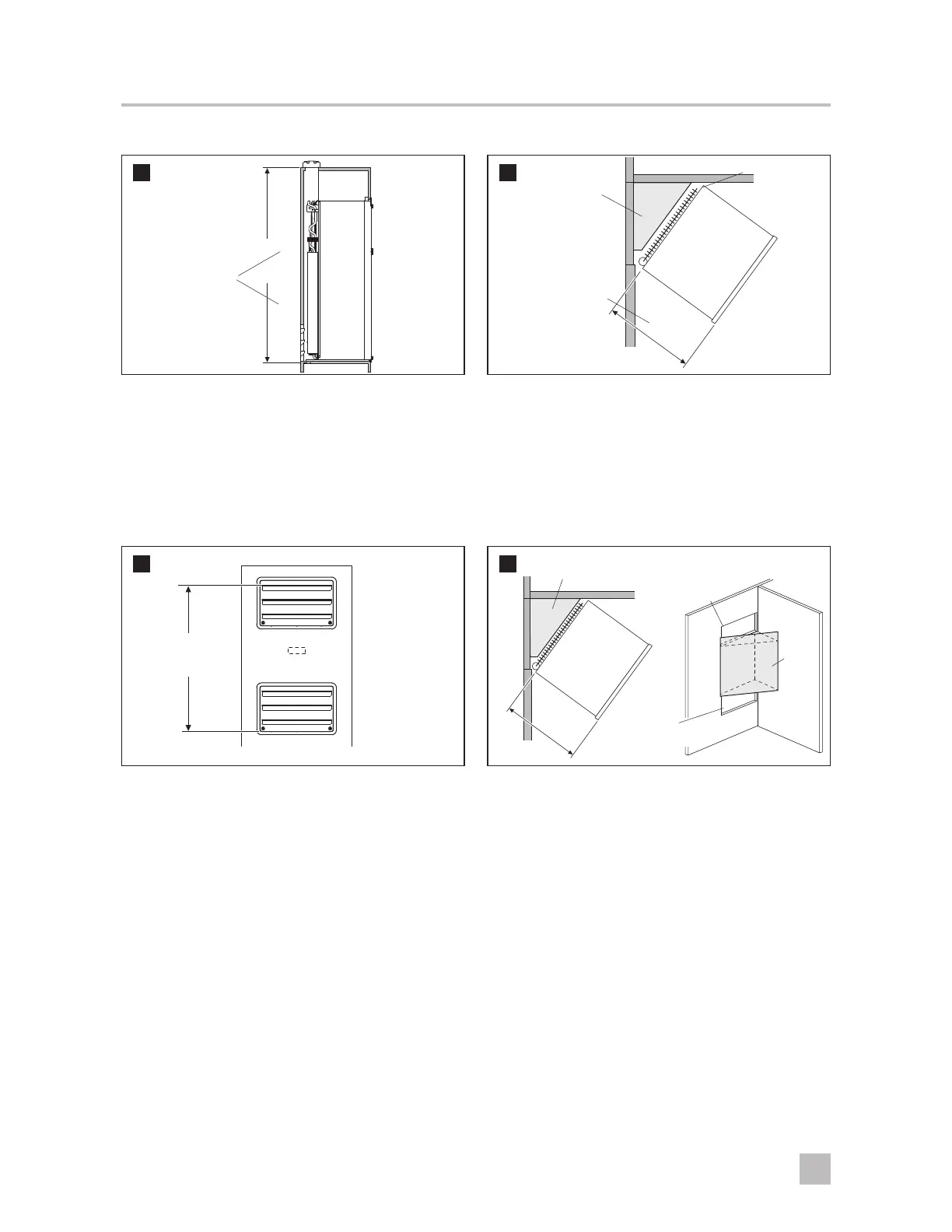

Corner application with roof vent
Side
View
29
Minimum
Ventilation
Height
➤ Confirm the ventilation height. Refer to "4.4
Minimum ventilation heights" on page 9.
Top
View
30
Baffle
Recess
Depth
➤ Confirm the recess depth. Refer to "5.5 Recess
depth" on page 22.
➤ Install the lower side vent. Refer to "Side vents" on
page 19.
➤ Install the roof vent. Refer to "Roof vent
application" on page 17.
Corner application with upper and lower side vents
31
Minimum
Ventilation
Height
*Position may
vary by model
*Fan
➤ Confirm the ventilation height. Refer to "4.4
Minimum ventilation heights" on page 9.
32
Upper
Side Vent
Lower
Side Vent
Baffle
Baffle
Recess
Depth
➤ Confirm the recess depth. Refer to "5.5 Recess
depth" on page 22.
➤ Install the lower side vent. Refer to "Side vents" on
page 19.
➤ Install the upper side vent. Refer to "Side vents" on
page 19.
Vent Cutout
Vent Cutout
Roof Vent
