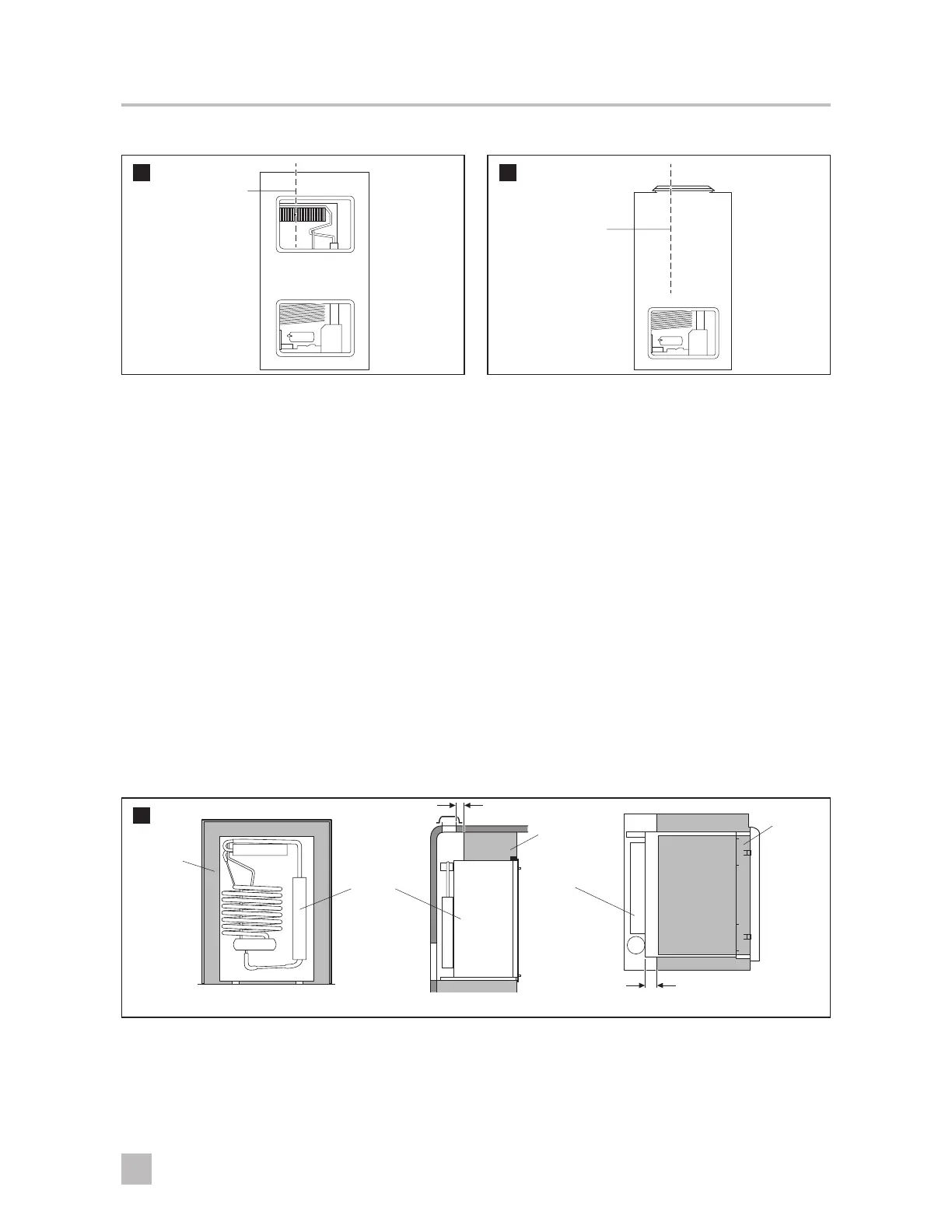

24
EN
Refrigerator
Offset vent - upper and lower side vent
33
Center of
Refrigerator
Offset vent - side and roof vent
34
Center of
Refrigerator
I
Prior written approval and safety certification must be obtained from Dometic Corporation for this
application.
➤ Confirm the ventilation height. Refer to "4.4 Minimum ventilation heights" on page 9.
➤ Confirm the recess depth. Refer to "5.5 Recess depth" on page 22.
➤ Install the lower side vent. Refer to "Side vents" on page 19.
➤ Install the upper side vent or roof vent. Refer to "Side vents" on page 19, or "Roof vent application" on
page 17.
5.6 Placing the insulation
I
Read before proceeding:
• Dimensions will vary by model.
• If there is more than 1/4" between the side or top of the refrigerator and the inside of the enclosure, fill the
space with insulation, baffles, or other non-flammable fabricated seals.
• Do not allow insulation to come into contact with the cooling unit.
➤ Cut the insulation two to three inches shorter than the depth of the enclosure.
➤ Secure the insulation to the enclosure walls and ceiling. This will prevent it from shiing when the refrigerator
is installed.
35
2" – 3"
Rear Side To p
2" – 3"
Insulation
Insulation
Insulation
Refrigerator
Refrigerator
To Next Page
