2 System Layout
2.1 Front Panel Layout
2 Note: The matrices shown below are with the LCD on the front panel and rear
mounted switches. Matrices with front mounted switches have same
dimensions regardless of switch location. See also Appendix A and B.
Figure 2-1 shows the 2U, 3U and 4U Model general layout, which includes:
• 2 handles
• A touch screen LCD

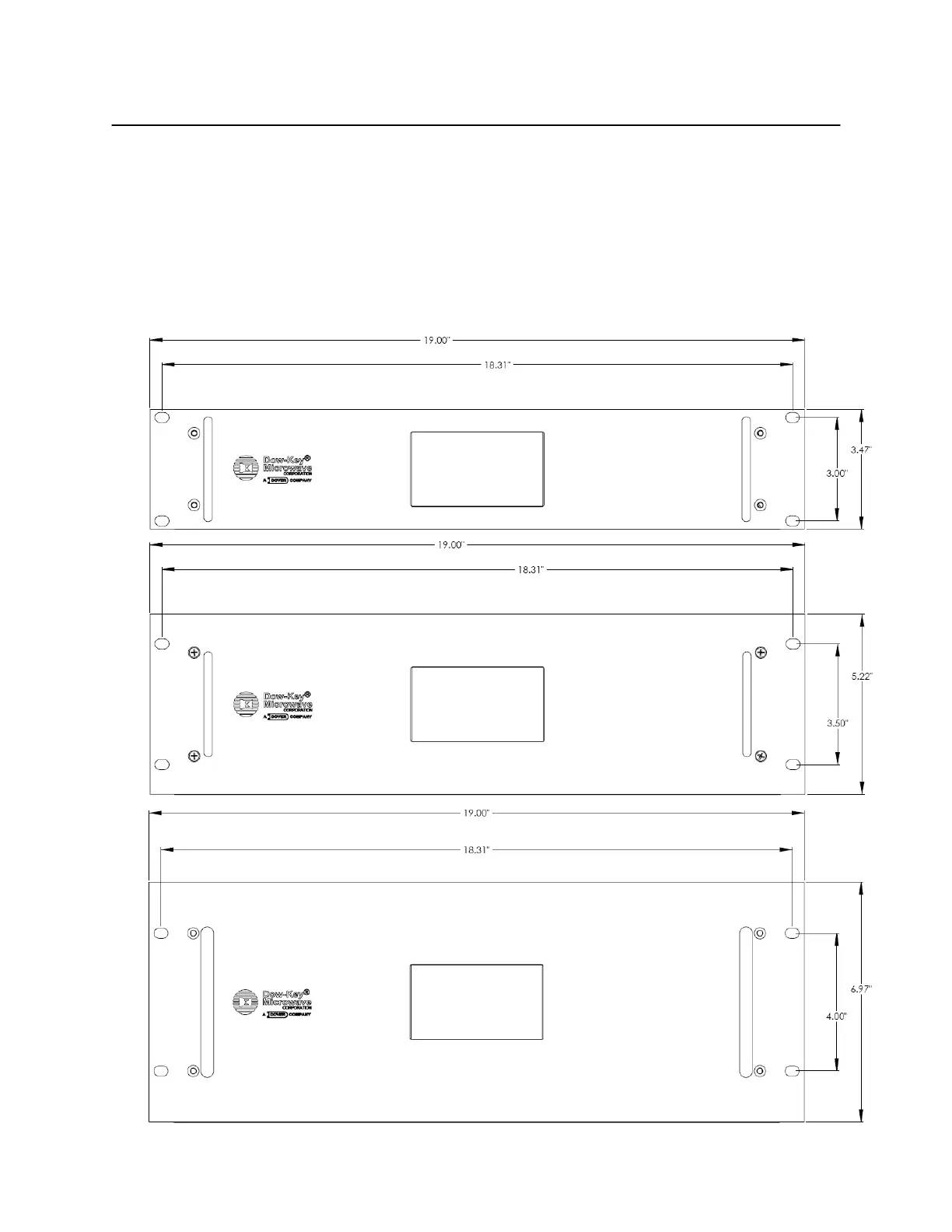

Figure 2-1, 2U, 3U and 4U Front Panel Layout
