Disposal
Dräger X-dock 5300/6300/6600 27

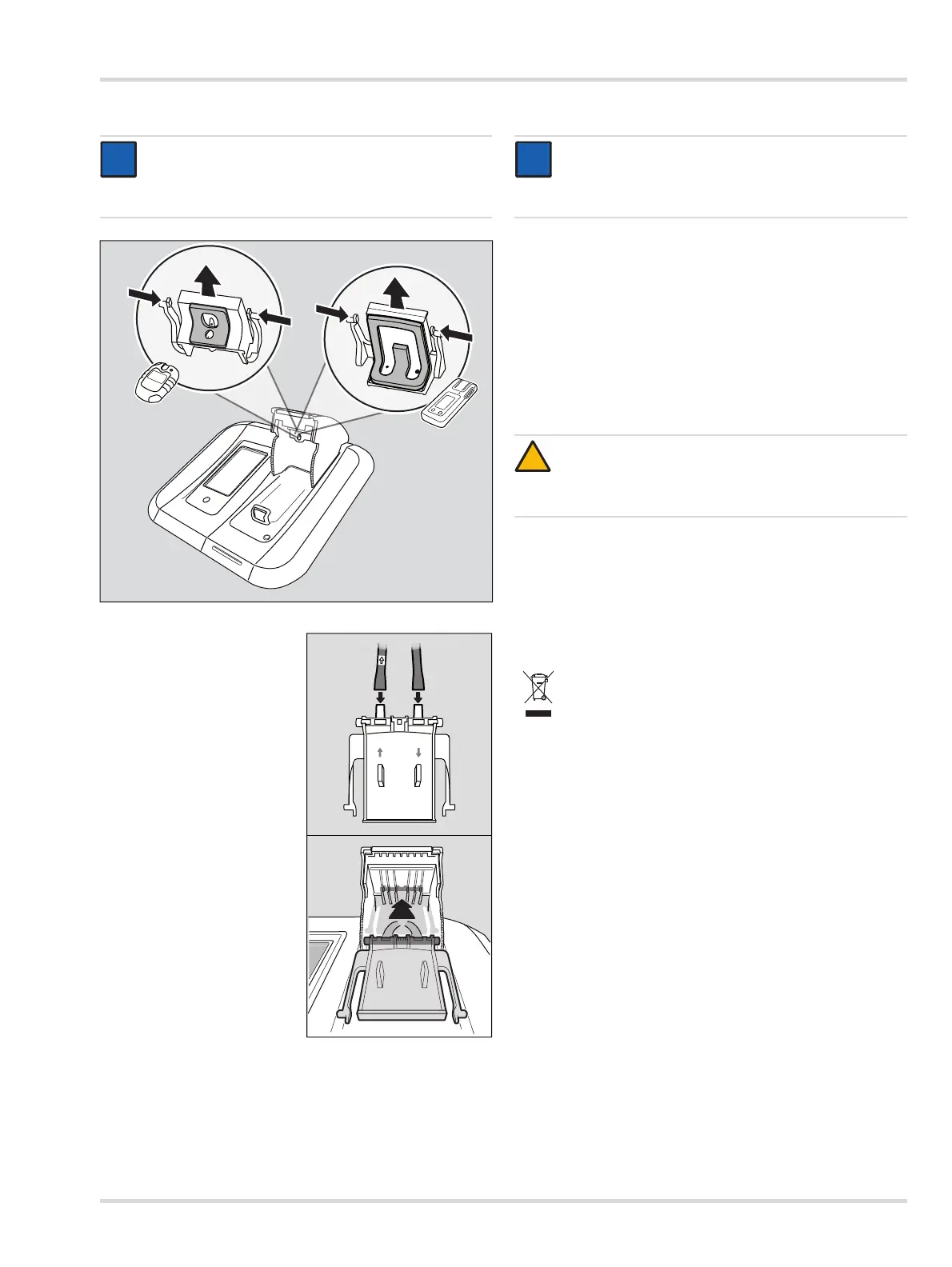

9.5 Changing the sealing insert
1. Open the module cover.
2. Squeeze the two external
locking lugs in and
withdraw the sealing insert
downwards.
3. Release the hoses from
the sealing insert.
4. Replace the sealing insert.
5. Fit the hoses to the new
sealing insert (note the
arrows on the sealing
insert and the hose).
6. Squeeze the external
locking lugs in and insert
the sealing insert into the
module cover until the
locking lugs engage.
7. Check that the sealing
insert is fitted correctly in
the module cover.
9.6 Changing the fresh air filter
1. Unscrew the old fresh air filter.
2. Screw in the new fresh air filter.
9.7 Calibrating the touchscreen
1. At system start hold the function key until the calibration
screen is displayed.
2. Press each of the 5 position markers displayed in
succession.
9.8 Cleaning
The device does not need any special care.
 If very dirty, the equipment can be carefully wiped down
with a damp cloth.
 Carefully dry the device using a cloth.
10 Disposal
NOTICE
The sealing inserts must be changed at regular
intervals (e. g. at each inspection) or sooner as
required.
i
i
00633286.eps
00733286.eps
NOTICE
With regular use and depending on the conditions of
use, the fresh air filter should be changed typically
every 2 months.
CAUTION
Abrasive cleaning implements (brushes, etc.),
cleaning agents and cleaning solvents can destroy the
fresh air filter.
This product must not be disposed of as municipal
waste. This is indicated by the adjacent icon.
You can return this product to Dräger free of charge.
For information please contact the national marketing
organisations and Dräger.
i
i
!
