8 Dräger X-dock 5300/6300/6600
Basics
4Basics
4.1 Switching the station on or off
To switch the station on:
 Press and hold the key on the master for approx.
1 second.
The following information is displayed during the switch-on
process:
 Software version number
To switch the station off:
 Press and hold the key on the master for approx.
3 seconds.
The station switches off.
Standby mode:
 Standby mode is activated after approx. 10 minutes with no
activity on the station (input via touchscreen or opening/
closing of a module cover).
 When the station switches over to standby mode, any user
logged in will be logged off automatically. The user will
need to log back in again when switching back to operating
mode.
 The touchscreen is switched off in standby mode.
 The charging function of X-am 125+ modules with charging
function is not affected by standby mode. The charging
process is not interrupted.
 To switch to operating mode:
 Tap the function key or
 touch the touchscreen or
 open or close a module flap.
4.2 Initial setup of station
1. Switch on the station, see chapter 4.1 on page 8.
2. Log in with the preconfigured "admin" user
(user name: admin, password: 123456), see chapter 4.5
on page 9.
3. Configure the test gas inlet, see chapter 4.7 on page 10.
4. Change language if necessary:
a. Select > System configuration > Language.
b. Select desired language.
c. Confirm selection with OK.
5. Set date and time where necessary:
a. Select > System configuration > Date & time.
b. Make the desired settings.
c. Confirm settings with OK.
6. If required, change standard tests (see chapter 4.9 on
page 14.
7. If required, set up network (see chapter 6.4.3 on page 20).
4.3 Touchscreen display
The buttons on the touchscreen display change dynamically
depending on the task being executed. To execute an action,
select the corresponding icon on the display.
Press the key on the master at any time to access the start
screen.

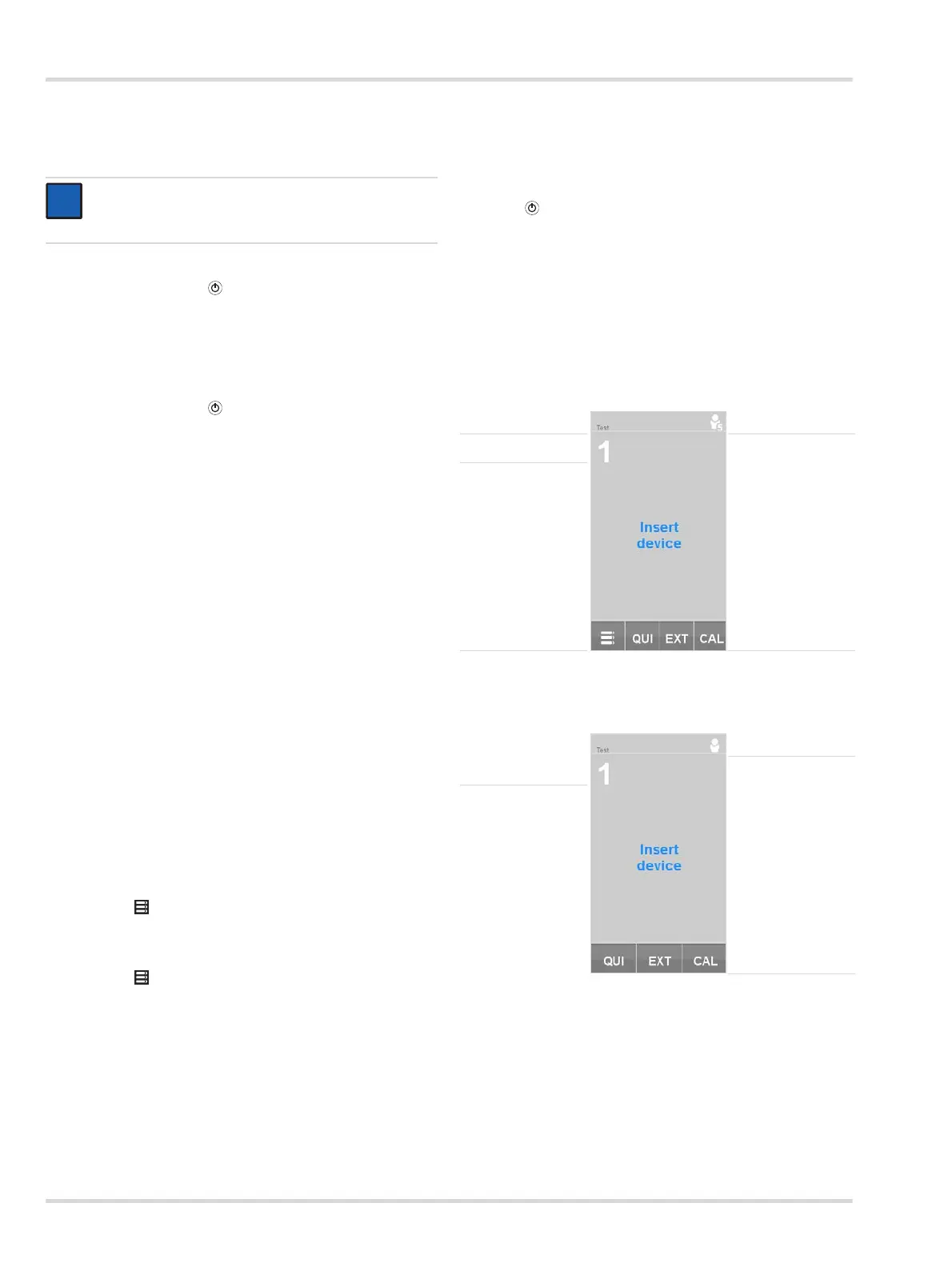

4.4 Start and test screens
The keys on the start and test screen change dynamically
depending on the log-in status, single-mode status and the
number of modules in use.
Start screen: User logged in
(Single mode deactivated)
Start screen: User not logged in
(Single mode deactivated)
NOTICE
If no action has occurred for 10 minutes, the station
switches automatically to standby mode.
i
i
Logged-in
user
►◄
Log user
in or out
Instrument field ►
Menu ►◄Favourites bar
◄
Log user
in or out
Instrument field ►
◄ Favourites bar
