8 Installation
The actual connection can vary depending on the chosen installation option. The connection
shown is only an example.
8.1 Installation and routeing of hoses and pipes
❯
Establish connections between the pipe system and the unit using the flexible hoses supplied. This
will prevent vibrations from being transmitted to the pipe system.
❯
The connection between the pipe line and unit suction connection should be kept as short as possi-
ble and straight, without bends.
❯
Install the drain hoses with a downward gradient so that the waste water can drain off.
❯
Waste water connections must be implemented in accordance with applicable local and national reg-
ulations.

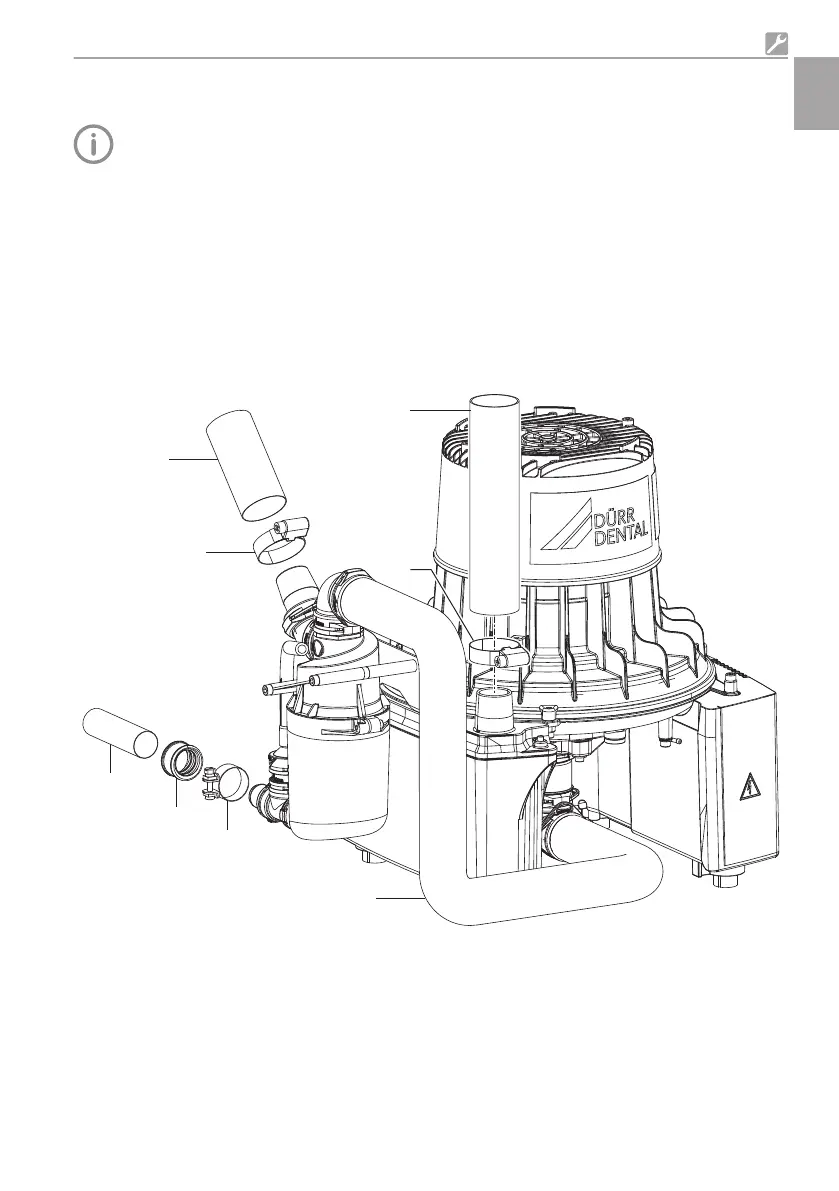

V 300 S
2
2
3
1
1
4
5
6
1 Hose clamp 25-40 mm
2 Suction hose Æ 30 mm (internal)
3 Waste air pipe (aluminium)Æ 30 mm inside
4 Hose clip Æ 28 mm
5 Hose sleeve
6 Waste water hose Æ 20 mm (internal)
Assembly
7119100007L02 1909V001 29
EN
