9 Electrical connections
DANGER
Electric shock due to incorrectly con-
nected device
❯
Never install a mains plug instead of
the fixed connection.
NOTICE
Short circuit due to defective lead
❯
Do not route wires near hot surfaces.
❯
Before connecting, check that the power sup-
ply voltage matches the voltage specifications
on the type plate.
❯
Connect control line to control connection.
❯
Connect mains cable to mains connection.

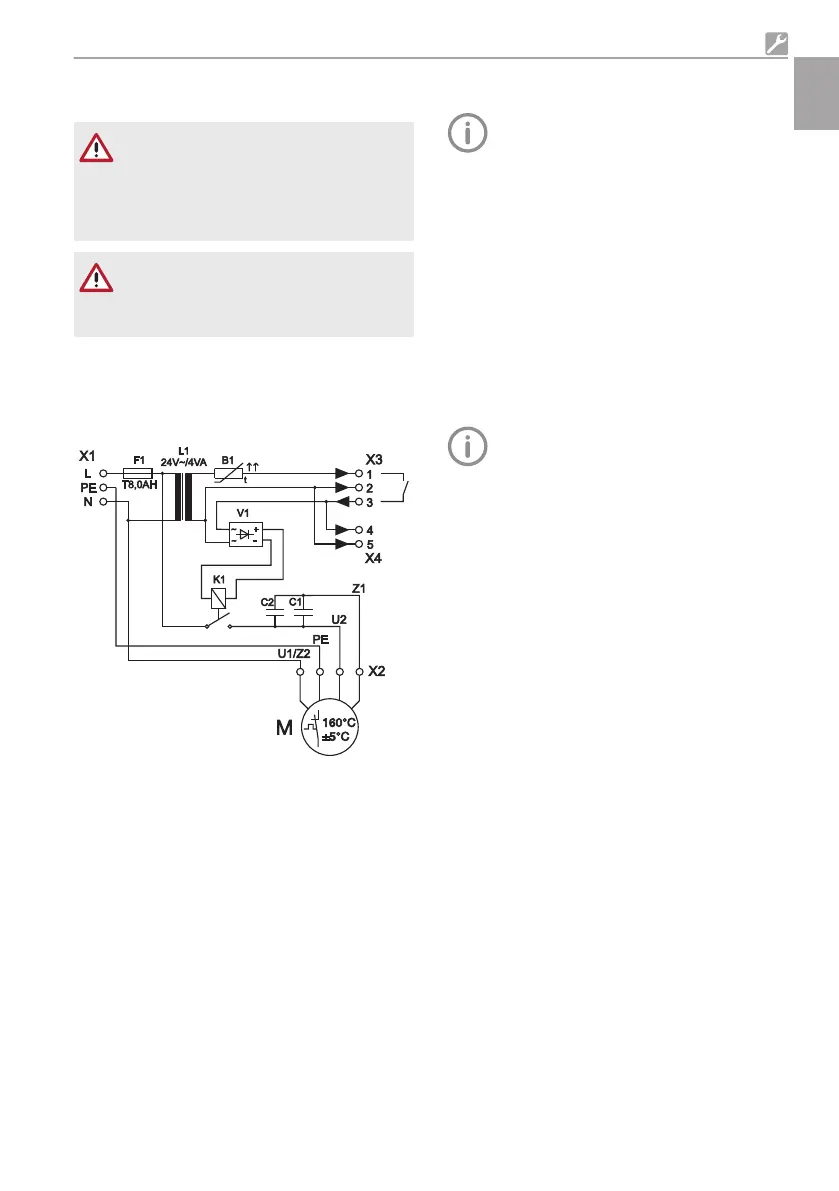

X1 Mains connection
X2 Motor connection
X3 Control connection 24 V AC / max. 80 mA
X4 Control signal output 24 V AC / max. 20 mA
10 Commissioning
In many countries technical medical prod-
ucts and electrical devices are subject to
regular checks at set intervals. The owner
must be instructed accordingly.
❯
Turn on the unit power switch or the main
surgery switch.
❯
Carry out a function check of the system.
❯
Check all connections for leak tightness.
❯
Carry out an electrical safety check in accor-
dance with applicable regulations (e.g. regula-
tions concerning set up, operation and applica-
tion of medical devices) and record the results
as appropriate, e.g. in the technical log book.
❯
Carry out and document the instruction and
handover for the unit.
A sample handover report is included in
the attachment.
Assembly
7119100007L02 1909V001 31
EN
