4.9
IO Board
Removing IO Board
Remove IO Board according to the follow
ing procedures and Figure
s 4
-
23.
1.
Disconnect the following cable fr
om the connector on
IO Board:
-
IO Board cable from JDB1
2.
Remove three M2.0x3.0x4.5 black Phillips h
ead screw securing IO Board.
3.
Remove the IO panel Myla.

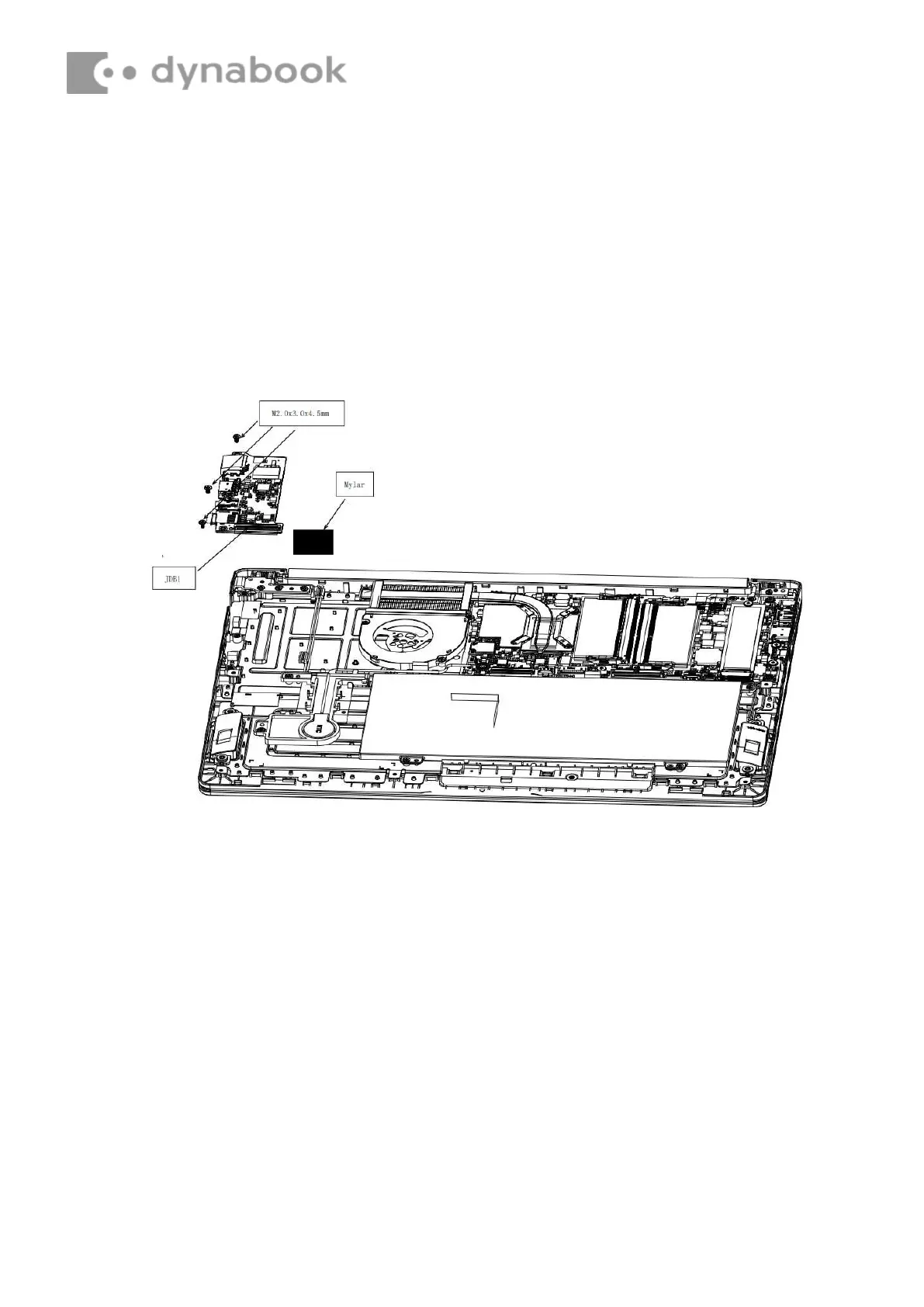

Figure 4
-
23 Removing IO Board
20
22
Table of Contents
Dynabook Laptop Components Classified as Requiring Selective Treatment
1
Tools Required
1
Table of Contents
1
Removing Base Enclosure
2
Removing Battery Pack
3
2. Removing the SSD
4
Removing SSD
4
3. Removing the LCD and Printed Circuit / Wiring Boards
5
4.2 Base Enclosure
6
Removing Base Enclosure
6
Installing Base Enclosure
7
4.3 Battery Pack
8
Removing Battery Pack
8
Installing Battery Pack
9
4.4 SSD
10
Removing SSD
10
Installing SSD
11
4.5 SODIMM
12
Remove SODIMM according to the following procedures and Figures 4-14.
12
4.6 LCD Module Assembly
14
Removing LCD Module Assembly
14
Installing the LCD Module Assembly
16
4.7 CPU Cooling Module and Fan
17
Remove CPU Cooling Module and Fan_VGA SKU only
17
4.8 System Board
19
Removing System Board
19
Install System Board according to the following procedures and Figures 4-21.
20
4.9 IO Board
21
Removing IO Board
21
Install IO Board according to the following procedures and Figures 4-23.
22
4.10 Speaker
23
Removing Speaker
23
Installing Speaker
24
4.11 LCD Module Mask
25
Remove the LCD Module Mask
25
Installing the LCD Module Mask
27
4.12 LCD Panel
28
Removing the LCD Panel
28
Installing the LCD Panel
30
Installing the LCD panel
30
4.13 CCD Module
31
Removing the CCD Module
31
Installing the CCD Module
32
4.14 Touch pad
33
Removing Touch pad
33
Installing Touch pad
34
AC Adapter, External cables provided with the AC adapter and USB cables
35
• Printed Circuit Board >10 cm2
35
