Computer 19 V DC

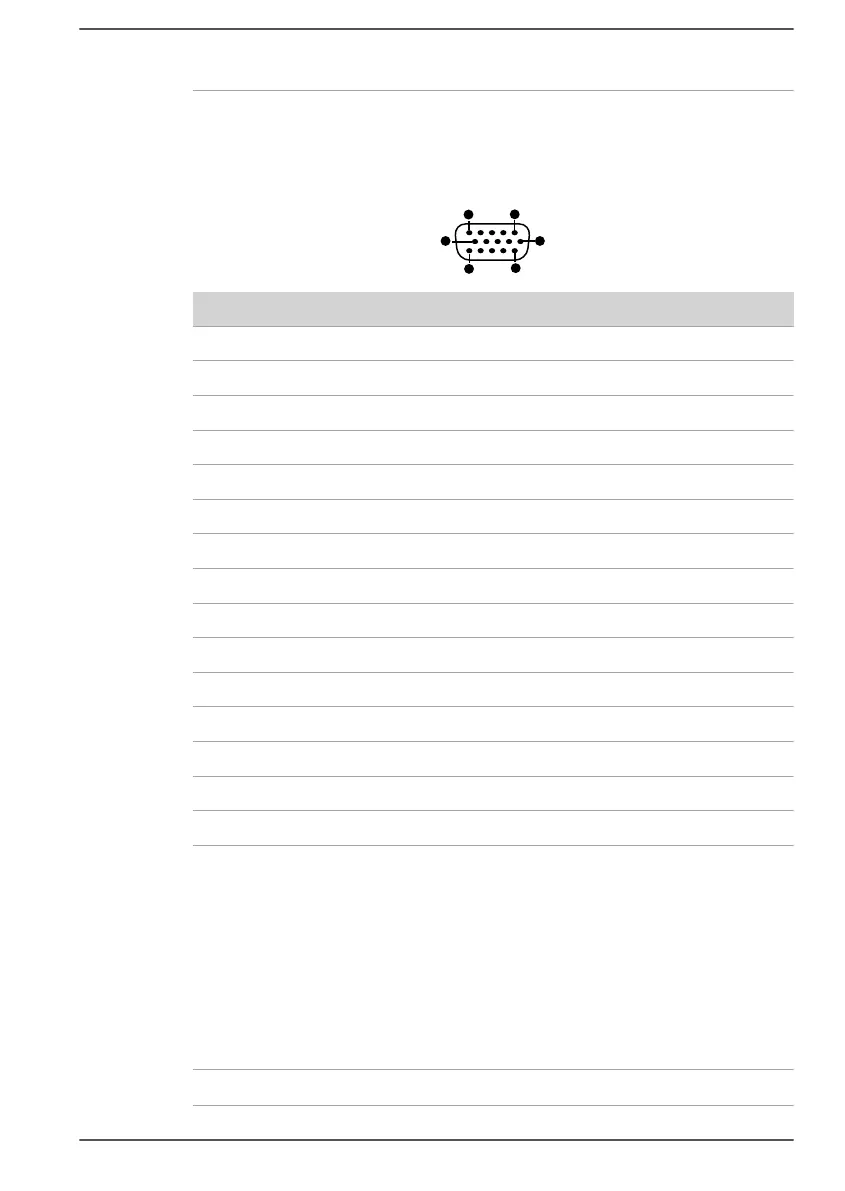

External RGB monitor port pin assignment
Pin Signal Name Description I/O
1 CRV Red Video Signal O
2 CGV Green Video Signal O
3 CBV Blue Video Signal O
4 Reserved Reserved
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 +5V Power Supply
10 GND Ground
11 Reserved Reserved
12 SDA Serial Data Signal I/O
13 HSYNC Horizontal Sync Signal O
14 VSYNC Vertical Sync Signal O
15 SCL Serial Clock Signal O
I/O (I): Input to computer
I/O (O): Output from computer
AC Power Cord and Connectors
The AC input plug of the power cord must be compatible with the various
international AC power outlets and the cord must meet the standards for
the country/region in which it is used. All cords must meet the following
specifications:
Wire size:
Minimum 0.75 mm
2
User's Manual 7-2
