Operation
Eaton 9135 5000/6000 VA UPS User’s Guide 164201726—Rev 4 www.eaton.com/powerquality 34

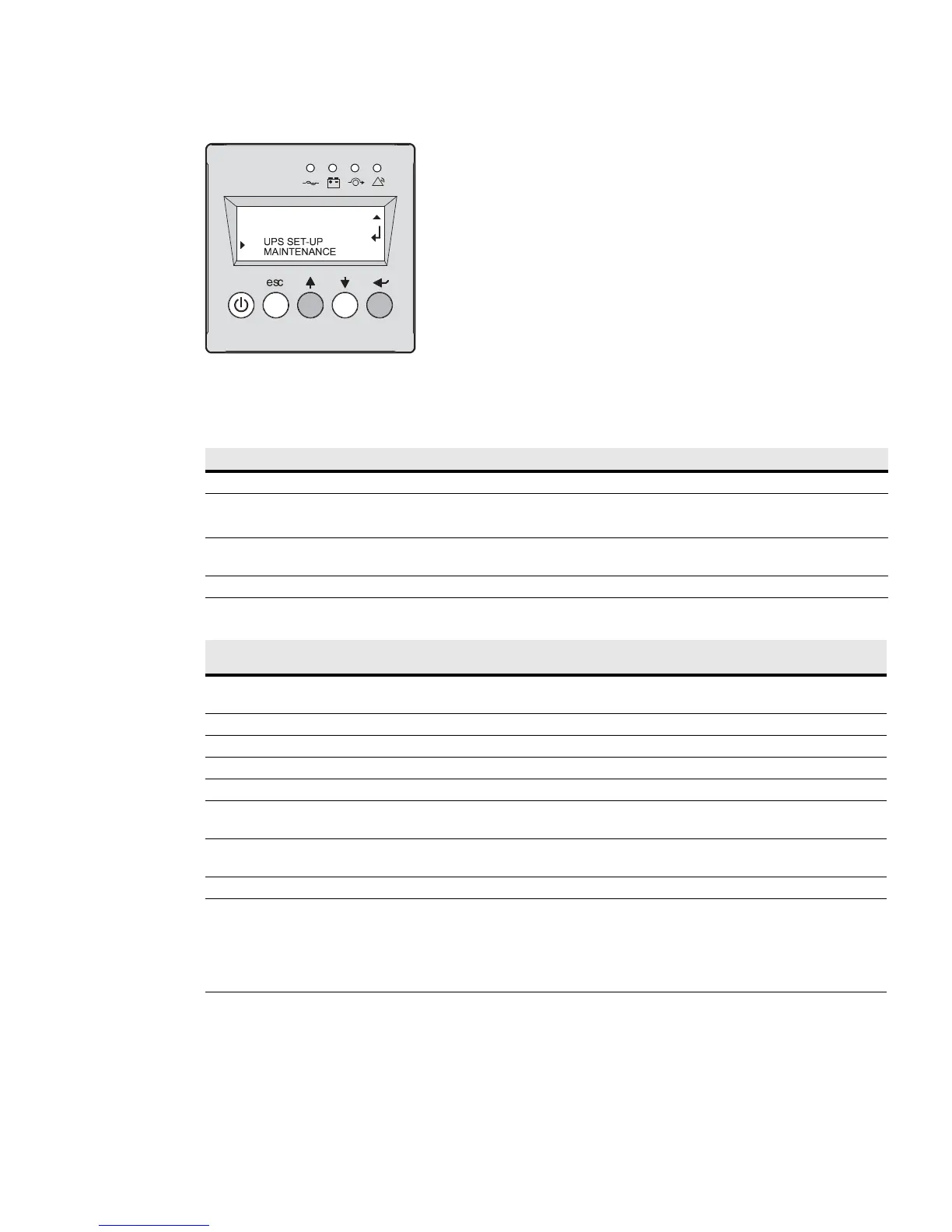

Figure 28. Access to UPS Setup
The following tables display the options that can be changed by the user.
Table 5. Local Settings
Function Factory Setting Options
Language English French, German, Italian, Portuguese, Spanish
Date / Time Format International
(DD-MM-YYYY/HH :MM)
US (MM-DD-YYYY/HH:MM AM/PM)
Date / Time Change GMT + 1
(Continental Europe)
MM-DD-YYYY/HH:MM adjustable
Audible Alarm Yes No
Table 6. Output Settings
Function Factory Setting Options Comments
Output Voltage G Models: 208V 200V / 208V / 220V /
240V / 250V
Freq Converter Disable Enable
Output Frequency G Models: 60 Hz 60 Hz User selectable under frequency-converter mode
Eco Mode Disable Enable See page 32
Slew Rate 1 Hz / sec 0.5 Hz / sec
Bypass Transfer
If bypass Ac nok?
Yes No Transfer to bypass if utility power is out of
tolerance
Interrupt Time 10 ms 20 ms, ...... , 200 ms Break time calibration during load transfer on
utility power out of tolerance
Overload Prealarm 105% 40%, 50%, 70% Alarm if threshold is overrun
Operating Mode I/T Network Industrial Select I/T network for computer loads. The UPS
will stay ONLINE during current limitation, such as
when taking on a load.
Select Industrial for service continuity. The UPS
will transfer to BYPASS during current limitation.
