UPS MAINTENANCE
Eaton 9395 UPS (450–825 kVA) Installation and Operation Manual S 164201725 Rev 4 www.eaton.com/powerquality
9-3
a. Remove one top screw and two bottom screws securing each UPM section
front panel (see Figure 4‐3 on page 4-4). Lift each panel straight up to
remove it from the panel hanger bracket at the top of the cabinet.
b. Remove one top screw and two bottom screws securing each ISBM section
front panel (see Figure 4‐2 on page 4-3). Lift the panel straight up to remove
it from the panel hanger bracket at the top of the cabinet.
c. If the UPS is a continuous static switch configuration, unfasten the front door
latch and swing the door open (see Figure 4‐1 on page 4-2).
d. Pull the foam filters over the screw heads on the cabinet mounted studs and
remove the filters from the cabinet.
e. Push the washed or new foam filters over the screw heads on the cabinet
mounted studs until seated against the cabinet.
f. Reinstall the UPM section front panels removed in Step a and secure with
the retained hardware.
g. Reinstall the ISBM section front panel removed in Step b and secure with
the retained hardware.
h. If opened, close the front door and secure the latch.

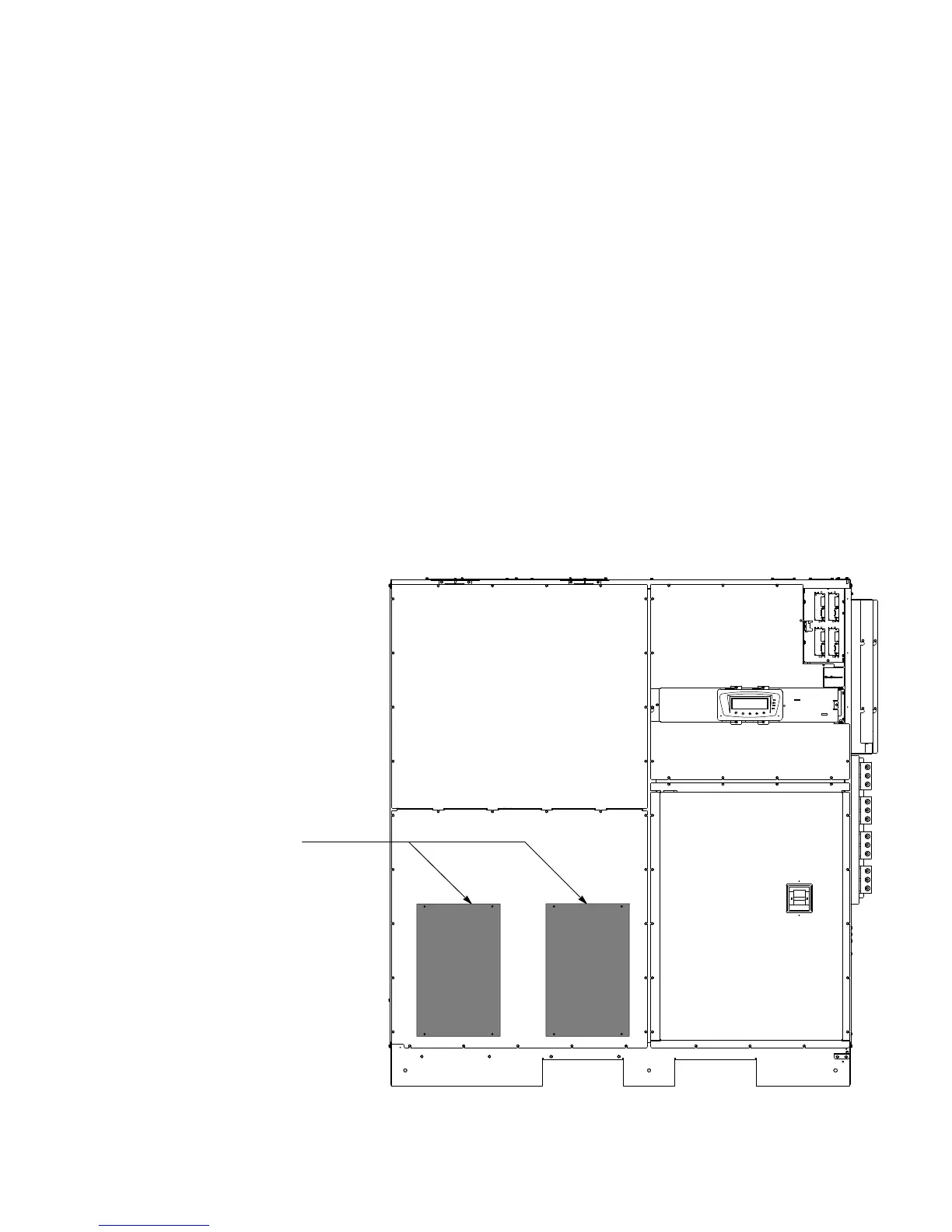

Bottom Left
ISBM Air Filters
Figure 9‐1. ISBM Section Air Filter Locations – Momentary Static Switch
