UPS Installation Plan and Unpacking
3-4 Eaton 93E UPS (300/400 kVA, 380/400/415V) Installation and Operation Manual

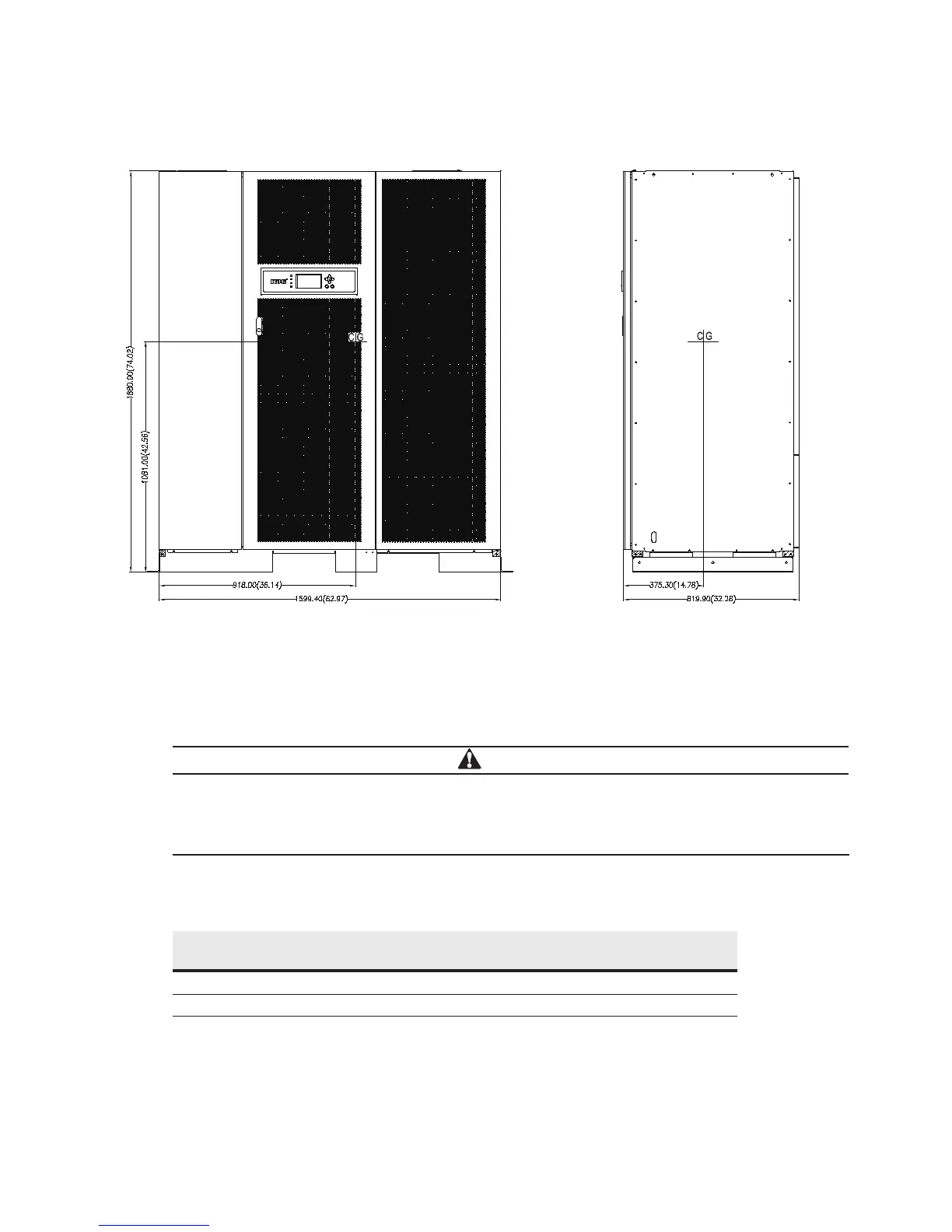

Figure 3-3. UPS Cabinet Centre of Gravity
Dimensions are in millimetres [inches]
Front View
Right View
CAUTION
If battery systems are located in the same room as the UPS, the battery manufacturer's
environmental requirements should be followed if they are more stringent than the UPS
requirements. Operating temperatures above the recommended range will result in decreased
battery life and performance, and may reduce or void the battery warranty.
The UPS ventilation requirements are shown in Table 3-4.
Table 3-4. Air Conditioning or Ventilation Requirements During Full Load Operation
Model Rating Input/Output Voltage
Heat Rejection
BTU/hr x1000 (kg-cal/hr)
Eaton 93E-400/300 300 kVA 380/380 400/400 415/415 46.45 (11709)
Eaton 93E-400/400 400 kVA 380/380 400/400 415/415 82.59(20816)
