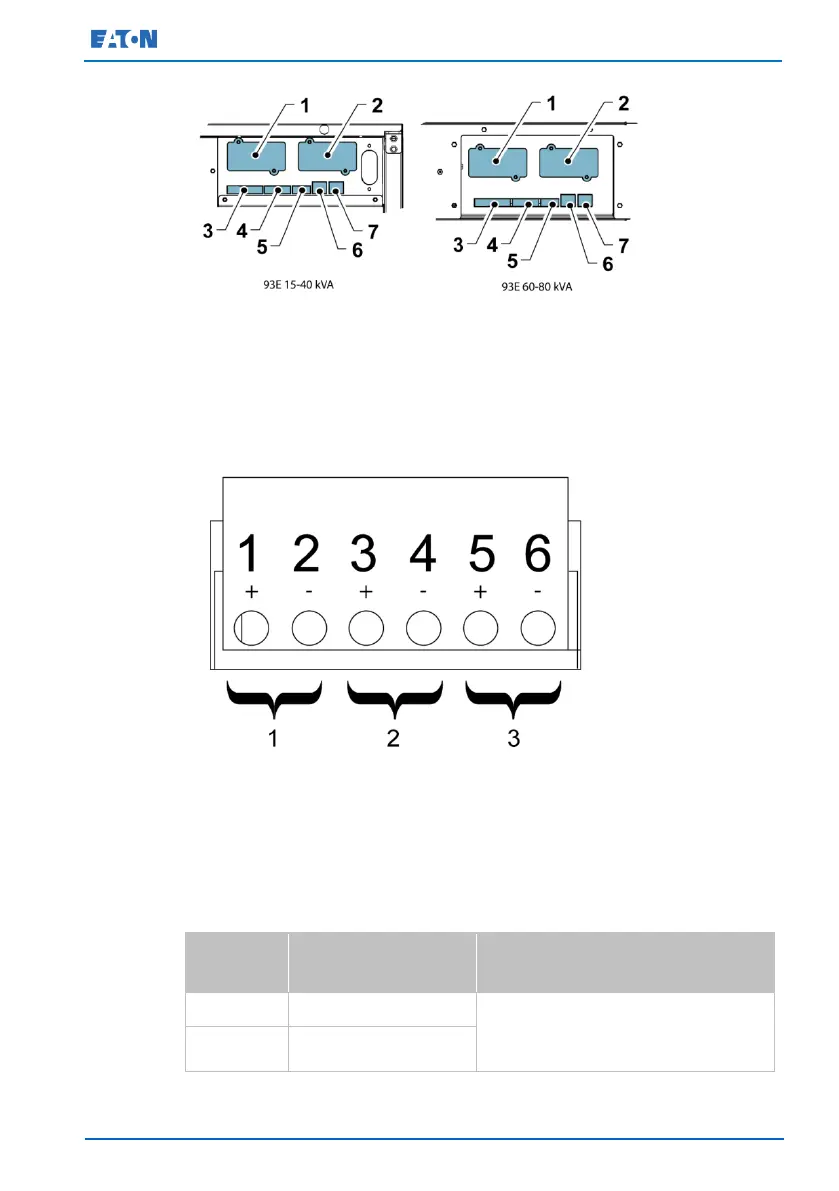

Figure 20. Interface terminal detail (terminal cover removed)
1. MiniSlot communication bay 2
2. MiniSlot communication bay 1
3. Signal inputs
4. Remote EPO terminals
5. Pull chain terminals
6. Parallel CAN input (RJ45)
7. Parallel CAN output (RJ45)
Figure 21. Signal input terminal block connector assignments
1. Signal input 1
2. Signal input 2
3. Signal input 3
Table 8. Signal input connections
Signal input
terminal
Name
Description
1
BA1: Signal input 1+
Input: Programmable UPS alarm,
activated by a remote dry contact
closure.
2
BA1: Signal input 1-
