Eaton 93PM G2 User Manual

OOuuttppuutt
The neutrals of all the UPSs must be connected. The shortest length of wire from the source to the UPS
must be a minimum of 95% of the length of the longest wire. The measurement is with respect to where
the UPS’s outputs are tied.
DDuuaall ssoouurrccee
The input feed and bypass feed may be separate sources. The sources must share a common neutral.
BBaatttteerryy ccoonnnneeccttiioonn
A separate battery shall be connected to each UPS, and the battery capacity for each UPS must be
identical.
MMOOBBss
Module Output Breakers (MOBs) allow the output of a UPS to be disconnected from other UPSs and the
system load for maintenance and service. Design considerations assume that each UPS has a Module
Output Breaker (MOB). The breaker should also disconnect the neutral for improved safety during
maintenance.
The MOB must have a Form “C” auxiliary contact. The NO contact is connected to the corresponding
UPS’s input used for signal input. The NC contact is used to disconnect the bypass pull-chain when the
MOB is open. Figure
22: Principle of paralleled UPS systems shows the principles of paralleled UPS
systems including MOBs and outputs from UPSs.
MMoobb oovveerrrriiddee
Users without MOBs installed can simply leave the MOB signal input disabled. The user should be aware
that systems without MOB have limited maintenance capability.
PPaarraalllleell ssyysstteemm ccaabblliinngg

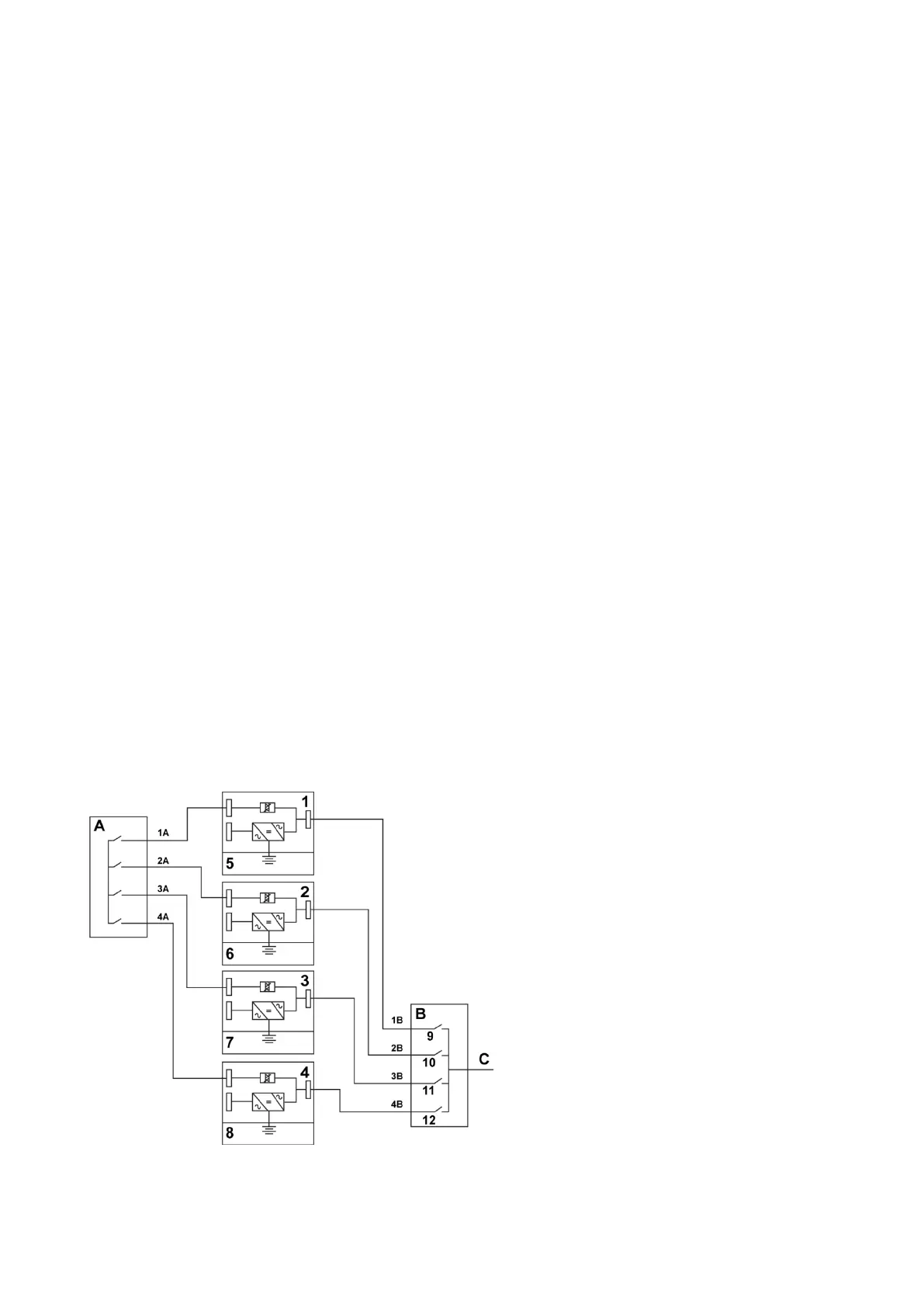

Figure 22. Principle of paralleled UPS systems
EATON 93PM G2 UPS USER’S AND INSTALLATION GUIDE P-164000956
-
February 2021 www.eaton.eu 5566
