Eaton 9PX User Manual

18 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02

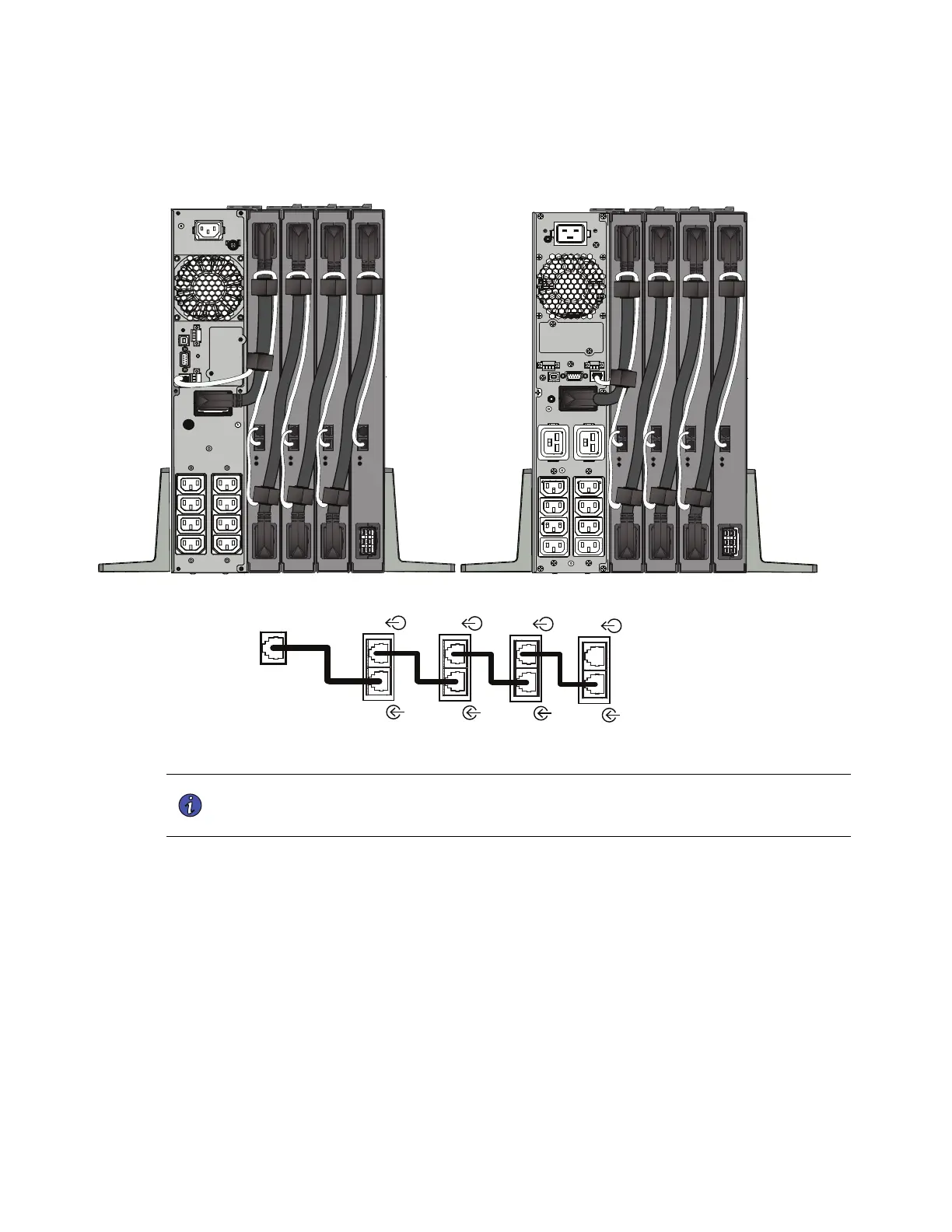

Figure 6. 9PXEBM Tower Mount Connections
9PXEBM48
9PXEBM72
Battery Comm
Battery Comm
Battery Comm
Battery Comm
UPS
EBM Communications wiring
EBM 1 EBM 2 EBM 3
EBM 4
NOTE The EBM communication wiring connections are directional and must be connected in
the correct sequence to ensure proper detection, regulation and lifecycle monitoring of
the integrated battery management system (BMS).
33..66 DDeetteeccttiinngg ootthheerr AAcccceessssoorriieess
Tip If you ordered other UPS accessories, refer to specific user manuals to check the connection to the UPS.
Detecting other Accessories

Eaton 9PX Specifications

General

Topology	Double Conversion Online
Output Voltage	200/208/220/230/240V
Input Voltage	200-240V
Form Factor	Tower or Rackmount (depending on model)
Battery Type	Sealed Lead-Acid (SLA)
Communication Ports	USB, Serial, Relay
Display	LCD
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0 to 40°C
Humidity	0-95% non-condensing
Certifications	CE
