Eaton 9PX User Manual

20 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02

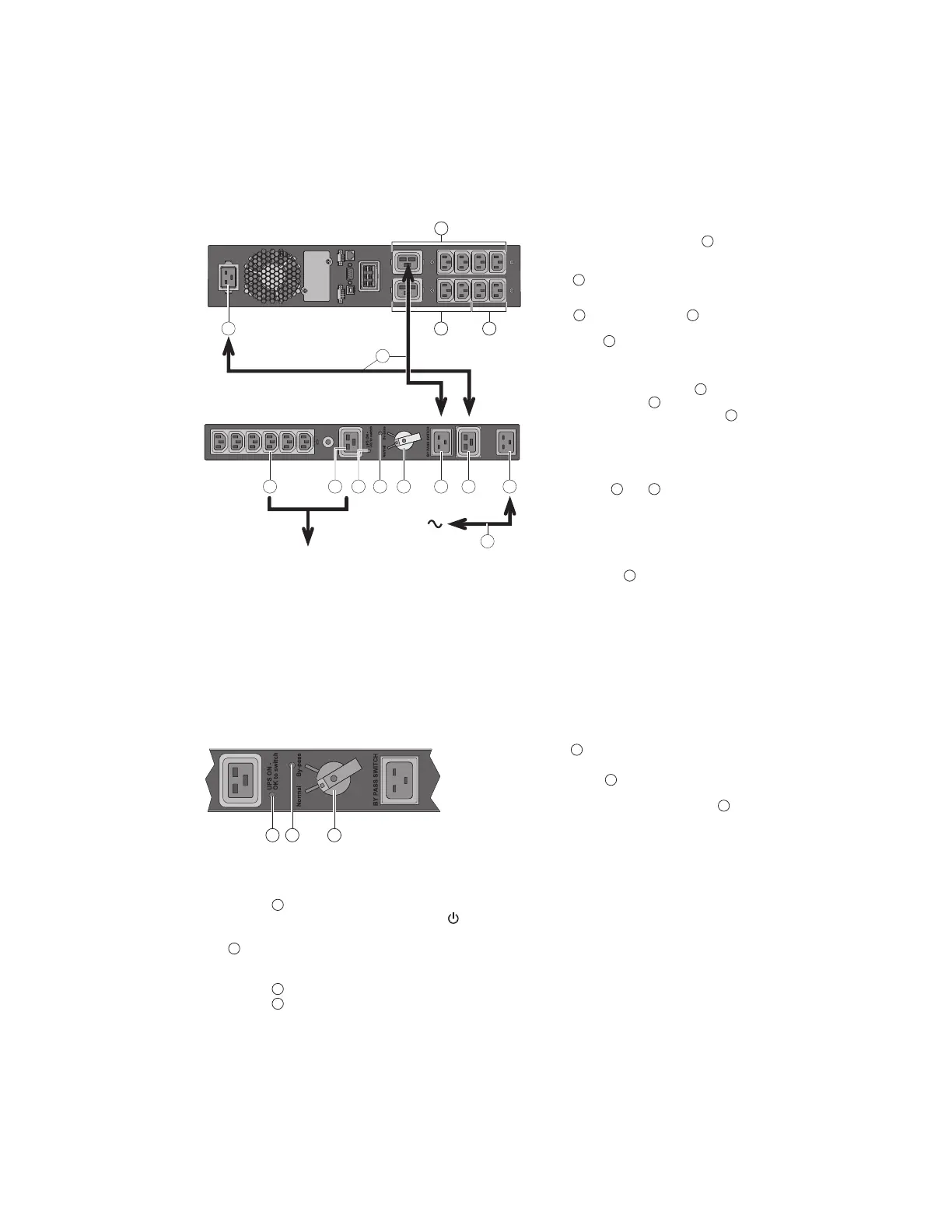

33..88 CCoonnnneeccttiioonn wwiitthh aa HHoottsswwaapp MMBBPP MMoodduullee (( OOppttiioonnaall AAcccceessssoorryy))
The HotSwap MBP module makes it possible to service or even replace the UPS without affecting t
he connected
loads (HotSwap function).
1
HotSwap MBP
LOAD
29 30 3331 34 35 36
15
28
32
6 7
5
9PX 2200IRT / 9PX 3000IRT:
1. Connect the input socket
36
on
the HotSwap MBP module to the
AC-power source using the cable
15
supplied.
2. Connect the UPS input socket
1
to the “UPS Input”
35
on the
HotSwap MBP module, using the
cable
28
supplied. These cables
and the connectors are marked
blue.
3. Connect the UPS outlet
5
to the
“UPS Output”
34
on the HotSwap
MBP module, using the cable
28
supplied.
These cables and the connectors
are marked in red.
4. Connect the equipment to the
outlets
29
and
30
on the HotSwap
MBP module. These outlets differ,
depending on the version of the
HotSwap MBP module.
Caution. Do not use UPS outlets
to supply equipment because use
of switch
33
on the HotSwap MBP
module would cut supply to the
equipment.
9PX 1500IRT
:
An additional cable kit is required
to connect the UPS to the MBP.
Follow the same procedure as for the
9PX 2200IRT / 9PX 3000IRT using the
blue and red color markings.
HotSwap MBP module operation
32 33 31
UPS start-up with the HotSwap MBP module
1. Check that the UPS is correctly connected to the HotSwap MBP module.
2. Set switch
33
to Normal position.
3. Start the UPS by pressing the ON/OFF button
on the UPS control panel.
The load is supplied by the UPS.
LED
31
"UPS ON - OK to switch" on the HotSwap MBP module goes ON.
HotSwap MBP module test
1. Set switch
33
to Bypass position and check that the load is still supplied.
2. Set switch
33
back to Normal position.
The HotSwap MBP module has a rotary
switch
33
with two positions:
Normal the load is supplied by the UPS,
LED
31
is on.
Bypass the load is supplied directly by
the AC-power source. LED
32
is on.
Connection with a Hotswap MBP Module ( Optional Accessory)

Eaton 9PX Specifications

General

Topology	Double Conversion Online
Output Voltage	200/208/220/230/240V
Input Voltage	200-240V
Form Factor	Tower or Rackmount (depending on model)
Battery Type	Sealed Lead-Acid (SLA)
Communication Ports	USB, Serial, Relay
Display	LCD
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0 to 40°C
Humidity	0-95% non-condensing
Certifications	CE
